Summary of Contents for Dinstar DWG2000 Series
-

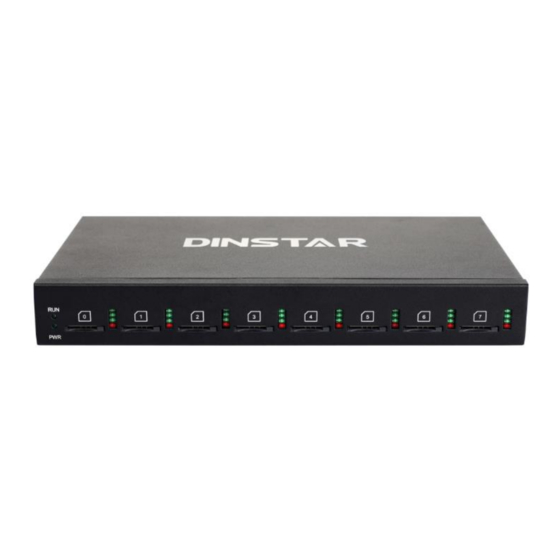

Page 1: Dwg2000 Series
DWG2000 Series GSM/CDMA/WCDMA VoIP Gateway User Manual DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015 Manual... -
Page 2: Revision Records
Revision Records Document Name GSM/CDMA/WCAMA VoIP Gateway User Manual Document version V1.0 Firmware version 02.23.11.02 Date 2015.11.12 DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015 Manual... -
Page 3: Table Of Contents
Contents DWG2000 Series ........................1 GSM/CDMA/WCDMA VoIP Gateway .................. 1 User Manual ..........................1 Revision Records ........................2 1 Product Description ......................6 1.1 Overview ..........................6 1.2 Application Scenario ......................6 1.3 Product Appearance ....................... 6 1.4 Functions and Features ......................8 1.4.1 Protocols Supported ............................ - Page 4 4.5.2 RTP ................................16 4.5.3 SIP Call History ............................. 16 4.5.4 IP to GSM Call History..........................17 4.5.5 CDR Report ..............................17 4.5.6 Lock BCCH Report ............................17 4.5.7 Current Call Status ............................18 4.5.8 GSM Event ..............................18 4.6 Network Configuration ......................18 4.6.1 Working Mode of Network ..........................
- Page 5 4.11 Manipulation Configuration ....................36 4.11.1 Configuration Procedures for Manipulating IP –> Tel Destination Numbers..........36 4.12 Operation .......................... 38 4.12.1 Configuration Procedures for IP -> Tel Operation..................38 4.12.2 Configuration Procedures for Tel -> IP Operation..................39 4.13 Port Group Configuration ....................40 4.14 IP Trunk Configuration ......................
-
Page 6: Product Description
Product Description 1.1 Overview The DWG2000 gateway is multi-functional VoIP gateway based on IP and mobile network (GSM/CDMA/WCDMA), which provides flexible network configuration, powerful features, and good voice quality. With a cost-effective solution, the gateways works is very applicable to carriers, enterprise, SOHO as well as residential users. - Page 7 Table 1-3-1 Description of Front view Indicators Description On: Starting Off: Abnormal Blinking every 0.5s: Normal status On: Power on Off: Power off Signal Signal strength indicators with green color Channel Use/Unuse indicator with Red color, ON is used, Off is unused SIM Slots SIM card slot...
-
Page 8: Functions And Features
Power Power connector of DC power. Input: DC12V Connector Antenna Mark as digits 0 to 7 Connector Network FE0 and FE1, its default IP address 192.168.11.1 Console RS232 standard, band rate 115200bps Reset button to restore default IP and password or restore factory setting. -
Page 9: Industrial Standards Supported
Open API for Bulk SMS Support USSD Echo Cancellation (with ITU-T G.168/165 standard) Automatic Negotiation Network Hotline BCCH Management\ 1.4.3 Industrial Standards Supported Stationary Use Environment: EN 300 019: Class 3.1 Storage Environment: EN 300 019: Class 1.2 ... -
Page 10: Quick Installation
Quick Installation 2.1 Attentions before Installation Please pay attention to the following before you install DWG2000EFG include: DC/AC power should be grounded well to ensure reliability and stability； Network interface should be standard RJ45 with 10Mbps or 100Mbps interfaces； ... -
Page 11: Basic Operation
Basic Operation 3.1 Feature Codes Users can do some basic system setting via dialing feature codes through a telephone. The DWG2000 has a built-in IVR navigator for local maintenance. In each step, if you hear an IVR message of “setting succeeds”, it means you have finished this step successfully. However, if you hear “setting fails”, please check and redo that step. -
Page 12: Restore Factory Setting
3.2.4 Restore factory setting Press RST button for about 7 seconds, then gateway will be rebooted and restored to factory setting. 3.3 Local Maintenance through Console Port To ensure easy maintenance, the device provides a standard RS232 console port, which has a Baud DWG2000 rate of 115200bps. -
Page 13: Configurations On Web Interface
console port. The username and password are the same with those of the web interface of DWG2000 Commands for configuring the IP address of DWG2000 (In the following example, IP address of needs to be configured as 172.30.66.100, and netmask DWG2000 is 255.255.0.0) >... -
Page 14: Introduction To Web System
Step 2. Enter username and password and then click OK in the login GUI. Both the default username and password are ‘admin’. It’s strongly recommended to change the default password to a new one for system security consideration. 4.2 Introduction to Web System The web management system of the DWG2000 gateway consists of the navigation tree and detailed configuration interfaces. -
Page 15: Configuration Wizard
4.3 Configuration Wizard To ensure a call can be connected, you should do configurations according to the following wizard. Add IP Trunk Add Routing Add Operation Manipulate Number(Optional) 4.4 System Information Click System Information in the navigation tree, and you can see basic information of the gateway, including running information, mobile information and SIP information. -
Page 16: Statistics
4.5 Statistics 4.5.1 TCP/UDP On the Statistic TCP/UDP interface, the number of the sent packages over TCP/UDP and the number of the received packages over TCP/UDP are displayed. If you click the Refresh button and the numbers change, it means the communication is normal. 4.5.2 RTP On the Statistic RTP interface, the data packages related to RTP (Real-time Transport... -
Page 17: Ip To Gsm Call History
4.5.4 IP to GSM Call History the Statistic IP to GSM Call History interface, history of IP GSM calls is displayed. 4.5.5 CDR Report Statistic CDR Report interface, details of all calls through the ports of the DWG2000 gateway On the are displayed. -
Page 18: Current Call Status
4.5.7 Current Call Status On the Statistics Current Call Status interface, status and detail of the current call are shown. 4.5.8 GSM Event On the Statistics GSM Event interface, the historic events such as register of any GSM port of the DWG2000 gateway can be queried. -
Page 19: How To Configure Network Parameters
Static IP Address: Static IP address is a static IP address which is assigned by Internet Service Provider (ISP) and remains associated with a single computer over an extended period of time. This differs from a dynamic IP address, which is assigned ad hoc at the start of each session, normally changing from one session to the next. PPPoE: PPPoE is an acronym for point-to-point protocol over Ethernet, which relies on two widely accepted standards: PPP and Ethernet. -
Page 20: Arp
If you choose PPPoE, you need to fill in the account, password and service name, which are provided by telecom operator. ‘Obtain IP address automatically’, you do not need to fill in any information. If you choose 4.6.4 ARP The ARP (Address Resolution Protocol) function is mainly used to query or add the mapping relationship between an IP address and a MAC address. -
Page 21: Security Center
Parameters Description Server The IP address or domain name of VPN Server (support PPTP only) Account The account provided by VPN server or VPN provider Password The authentication password provided by VPN provider Domain It is a VPN setting which can be null The parameter is used for encryption. -
Page 22: Mobile Configuration
4.8 Mobile Configuration 4.8.1 Basic Configuration Introduction to API The API protocol is used for external applications (for instance: SMS Server) to control the sending and receiving of SMS/USSD on the gateway. To enable the API function of the DWG2000 gateway, the IP address, port, user ID and password of SMS Sever must be correctly configured, and the TCP Intercept function of the SMS Server must be enabled. - Page 23 The API Server Address, API Server Port, User ID and API User Password on the above interface of DWG2000 must be the same with the IP Address, Port, Auth ID and Password on the setting interface of SMS Server. Introduction to GSM Audio Coding There are eight formats for GSM Audio Coding, including Auto, FR, HR, EFR, AMR_FR, AMR_HR, FR and EFR, EFR and FR.
-
Page 24: Mobile Configuration
4.8.2 Mobile Configuration Parameter Description CLIR Calling Line Identification Restriction: If the CLIR function is enabled, the phone number of the caller will not be displayed on the called phone. Detect Reverse Polarity If the function is enabled, the caller will learn whether the called person has got through the phone. -
Page 25: Pin Management
4.8.4 PIN Management PIN code is a combination of numbers used as an additional password to access the SIM card of the selected port. On the following interface, you can set a PIN code for the SIM card of the selected port. 4.8.5 IMEI DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015... -
Page 26: Carrier
4.8.6 Carrier On the Mobile Configuration Carrier interface, if Automatic is selected, the DWG2000 device will automatically identify the carrier which the inserted SIM card belongs to. If Manual is selected, you need to choose a carrier in the drop-down box. 4.8.7 BCCH BCCH (Broadcast Control Channel): BCCH... - Page 27 Default: All frequencies will be automatically matched with the gateway. Fixed: You are required to set three fixed frequencies, and the frequencies will be matched with the gateway permanently Random: you are required to set some conditions, including minimum signal strength, the period for automatic frequency switch, and whether to switch frequency during calling.
-
Page 28: Call Forwarding
seizure ratio(ASR), number of calls and number of failed calls. Note: When the actual number of failed calls reaches the set number, frequencies will be switched or when the actual answer-seizure ratio is less than the minimum answer-seizure ratio, frequencies will be switched. Step 5. -
Page 29: Call Waiting
Parameter Explanation Call Unconditional Calls will be forwarded unconditionally Call Forwarding No Reply If there is no reply from the called number, calls will be forwarded. Call Forwarding Busy If the called number is busy, calls will be forwarded. Call Forward on Not Reachable If the called number is not reachable (for example, the called phone is power off), calls will be forwarded. -
Page 30: Cloud Server
Item Description Local Local SIM is the most common mode used by many of users. SIM Box SIM Box is a small box where SIM cards can be placed. It’s ideal for users who want to change SIM cards frequently. SIM Bank SIM Bank is also used to accommodate SIM cards. -
Page 31: Sms And Ussd
Secondary Server Domain The domain name of IP address of the secondary Cloud server. It can be null. Secondary Server Port The port of the secondary Cloud server. It can be null. Domain Name The name of the sub-domain used by the gateway under the Could server. Password The password of the sub-domain used by the gateway under the Could server. -
Page 32: Sms Send Limit Settings
4.9.3 SMS Send Limit Settings On the SMS Limit Settings interface, click Add, and you can see the following interface. 4.9.4 Send SMS The DWG2000 can be used to send messages and receive massages. DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015 Manual... -
Page 33: Sms Outbox
Parameter Explanation Port The port through which SMS messages are sent The number(s) where the SMS message will be sent. UCS2 UCS2: Support English and Chinese GSM 7bit: Support English only Message The content of the message 4.9.5 SMS Outbox On the SMS Outbox interface, you can see the detailed information of each SMS message that has been sent, and can export the messages. -
Page 34: Ussd
4.9.7 USSD USSD (Unstructured Supplementary Service Data): is a service which is provided by a telecom operator and allows GSM/WCDMA mobile phones to interact with the telecom operator's computers. USSD messages travel over GSM/WCDMA signaling channels and are used to query information and trigger services. Unlike similar services (SMS and MMS), which are stored and forwarded, USSD is session-based. -
Page 35: Ip Tel Routing
4.10.2 IP Tel Routing On the IP Tel Routing interface, click Add to add an IP Tel routing. Parameter Description Index The index of the routing Description You can enter any description you want Source Prefix The prefix of the source number; when it’s found that the source number includes the prefix, this routing will be selected. -
Page 36: Tel Ip Routing
4.10.3 Tel IP Routing On the Tel IP Routing interface, click Add to add an Tel IP routing. 4.11 Manipulation Configuration Number manipulation refers to the change of the destination number during the IP Tel calling process, the change of the source number during the Tel... - Page 37 Parameter Explanation You can choose any one from 0 – 31, but an index cannot be used repeatedly. Index Description You can enter any description you want. Source Prefix The prefix of the source number The source IP in the Operation IP – Tel Operation interface Source Destination Prefix The prefix of the destination number...
-
Page 38: Operation
Prefix/Suffix to Add and Number of Digits to Leave from Right) are the rules to change numbers. Step 3. Click OK 4.12 Operation The Operation function is used to control outgoing calls and incoming calls. It can determine whether a call is allowed or forbidden. -
Page 39: Configuration Procedures For Tel -> Ip Operation
Source Prefix The prefix of the source number. When a source number includes this prefix, the operation will be executed. Source IP The IP, IP Group or SIP Server linked to the operation. Destination Prefix The prefix of the destination number. When a destination number includes this prefix, the operation will be executed. -
Page 40: Port Group Configuration
Parameter Explanation Index The index of the operation Source Prefix The prefix of the source number. When a source number includes this prefix, the operation will be executed. Source Port A port or port group linked to the operation. Destination Prefix The prefix of the destination number. -
Page 41: Configuration Of Ip Trunk Group
be displayed. Step 2. Click the Add button to configure IP Trunk. Parameter Explanation You can choose any one from 0 – 31, but indexes of different IP trunk cannot Index be the same. The IP address of the device (for example: DAG) connected to the DWG2000. Port The port of the device (for example: DAG), through which the DWG2000 is connected to the device. -
Page 42: System Configuration
Step 2. Click on the left of the IP trunks which you intend to include into the IP trunk group. (You need to select more than one IP trunks) Step 3. Click OK on the interface. Step 4. If you need to delete or modify the IP trunk group, click the on the left of the IP Trunk, and then click Delete or Modify. -
Page 43: Balance Check
The ‘set call volume threshold function’ is mainly used for anti blocked (such as some operators launched special call testing for the detection of the VoIP equipment, call volume may is mute or great noise) . 4.16.3 Balance Check On the Balance Check interface, you can check the balance of a SIM card. DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015 Manual... -
Page 44: Billing Settings
4.16.4 Billing Settings 4.16.5 Exception Event Handing 4.16.6 Auto Generation DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015 Manual... -
Page 45: Tools
4.17 Tools 4.17.1 Firmware Upload On the Tools Firmware Upload, you can upload a firmware to upgrade the DWG2000. But you need to restart the DWG2000 device for the change to take effect. 4.17.2 Provision On the Tools Provision interface, you can carry out some configurations to make the DWG2000 automatically upgrade with the latest firmware stored on a http server, ftp server or a ftp server. - Page 46 Note: The url is ftp://172.16.77.200/home/36 and product id is 36 in the above file. Step 6. Put the following files in the “36” folder. (Except the “default” file, other files are provided by DINSTAR.) DWG2000 GSM/CDMA/WCDMA User Copyright @ 2015 Manual...
-
Page 47: Configuration On Dwg2000
Configuration on DWG2000 Step 1. Log into the Web Management System of the DWG2000. Step 2. On the navigation tree on the left, click Tools Provision, and the following interface will be displayed. Parameter Explanation The URL of the ftp server, for example, ftp://172.16.77.200/home Check Interval: The interval to check where there is a new... -
Page 48: Management Parameter
4.17.4 Management Parameter On the Tools Management Parameter interface, the NTP (Network Time Protocol) can be enabled. If the function is enabled, the DWG2000 can automatically adjust the real time according to the NTP address and its time zone 4.17.5 Config Backup On the Tools ... -
Page 49: Ivr Voice Prompt Upload
4.17.7 IVR Voice Prompt Upload On the Tools IVR Voice Prompt Upload interface, you can upload an IVR prompt or set a default IVR prompt for PSTN incoming calls. 4.17.8 Ping Test On the Tools Ping Test interface, you can use Ping to check whether the network is working or not. 4.17.9 Tracert Test On the Tools Tracert Test interface, you can check the routes of the tracert destination. -
Page 50: Username & Password
4.17.11 Username & Password If you want to change the username or password of the DWG2000 device, click Tools Username & Password. You are required to enter old username and password before inputting new username and password. 4.17.12 Factory Reset On the Tools ...
