internal programming jumper

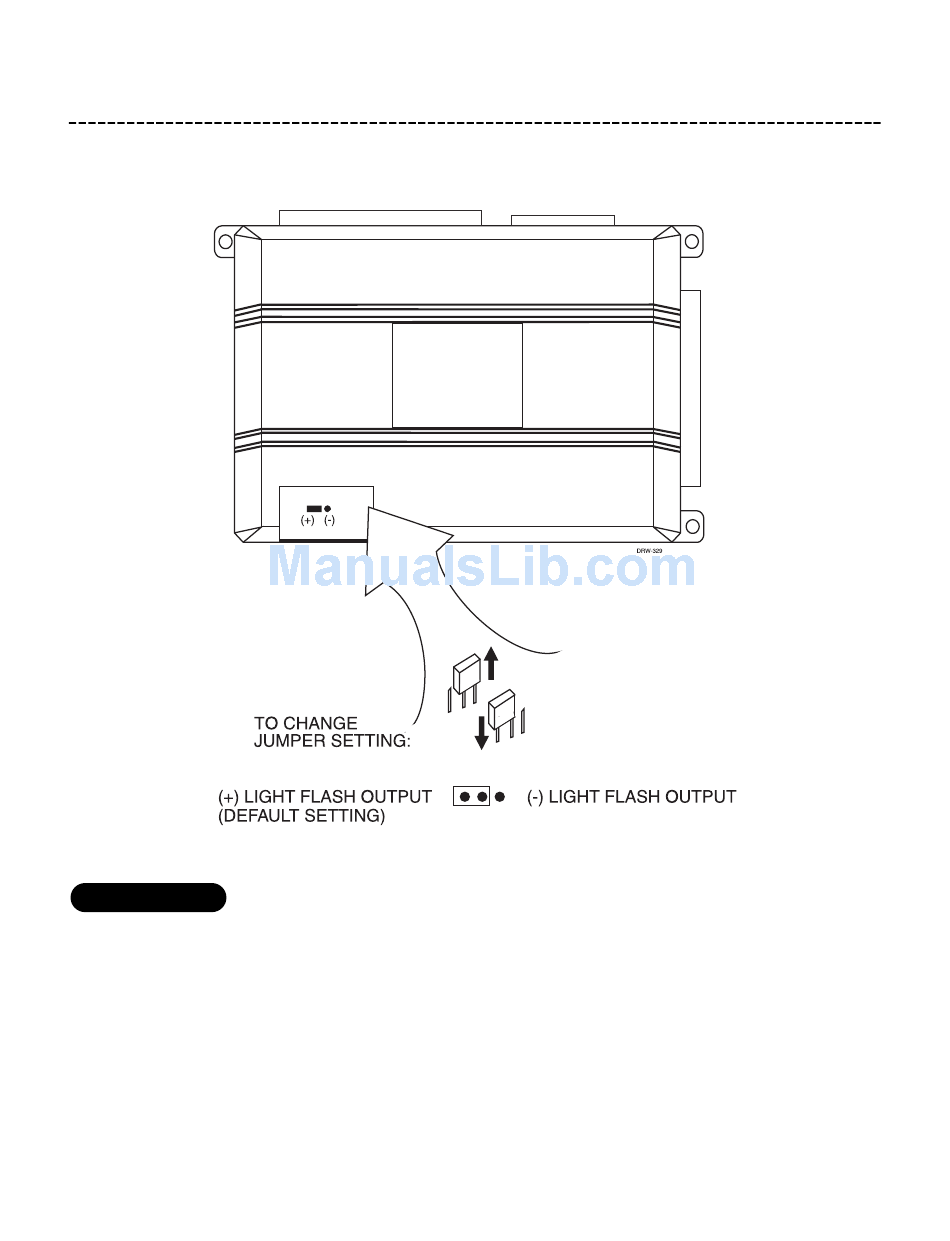

light flash jumper
This jumper is used to determine the light flash output. In the (+) position, the on-board relay is enabled and
the unit will output (+)12V on the H1/2 WHITE wire. In the (-) position, the on-board relay is disabled. The H1/2
WHITE wire, will supply a (-) 200mA output suitable for driving factory parking light relays.
23
© 2001 Directed Electronics, Inc. Vista, CA
