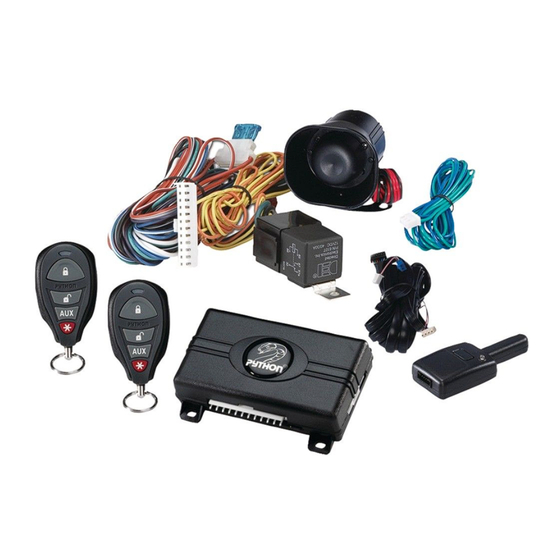

Car Alarm Python 460 Max (3105P) One Way
one-way alarm Python 460 Max
throughout Ukraine with payment upon receipt!
winauto.ua
Car Chemicals and Power Supply - Sale -
(044)361-05-06
(067)469-02-12
(099)048-99-03
(093)672-77-76
(3105P). Delivery in Kyiv and
ICQ:495-089-192
ICQ:613-211-859
Advertisement
Table of Contents
Related Manuals for Directed Electronics 3105P
Summary of Contents for Directed Electronics 3105P
- Page 1 (067)469-02-12 ICQ:613-211-859 (099)048-99-03 (093)672-77-76 User's Manual Car Alarm Python 460 Max (3105P) One Way In the online store Winauto you also can buy one-way alarm Python 460 Max (3105P). Delivery in Kyiv and throughout Ukraine with payment upon receipt! winauto.ua...
- Page 2 Online-store car audio and autogoods Winauto 460MAX Owner’s Guide...
- Page 3 Online-store car audio and autogoods Winauto...
-
Page 4: Table Of Contents
Online-store car audio and autogoods Winauto Contents What is included ..................2 Standard transmitter configuration .............. 2 Three-button transmitter configuration ..........3 Important information ................4 System maintenance ................. 4 Your warranty.................. 5 Transmitter functions ................. 6 Standard configuration ..............6 Three-button configuration .............. -
Page 5: What Is Included
Online-store car audio and autogoods Winauto What is included • One control module • A pair of four button transmitters, (p/n 7142P) • A Stinger® Doubleguard® dual-stage shock sensor (on-board the control module) • Control Center with integrated status LED and valet override switch (p/n 6111T) •... -
Page 6: Three-Button Transmitter Configuration
Online-store car audio and autogoods Winauto ➢ Three-button transmitter configuration* controls the Arm/Disarm function. controls the Panic function. controls Silent Mode™ and an Auxiliary Output. together control an Auxiliary Output. ������� *Optional three-button transmitter (not included). © 2 0 0 8 D i re ct ed E l e ct r o ni c s - A l l r i g ht s re s e rv e d. -
Page 7: Important Information
Online-store car audio and autogoods Winauto Important information Congratulations on the purchase of your state-of-the-art vehicle se- cu ri ty system. This system has been designed to provide years of trouble-free op er a tion. Due to the complexity of this system, it must be installed by an authorized dealer only. -
Page 8: Your Warranty
Online-store car audio and autogoods Winauto ➢ Your warranty Your warranty registration must be returned and the bar code se- rial number must not be removed. If the warranty registration is not returned, you do not have a warranty. It is also necessary to keep your proof of purchase, which reflects that the product was installed by an au tho rized dealer. -
Page 9: Transmitter Functions
Online-store car audio and autogoods Winauto Transmitter functions The system uses a computer-based learn routine to learn the trans- mit ter buttons. This makes it possible to assign any transmitter button to any system function. The transmitter initially comes programmed with Standard Confguration, but may also be customized by an authorized dealer. -
Page 10: Three-Button Configuration
Online-store car audio and autogoods Winauto Button The panic feature is controlled by pressing this button for two seconds. Buttons An optional auxiliary convenience or expansion function that you have added to your system can be activated by pressing these �������... -
Page 11: Using Your System
Online-store car audio and autogoods Winauto Using your system The buttons used in the instructions in this manual correspond to the standard con fg u ra tion. Remember, this is not the only way your trans mit ter may be set up. It can be custom confgured to meet your needs. - Page 12 Online-store car audio and autogoods Winauto If any protected entry point (such as a door or a switch-protected trunk or hood) is open, the system will not passively arm (unless forced passive arming is programmed on). See Pro gram ming Op- tions section of this guide.
-
Page 13: Multi-Level Security Arming
Online-store car audio and autogoods Winauto ➢ Multi-level security arming The Multi-Level Security Arming feature is available with the four- button transmitter only. Multi-Level Security Arming allows you to select which of the se- curity system’s inputs or sensors are to be active and which are to be bypassed, when arming the system. -
Page 14: Arming While Driving
Online-store car audio and autogoods Winauto ignition, are now bypassed. • Hold down the to begin the Multi-Level Security Arming cycle over again. Note: Multi-Level Security Arming only applies to a single arming cycle. Once the system is disarmed and then re-armed, all the �������... -
Page 15: Disarming
Online-store car audio and autogoods Winauto ➢ Disarming To disarm the system, press . You will hear two chirps, and the parking lights will flash twice. If the power locks are connected to the system, the doors will unlock. If the siren chirps either four or fve times when disarming, refer to the Diagnostics section of this �������... -
Page 16: Disarming Without A Transmitter
Online-store car audio and autogoods Winauto ➢ Disarming without a transmitter This feature allows you to disarm the security sys tem without the remote trans mit ter should it be lost, dam aged, or disabled. In order to dis arm the system with out a remote transmitter, you must have the ve hi cle’s ig ni tion key and know where the Valet switch is located. -
Page 17: Silent Mode
Online-store car audio and autogoods Winauto ➢ Silent mode To temporarily turn off the arm or disarm chirps, use Silent Mode™. Press for less than one second before arming or disarming, ������� and the confrmation chirp(s) will be eliminated for that one op er- a tion only. -
Page 18: Nuisance Prevention Circuitry
Online-store car audio and autogoods Winauto To enter or exit Valet Mode: Turn the ignition on. Turn the ignition off. Press and release the Valet switch within 10 seconds. The status LED lights solidly if you are en ter ing Valet Mode, and goes out if you are exiting Valet Mode. - Page 19 Online-store car audio and autogoods Winauto If the bypassed sensor tries to trigger the system while it is being bypassed, the 60-minute bypass period will start over. This en- sures that a sensor that continually triggers will remain bypassed. Doors are covered by NPC differently; if the alarm is triggered by an open door for three full cycles, the doors will be bypassed until the trigger ceases.
-
Page 20: Diagnostics
Online-store car audio and autogoods Winauto Diagnostics The microprocessor at the heart of your security system is constant- ly mon i tor ing all of the switches and sensors that are connected to it. It detects any faulty switches and sensors and prevents them from disabling the entire system. -
Page 21: Disarming Diagnostics
Online-store car audio and autogoods Winauto ➢ Disarming diagnostics Extra disarm chirps are the Tamper Alert. If four chirps are heard when disarming, the system was triggered in your absence. If fve chirps are heard, a zone was triggered so many times that Nui sance Prevention Circuitry has bypassed that zone. -
Page 22: Table Of Zones
Online-store car audio and autogoods Winauto ➢ Table of zones The zone number is the number of LED flashes used by the system to identify that input. The standard input assignments are listed below, along with spaces to write in any optional sensors or switches you have had installed. -
Page 23: Code Hopping
Online-store car audio and autogoods Winauto Code hopping The receiver and transmitters each use mathematical formulas called al go rithms to change their codes each time the transmit- ter is used. This technology has been developed to increase the security of the unit. The control unit knows what the next codes should be. -
Page 24: High Frequency
Online-store car audio and autogoods Winauto High frequency Your system transmits and receives at 434 MHz, using a super- hetrodyne XR+ receiver. This provides a cleaner spec trum with less interference and a more stable signal. Enjoy a phe nom e nal increase in range –... -
Page 25: Rapid Resume Logic
Online-store car audio and autogoods Winauto Rapid resume logic This Directed system will store its current state to non-volatile mem- ory. If power is lost and then reconnected, the system will recall the stored state from memory. This means if the unit is in Valet Mode and the battery is dis con nect ed for any reason, such as servicing the car, when the battery is re con nect ed the unit will still be in Valet Mode. -
Page 26: Programming Options
Online-store car audio and autogoods Winauto Programming options Programming options control what your system does during nor- mal op er a tion, and require few or no additional parts. However, some may require additional in stal la tion labor. The following is a list of the program settings, with the factory settings in Bold: •... - Page 27 Online-store car audio and autogoods Winauto en abled/dis abled with the ig ni tion on: Some • Panic mode states have laws against siren ca pa bil i ty in a mov ing ve- hicle. on or off: If your system is programmed •...
- Page 28 Online-store car audio and autogoods Winauto • Comfort closure: To close the vehicles windows after remote locking. Can only be used on cars with the capability of closing windows (and on some cars the sunroof) with the key cylinder in the door. •...
-
Page 29: Additional Options
Online-store car audio and autogoods Winauto • Siren tones and chirp volume: The output of the Revenger ® Soft Chirp siren consists of six different tones in sequence. ® Any of these tones can be elim i nat ed by your dealer, re sult- ing in a unique, easily iden ti f able siren sound. -
Page 30: Vehicle Recovery System (Vrs)
Online-store car audio and autogoods Winauto Vehicle Recovery System (VRS) The optional VRS feature is designed to en sure that any un au- ® tho rized user of your vehicle (even if using your keys and remote control) will not be able to per ma nent ly separate you from your vehicle. -
Page 31: Arming The Vrs
Online-store car audio and autogoods Winauto ➢ Arming the VRS To arm the VRS , turn the ignition to the ON position and press the ® arm button on the remote transmitter for one second. The parking lights will flash and the siren will chirp once. This can be done before driving or while driving the vehicle. -
Page 32: Triggered Sequence
Online-store car audio and autogoods Winauto ➢ Triggered sequence Fif teen seconds after the last door has closed, the sys tem’s status LED will begin flashing. This delay is intended to allow you time to distance your self from your ve hi cle in the event of a carjacking. Forty-five seconds later, the siren begins chirping and the park ing lights begin flashing. -
Page 33: Disarming The Vrs
Online-store car audio and autogoods Winauto ➢ Disarming the VRS Take the time to familiarize yourself with the VRS trig ger ing se- ® quence and the disarm pro ce dure. It is important to recognize and identify the VRS trigger sequence and know how to disarm it in case of ac ci den tal activation. -
Page 34: Glossary Of Terms
Online-store car audio and autogoods Winauto Glossary of terms Control Unit: The “brain” of your system. Usually hidden un- der the dash area of the vehicle. It houses the microprocessor which monitors your vehicle and controls all of the system’s functions. - Page 35 Online-store car audio and autogoods Winauto Siren: Noise generating device usually installed in the engine com part ment of the vehicle. It is responsible for generating the “chirps” you hear, as well as the six tones you hear while the alarm is triggered.
-
Page 36: Security & Convenience Expansions
Online-store car audio and autogoods Winauto Security & convenience expansions Listed below are some of the many expansion options avail able. Please contact your dealer for a complete explanation of all the options available to you. Audio Sensor: Metal on glass, glass cracking, and breaking glass each produce dis tinc tive acoustic signatures. - Page 37 Online-store car audio and autogoods Winauto Power Window Control: Automatic power window control is pro- vid ed with the 529T and 530T systems. Valet® Start System: For the ultimate in convenience, the Valet® start system can start your vehicle, monitor engine functions, and power your climate control system with a push of a button.
-
Page 38: Quick Reference Guide
Online-store car audio and autogoods Winauto Quick reference guide To arm using your remote You can activate, or arm, the system by pressing on your transmitter for one second. When the system arms, you will hear a short siren sound, or chirp, and the parking lights will flash once. -
Page 39: Limited Lifetime Consumer Warranty
Online-store car audio and autogoods Winauto Limited lifetime consumer warranty Directed Electronics. (“Directed”) promises to the original purchaser to repair or re- place (at Directed’s election) with a comparable reconditioned model any Directed unit (hereafter the “unit”), excluding without limitation the siren, the remote transmit-... - Page 40 Online-store car audio and autogoods Winauto THEFT, DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
- Page 41 Innovations Awards in the feld of advanced electronic tech- nology, Directed is ISO 9001 registered. ® Quality Directed Electronics products are sold and serviced throughout North America and around the world. Call (800) 274-0200 for more information about our products and ser vic es...
