it and continue to test for another wire. Once both wires have been located and the master switch has been iden-

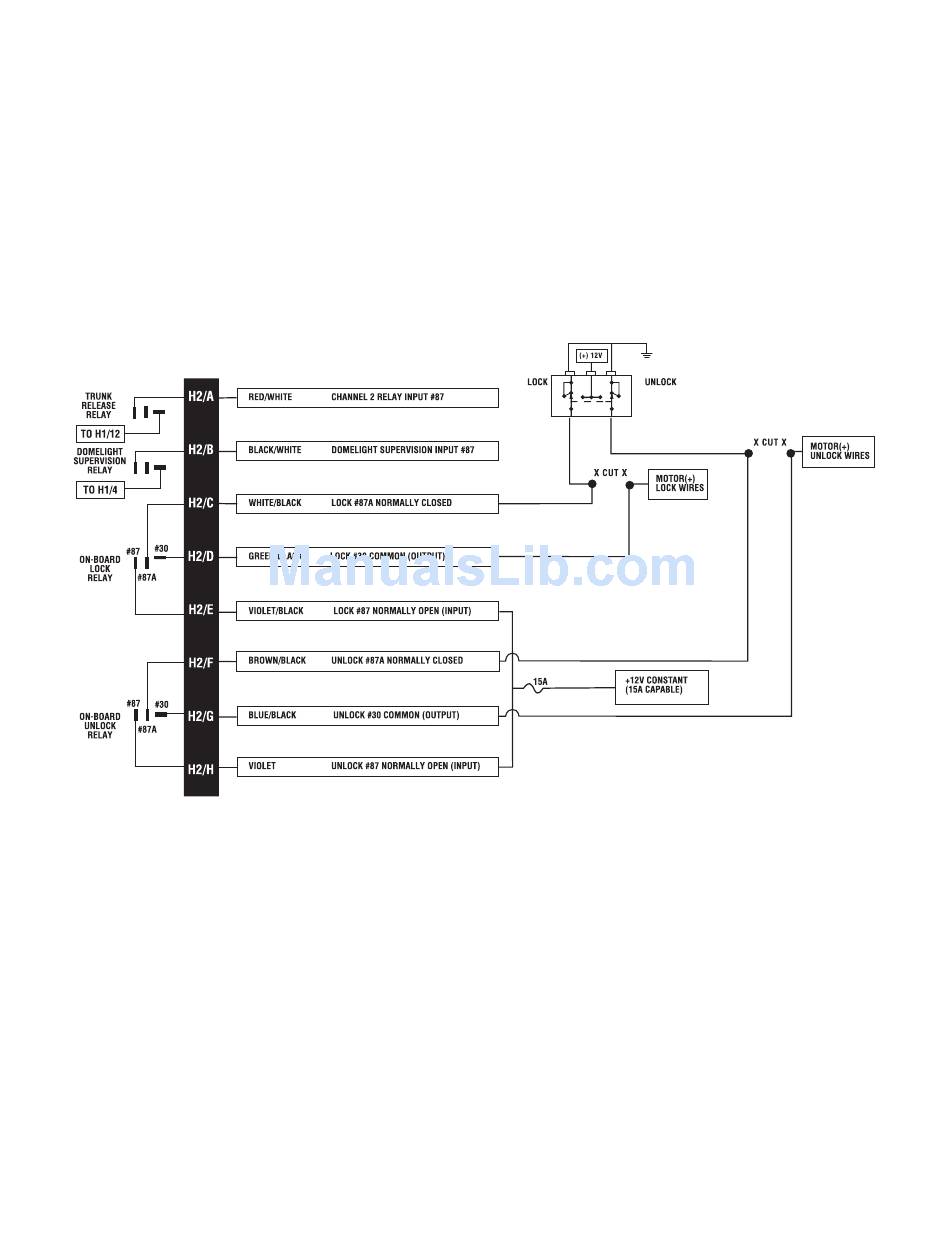

tified, cut both wires and interface as shown in the following diagram.
WARNING! If these wires are not connected properly, you will send (+)12 volts directly to (-) ground,
possibly damaging the control module or the factory switch.
IMPORTANT! The H2/A and H2/B wires are not required for wiring the door locks. For detailed wiring
instructions for these two wires, refer to the beginning of the Door Lock Harness (H2) Wire Connection
Guide section. Depending on the type of door lock system, there may be additional H2 harness wires
that are not used for wiring the door locks.
H2/C WHITE/BLACK
Once both door lock wires are located and cut, connect the white/black wire to the master switch side of the lock
wire. The master switch side will show (+)12V when the master switch is operated to the lock position and (-)
ground when the master switch is in the middle position.
H2/D GREEN/BLACK
Connect the green/black wire to the other side of the lock wire. This is the motor side of the lock wire and it
goes to the lock motor through the slave switch.
H2/E VIOLET/BLACK
This wire must be connected to a constant (+)12V source. The best connection point for this wire is the constant
(+)12 volt supply for the door lock switch*, or directly to the (+) battery post with a fuse at the battery post.
