6. OPERATION CONTROLS AND FUNCTIONS

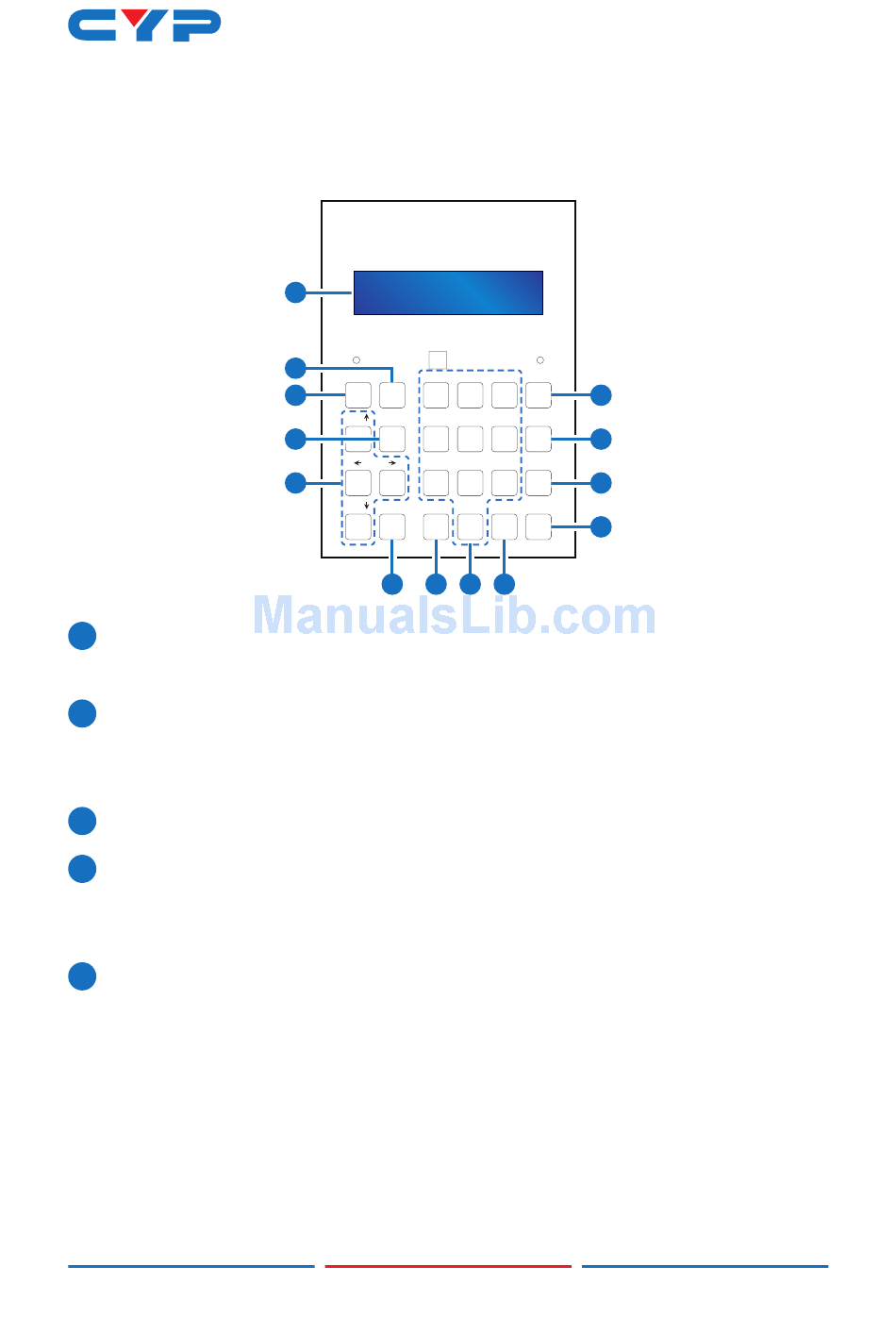

6.1 Front Panel

LCM: Displays the setting information of each input and output
1
and other setting information according to the selection.
2 POWER & LED: This LED will illuminate when the power is in standby
mode. If the LED is flashing it means the temperature inside is too
high and air circulation is highly suggested.
3 RETURN: Press this button to return back/exit the current selection.
PAGE▲▼◄►: Use these buttons to flip the LCM's page for
4
displaying the current I/O status or when entering into the menu for
detail selection.
5 MENU: Press this button to enter into the menu selections of
A. EDID
1. Auto EDID: Base on the first connected output TV/Display's
EDID from 1~32 ports.
2. Standard EDID: Use the built-in EDID which supports video
up to 1080p@60/WUXGA@60RB and audio supports LPCM
2CH.
3
1
R: STANDBY
3 FLASH: ALERT
POWER RETURN 7
2
PAGE MENU 4
5
1
4
PAGE ALL OUT/IN
6 8
8 9 LOCK
10
5 6 SAVE
11
2
3 RECALL
12
+
0 ENTER
13
7 9
