connecting to the USB Port

Use the mini Type B USB port on the front panel to connect the distribution amplifier to a host
computer to update firmware or to configure the unit with SIS commands.
1.
2.
Connect a USB A to mini B cable between the front panel USB Config port and a USB
port of the PC.
Mini Type B
USB
CONFIG
HDMI DA6

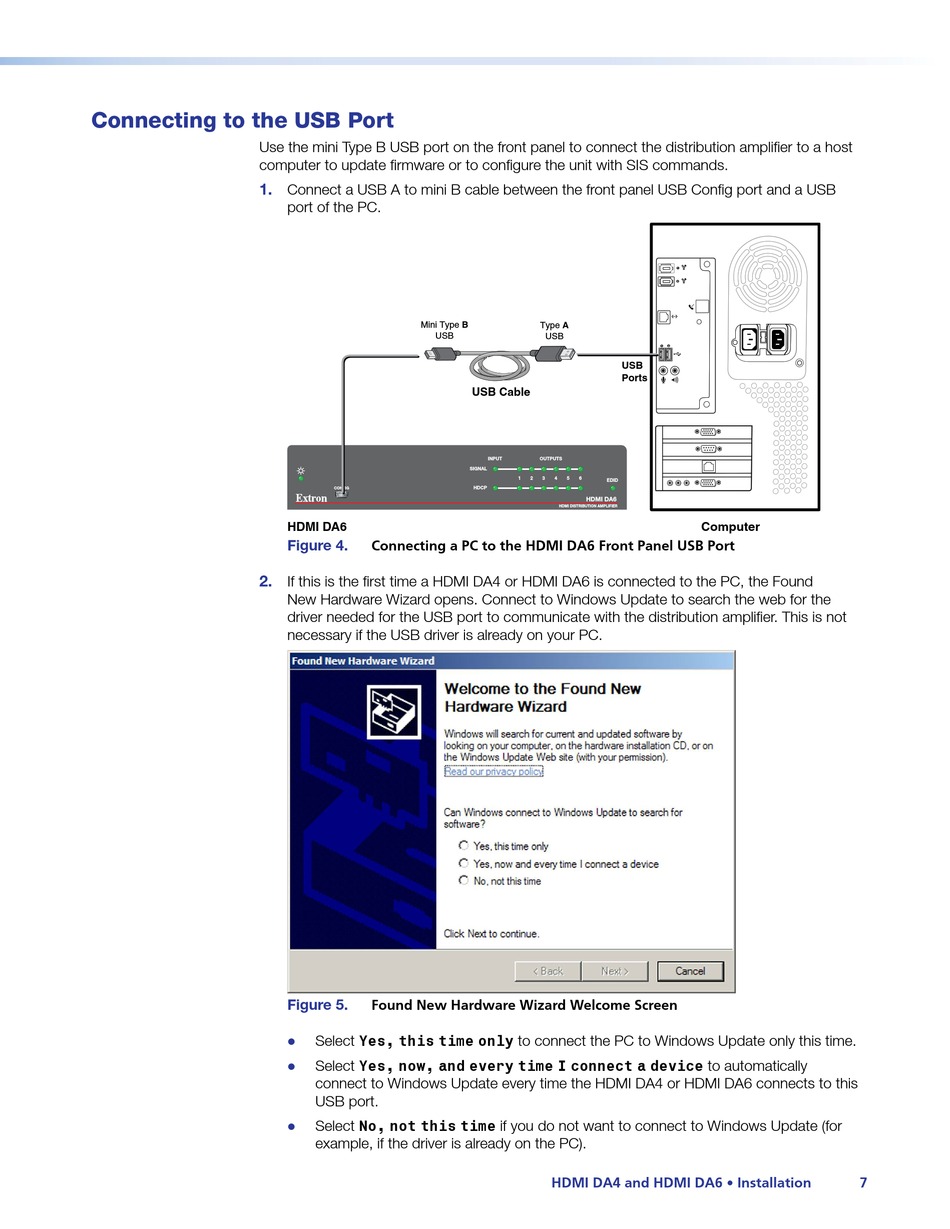

Figure 4.
Connecting a PC to the HDMI DA6 Front Panel USB Port
If this is the first time a HDMI DA4 or HDMI DA6 is connected to the PC, the Found
New Hardware Wizard opens. Connect to Windows Update to search the web for the
driver needed for the USB port to communicate with the distribution amplifier. This is not
necessary if the USB driver is already on your PC.
Figure 5.
Found New Hardware Wizard Welcome Screen
Select Yes, this time only to connect the PC to Windows Update only this time.
z
Select Yes, now, and every time I connect a device to automatically
z
connect to Windows Update every time the HDMI DA4 or HDMI DA6 connects to this
USB port.
Select No, not this time if you do not want to connect to Windows Update (for
z
example, if the driver is already on the PC).
Type A
USB
USB
Ports
USB Cable
INPUT OUTPUTS
SIGNAL
1 2 3 4 5 6
EDID
HDCP
HDMI DA6
HDMI DISTRIBUTION AMPLIFIER
HDMI DA4 and HDMI DA6 • Installation
