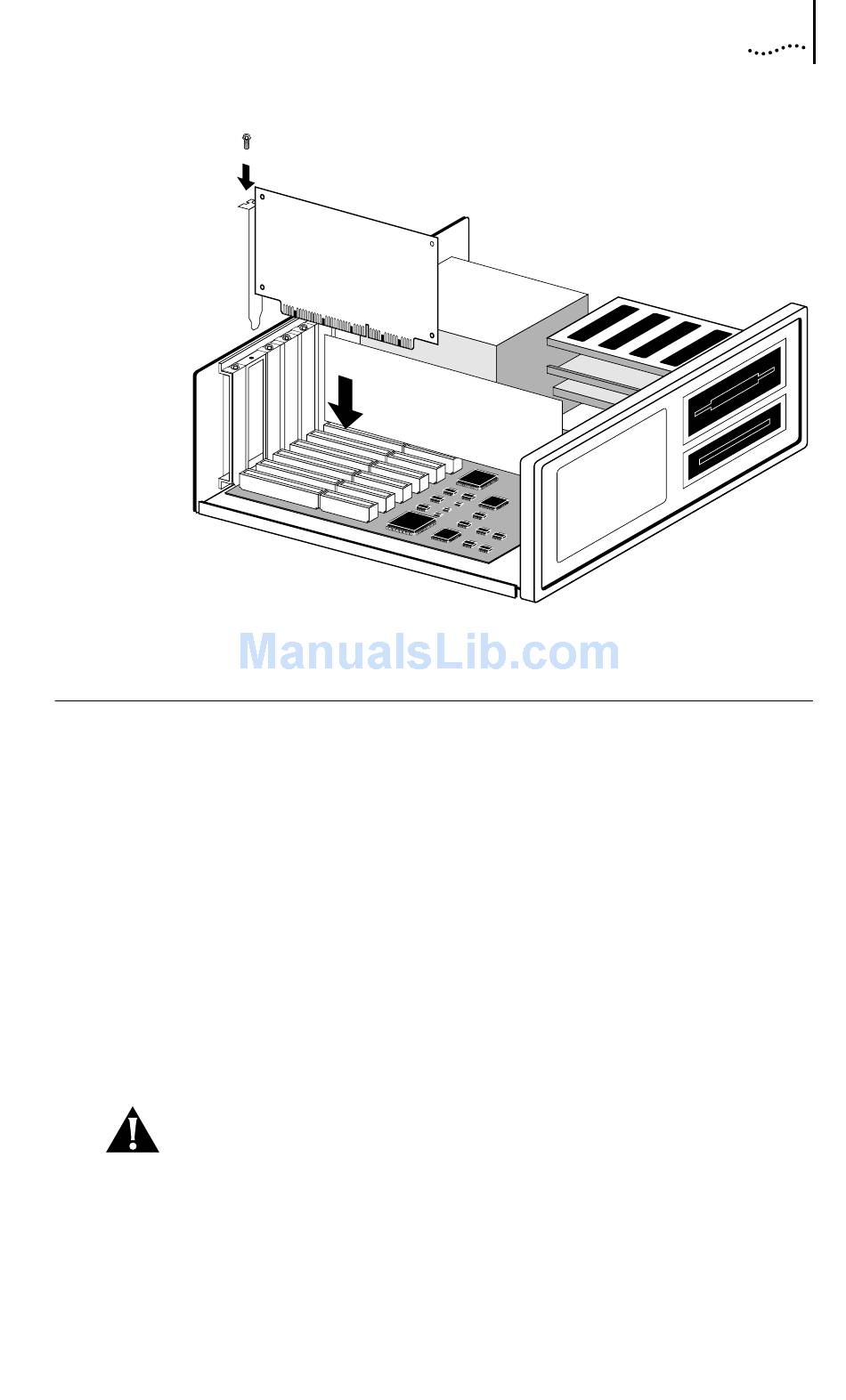

Figure 2-4 Installing the Adapter

Connecting to the Network

Connect one of the following types of network cables to the
3C619C adapter.
Type
Shielded twisted-pair (STP) cable
Unshielded twisted-pair (UTP) cable
TokenLink III adapters support industry-standard token ring
type 3 (UTP) or types 1 or 6 (STP) cabling. These types of
cable follow IEEE 802.5 specifications.
CAUTION: Make sure that you connect the cable only to the
3C619C adapter that you have just installed. Connecting the
cable to any expansion card other than the network adapter
could result in serious damage to the expansion card or the
token ring network.
Figure 2-5 and Figure 2-6 show the adapter connectors.
Connecting to the Network
Connector
DB-9
RJ-45
2-7
