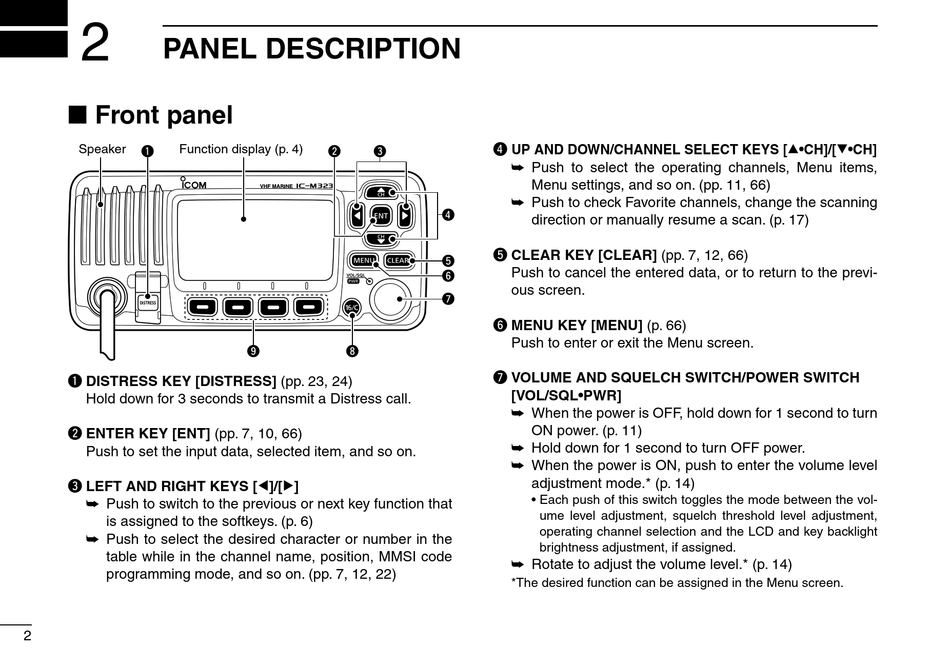

PANEL DESCRIPTION

Front panel

■
Speaker Function display (p. 4)
q
q DISTRESS KEY [DISTRESS] (pp. 23, 24)
Hold down for 3 seconds to transmit a Distress call.
w ENTER KEY [ENT] (pp. 7, 10, 66)
Push to set the input data, selected item, and so on.
e LEFT AND RIGHT KEYS [Ω]/[≈]
Push to switch to the previous or next key function that
➥
is assigned to the softkeys. (p. 6)
Push to select the desired character or number in the
➥
table while in the channel name, position, MMSI code
programming mode, and so on. (pp. 7, 12, 22)
2
w e
o i
r UP AND DOWN/CHANNEL SELECT KEYS [∫•CH]/[√•CH]
Push to select the operating channels, Menu items,
➥
Menu settings, and so on. (pp. 11, 66)
Push to check Favorite channels, change the scanning
➥
r
direction or manually resume a scan. (p. 17)
t CLEAR KEY [CLEAR] (pp. 7, 12, 66)
t
Push to cancel the entered data, or to return to the previ-
y
ous screen.
u
y MENU KEY [MENU] (p. 66)
Push to enter or exit the Menu screen.
u VOLUME AND SQUELCH SWITCH/POWER SWITCH
[VOL/SQL•PWR]
When the power is OFF, hold down for 1 second to turn
➥
ON power. (p. 11)
Hold down for 1 second to turn OFF power.
➥
When the power is ON, push to enter the volume level
➥
adjustment mode.* (p. 14)
• Each push of this switch toggles the mode between the vol-
ume level adjustment, squelch threshold level adjustment,
operating channel selection and the LCD and key backlight
brightness adjustment, if assigned.
Rotate to adjust the volume level.* (p. 14)
➥
*The desired function can be assigned in the Menu screen.
