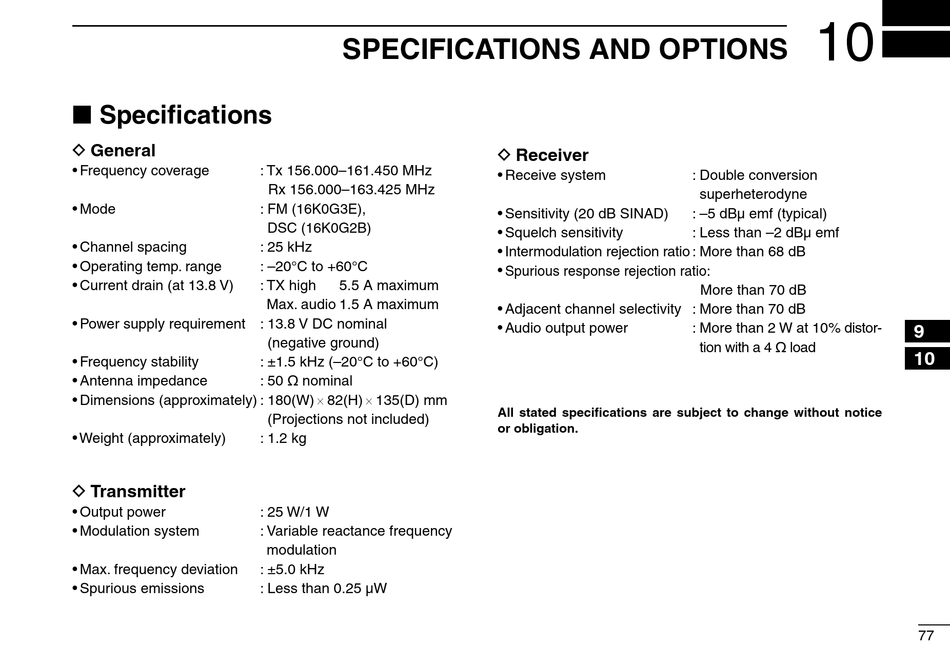

Specifications

■
D General
• Frequency coverage
• Mode
• Channel spacing
• Operating temp. range
• Current drain (at 13.8 V)
• Power supply requirement : 13.8 V DC nominal
• Frequency stability
• Antenna impedance
• Dimensions (approximately) : 180(W) × 82(H) × 135(D) mm
• Weight (approximately)
D Transmitter
• Output power
• Modulation system
• Max. frequency deviation
• Spurious emissions

SPECIFICATIONS AND OPTIONS

: Tx 156.000–161.450 MHz
Rx 156.000–163.425 MHz
: FM (16K0G3E),
DSC (16K0G2B)
: 25 kHz
: –20°C to +60°C
: TX high 5.5 A maximum
Max. audio 1.5 A maximum
(negative ground)
: ±1.5 kHz (–20°C to +60°C)
: 50 ˘ nominal
(Projections not included)
: 1.2 kg
: 25 W/1 W
: Variable reactance frequency
modulation
: ±5.0 kHz
: Less than 0.25 µW
D Receiver
• Receive system
• Sensitivity (20 dB SINAD)
• Squelch sensitivity
• Intermodulation rejection ratio : More than 68 dB
• Spurious response rejection ratio:
• Adjacent channel selectivity : More than 70 dB
• Audio output power
All stated specifications are subject to change without notice
or obligation.
10
: Double conversion
superheterodyne
: –5 dBµ emf (typical)
: Less than –2 dBµ emf
More than 70 dB
: More than 2 W at 10% distor-
tion with a 4 ˘ load
