Summary of Contents for CYP CV-401H

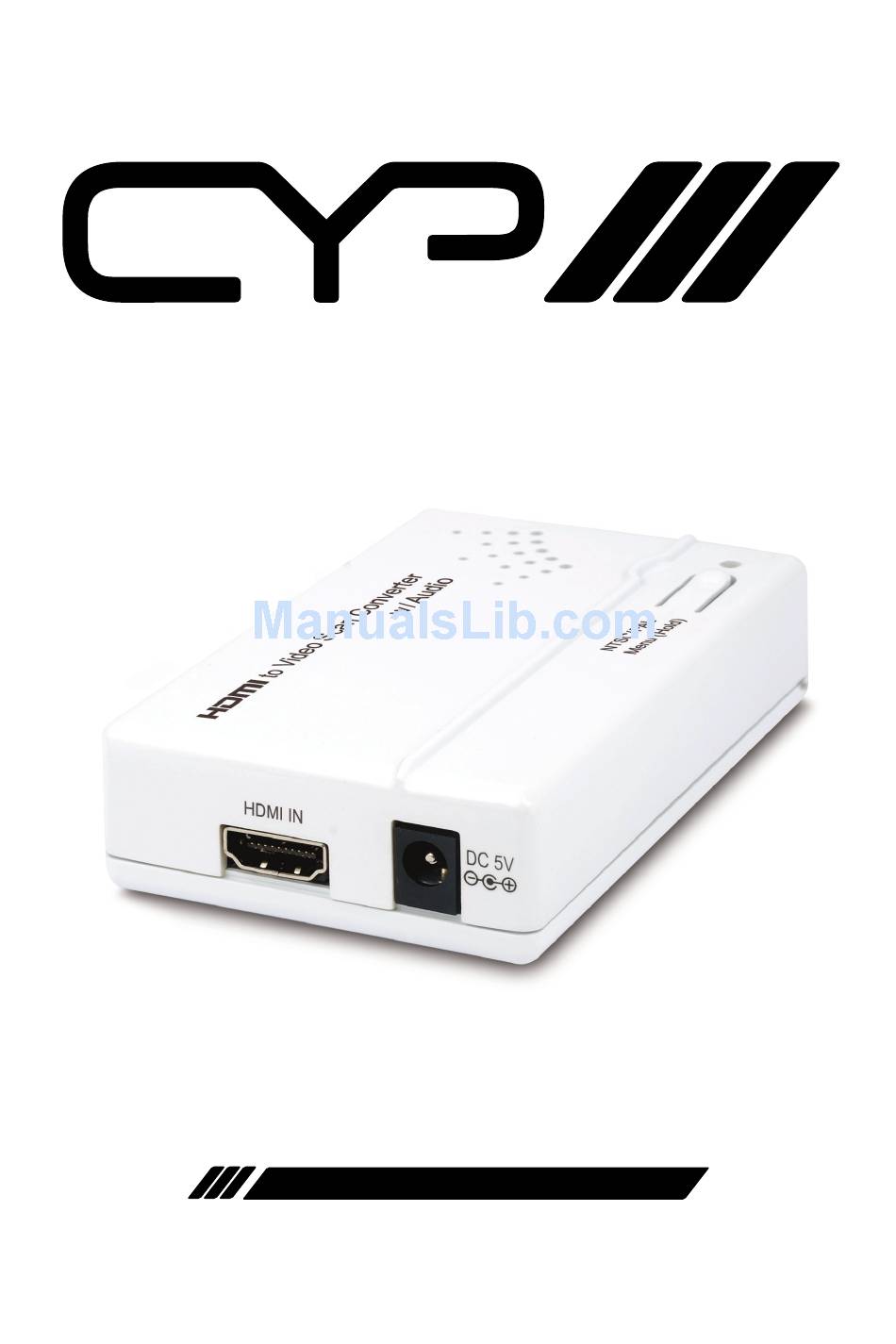

- Page 1 CV-401H HDMI to Video Scan Converter OPERATIONS MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Top Panel ............8 6.2 Left Panel ............9 6.3 Right Panel ........... 9 6.3 OSD Menu ..........10 6.4 Support Input Timing ......12 7. -
Page 6: Introduction
1. INTRODUCTION The CV-401H is a HDMI to Video Scan Converter is designed to convert digital signal from HDMI source to an analogue Composite Video (CVBS) signal for use in an NTSC or PAL system, with additional L/R stereo audio output. -
Page 7: Features
5. FEATURES • HDMI 1.2 and DVI 1.0 compliant • Converts video signal from HDMI source to NTSC or PAL signal • Converts digital audio from HDMI source to analog stereo audio • Accepts a wide range of HDTV input resolutions from 480i to 1080p, and PC resolutions from VGA@60Hz to WUXGA@60Hz (RB) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL and from PAL to NTSC. -
Page 9: Left Panel
6.2 Left Panel HDMI IN: Connect the HDMI IN port to the HDMI output port of your source equipment such as a DVD player or Set-top box. You can also use an HDMI to DVI cable to connect to the DVI output of your PC. DC 5V: Plug the 5 V DC power supply into the unit and connect the adaptor to AC wall outlet. -
Page 10: Osd Menu
6.3 OSD Menu Press the Menu button 1280×960 @60 (Input Timing) once to bring up the OSD and display the input (IN) & NTSC (Output TV System) Output (OUT) information. NTSC Press the Menu button for 3 seconds to bring up the OSD then press Underscan 1 it repeatedly to move... - Page 11 Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9. Full Screen: To allow the image to fill the screen of the TV. Letterbox: To fit a 16:9 formatted video signal on a 4:3 display. Horizontal Black bars will be displayed above and below the image Pan &...
-
Page 12: Support Input Timing
6.4 Support Input Timing 480i/480p 576i/576p HD Timing 720p 50,60 1080i 50,60 1080p 50,60 640×480 60,72,75,85 720×400 800×600 56,60,72,75,85 1024×768 60,70,75,85 1152×864 70,75,85 1280×720 1280×768 60RB,60 1280×800 60RB,60 PC Timing 1280×960 1280×1024 1366×768 60RB,60 1400×1050 60RB,60 1440×900 60RB,60 1600×1200 1680×1050 60RB,60 1920×1200 60RB... -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM HDMI Source DVD or Blu-ray Player HDMI Output Power Supply Stereo CVBS Analogue (Composite) Audio Cable... -
Page 14: Specifications
8. SPECIFICATIONS Input Port 1×HDMI Output Ports 1×CVBS (Composite Video) 1×L/R Stereo RCA Jacks (Analog Audio) HDMI Input Audio LPCM 2Ch, 48kHz Output Video NTSC/PAL Output Audio Stereo L/R ESD Protection Human body ±8 kV (air-gap model: discharge) ±6 kV (contact discharge) Power Supply 5 V DC/1 A linear power adaptor (US/... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
