Summary of Contents for CYP CV-401V

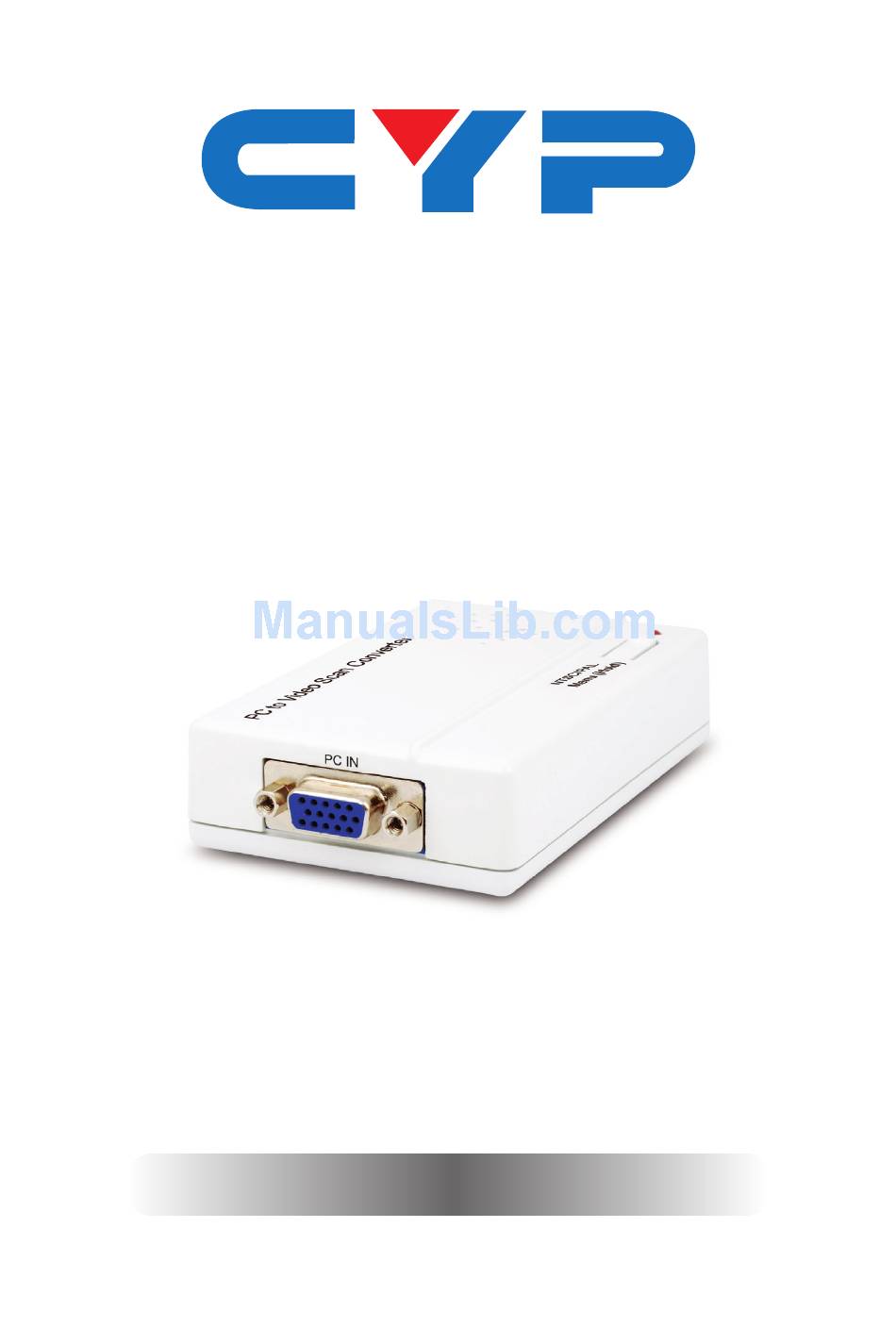

- Page 1 CV-401V PC/HD to Video Scan Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Left Panel ..........4 6.3 Right Panel ........4 6.4 OSD Menu .........5 6.5 Supported Input Timing ....7 7. -
Page 6: Introduction
1. INTRODUCTION The PC/HD to Video Scan Converter is designed to down-scale PC/ Component source to analog CVBS (NTSC,PAL) signal. Ideal for businesses with multiple CCTV cameras, this device takes your high- resolution camera footage and scales it to lower resolutions. Supporting PC resolutions up to WUXGA@60 Hz, this scaler can also connect new video sources to older displays. -
Page 7: Features
5. FEATURES • Converts the video signal from PC/Component source to NTSC or PAL signal • Accepts a wide range of input resolutions of 480i to 1080p@60 Hz (Component) and VGA to WUXGA@60 Hz (PC) • 3D noise reduction in both temporal and spatial domain •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL or from PAL to NTSC. -
Page 9: Left Panel
6.2 Left Panel PC IN: Connect to the source equipment such as a PC, laptop or digital camera with D-sub 15pin cable (VGA) or adaptor converter cable (Component). 6.3 Right Panel CV OUT: Connect to the output display TV or monitor with RCA cable for display of the converted composite (CVBS) signal. -
Page 10: Osd Menu
6.4 OSD Menu Press the Menu button once 640×480 (Input Timing) to bring up the OSD and display the input (IN) and NTSC (Output TV System) Output (OUT) information. NTSC Press and hold the MENU button for 3 seconds to bring up the OSD then Underscan 1 press it repeatedly to move... - Page 11 Phase Adjustment: Range is from 0~31 and can be used to compensate for blurry image quality and/or character jiggle. Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Lette (RB)ox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9.
-
Page 12: Supported Input Timing
6.5 Supported Input Timing 480i 480p 576i HD Timing 576p 720p 50/60 1080i 50/60 1080p 50/60 640×480 60/72/75/85 720×400 800×600 56/60/72/75/85 1024×768 60/70/75/85 1152×864 70/75/85 1280×720 59/60 1280×768 60/60 (RB) 1280×800 60/60 (RB) PC Timing 1280×960 59/60 1280×1024 59/60 1366×768 60/60 (RB) 1440×900 60/60 (RB) -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Component Camera (with YPbPr to D-Sub PC or Notebook 15-pin Cable) (with VGA D-Sub 15-pin Cable) VGA/Component Output Power Supply CVBS (Composite) Cable TV or Monitor... -
Page 14: Specifications
8. SPECIFICATIONS Input Port 1×VGA Output Port 1×CVBS (Composite Video) Output Video NTSC/PAL ESD Protection Human body model: ±8 kV (air-gap discharge) ±6 kV (contact discharge) Power Supply 5 V DC/1 A linear power adaptor (US/EU standards, CE/FCC/UL certified) Dimensions 64 mm (W)×104 mm (D)×26 mm (H) Weight 120 g... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cathode Ray Tube Liquid Crystal Display NTSC National Television System Committee Phase Alternating Line Video Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CV401V...
