Summary of Contents for CYP nT15FX06

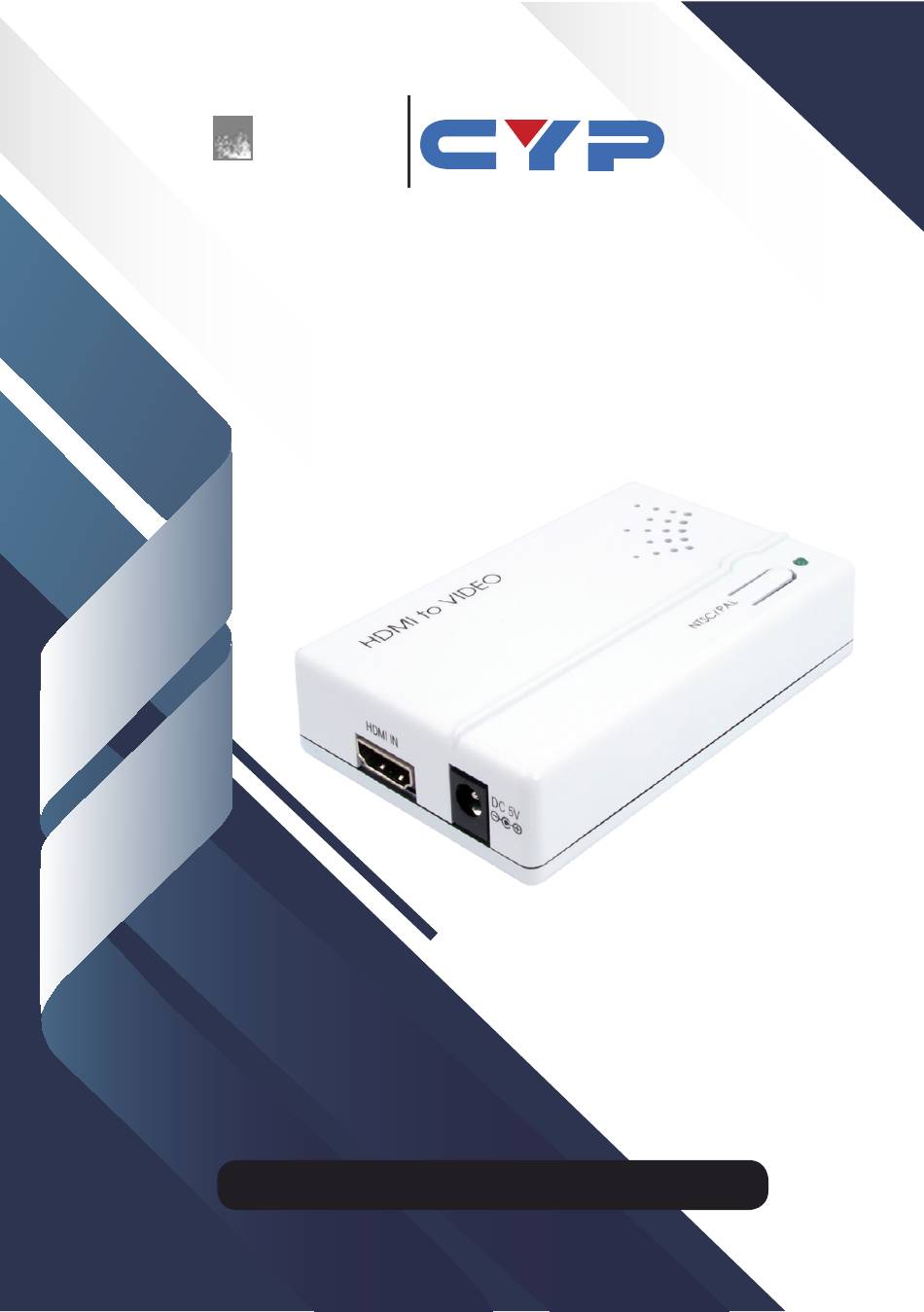

- Page 1 SOLUTIONS FOR GROWTH n - TECH SOLUTIONS nT15FX06 CV-400H HDMI TO VIDEO SCAN CONVERTER Operation Manual Operation Manual...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specications ................2 7. Operation Controls and Functions ..........3 7.1 Front Panel ................ 3 7.2 Rear Panel ................ -
Page 5: Introduction
1. Introduction The HDMI to CVBS Converter is designed to convert digital signal from HDMI source to analog signal of NTSC or PAL system, with L/R stereo audio. This device provides a convenient application that allows the users to store high denition movie in a standard resolutions of 480i or 576i on DVR or VCR machine. -
Page 6: SpeciCations
6. Specications Input Port 1 x HDMI, Output Port 1 x CVBS, 1 x L/R RCA Jack HDMI Input Resolution 480p, 576p & 720p, VGA@60 / 72 / 75 / 85, SVGA@56 / 60 / 72 / 75 / 85, XGA@60 / 70 / 75, WXGA(1224x768;1280x768;1280x800)@60RB / 60 HDMI Input Audio LPCM 2Ch, 48kHz... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel HDMI IN DC 5V ① HDMI IN: This slot is to connect with input source equipment such as DVD or Blue-Ray player with HDMI cable. ② DC 5V: plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet. -
Page 8: Top Panel
7.3 Top Panel HDMI to VIDEO NTSC/ P ① NTSC / PAL: Press this button once to allow OSD to be display on screen and the OSD contents will show input resolution with output system status. Press it again while the OSD still appear on screen to switch the output display to NTSC/PAL system. -
Page 9: Connection And Installation
8. Connection and Installation Blu-Ray CV-400H Monitor... - Page 10 Acronyms Acronym Complete Term...
- Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CV400H...
