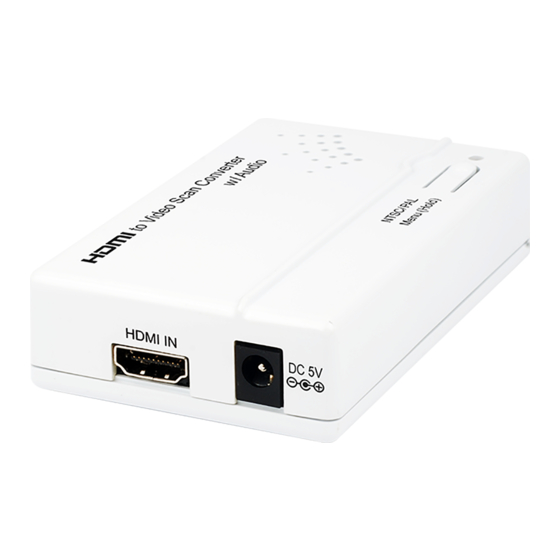

- Page 1 CV-401H HDMI to Video Scan Converter Operation Manual CV-401H...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 Support Input Timing ............2 7. Operation Controls and Functions ..........3 Top Panel ................ -
Page 5: Introduction
1. Introduction The HDMI to Video Scan Converter is designed to convert digital signal from HDMI source to analog signal of NTSC or PAL system, with additional L/ R stereo audio output. This device provides a convenient application that allows the user to convert high definition video to standard resolution (480i or 576i) format and then store on DVR or VCR machine. -
Page 6: Specifications
6. Specifications Input Port 1 x HDMI, Output Ports 1 x CVBS (Composite Video), 1 x L/R RCA Jack HDMI Input Audio LPCM 2Ch, 48kHz Output Video NTSC/PAL Output Audio Stereo L/R ESD Protection Human body model: ± 8kV (air-gap discharge) ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel . NTSC/PAL MENU (Hold): Press this button to bring up the OSD menu which provides the input timing and output TV system information. While the OSD menu is on, press the button again to switch output TV systems between NTSC and PAL. -
Page 8: Right Panel
7.3 Right Panel . OUTPUT L/R: Connect the L/R stereo output ports to the input ports of active speakers or TV/monitor with corresponding support. . OUPUT VIDEO: Connect the VIDEO output port to the composite video input port of your display such as HDTV or monitor. 8. - Page 9 Aspect Adjustment: There are total 5 different options available in the Aspect setting – Full Screen, Letterbox, Pan & Scan, Auto TV 4:3, and Auto TV 16:9. Full Screen: Stretches the image to fill the screen entirely. Letterbox: Stretches the image of 16:9 aspect ratio, on top and bottom, to fit with 4:3 output display.
-
Page 10: Connection And Installation
9. Connection and Installation Camera... -
Page 11: Acronyms
Acronyms Acronym Complete Term HDMI High-Definition Multimedia Interface NTSC National Television System Committee Phase Alternating Line LPCM Linear Pulse-Code Modulation CVBS Composite video (Color, Video, Blanking, and Sync) - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CV401H...
