CV-401H
HDMI to Video Scan Converter
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-401H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CV-401H

Summary of Contents for CYP CV-401H

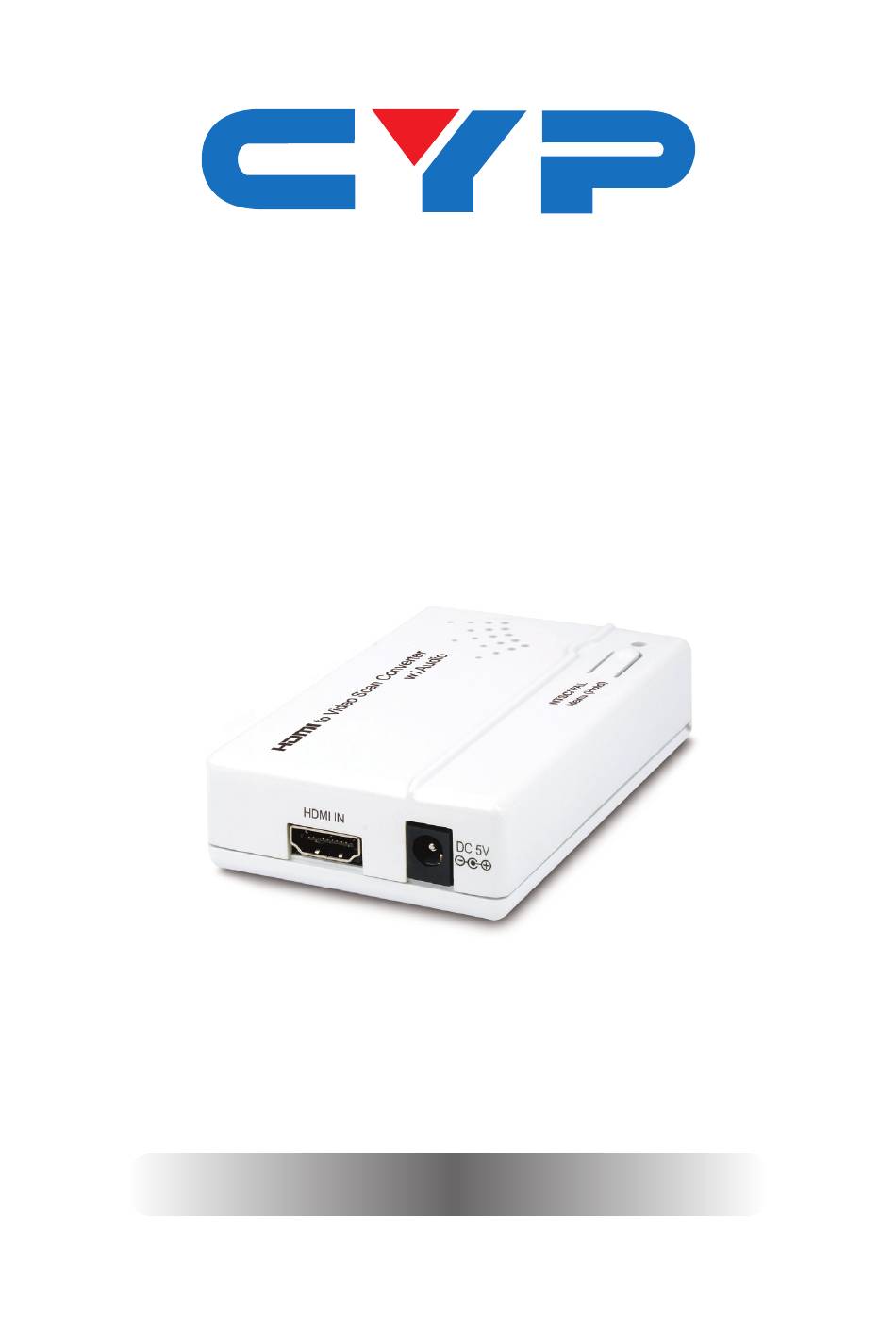

  • Page 1 CV-401H HDMI to Video Scan Converter Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Left Panel ..........4 6.3 Right Panel ........4 6.3 OSD Menu .........5 6.4 Supported Input Timing ....7 7.

  • Page 6: Introduction

    1. INTRODUCTION The HDMI to Video Scan Converter is designed to convert a digital signal from HDMI source to analog NTSC or PAL signal, with additional L/R stereo audio output. This device allows the user to convert high definition video to standard resolution (480i or 576i) composite (CVBS) format.

  • Page 7: Features

    5. FEATURES • HDMI and DVI 1.0 compliant • Converts an HDMI video signal to NTSC/PAL • Converts HDMI digital audio to analog stereo audio • Accepts a wide range of input resolutions of 480i to 1080p (HDTV) and VGA to WUXGA@60 Hz (PC) •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL or from PAL to NTSC.

  • Page 9: Left Panel

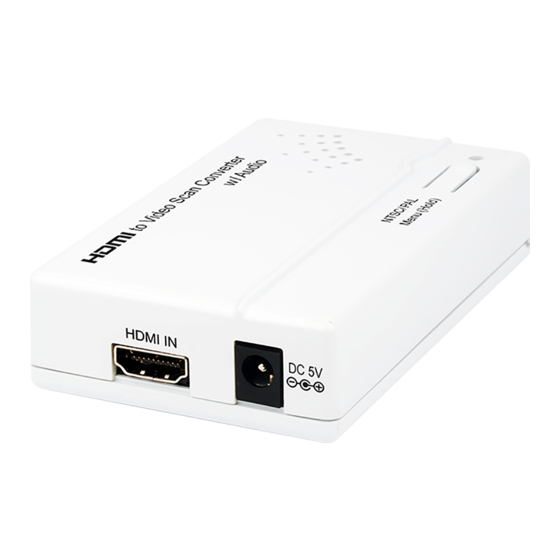

    6.2 Left Panel HDMI IN: Connect the HDMI IN port to the HDMI output port of your source equipment such as a DVD player or Set-top box. You can also use an HDMI to DVI cable to connect to the DVI output of your PC.

  • Page 10: Osd Menu

    6.3 OSD Menu Press the Menu button once 1280×960 @60 (Input Timing) to bring up the OSD and display the input (IN) and NTSC (Output TV System) Output (OUT) information. NTSC Press and hold the MENU button for 3 seconds to bring up the OSD then press Underscan 1 it repeatedly to move the...
  • Page 11 Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Lette (RB)ox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9. Full Screen: To allow the image to fill the screen of the TV. Lette (RB) ox: To fit a 16:9 formatted video signal on a 4:3 display. Horizontal Black bars will be displayed above and below the image Pan &...

  • Page 12: Supported Input Timing

    6.4 Supported Input Timing 480i 480p 576i HD Timing 576i 720p 50/60 1080i 50/60 1080p 50/60 640×480 60/72/75/85 720×400 800×600 56/60/72/75/85 1024×768 60/70/75/85 1152×864 70/75/85 1280×720 1280×768 60/60 (RB) 1280×800 60/60 (RB) PC Timing 1280×960 1280×1024 1366×768 60/60 (RB) 1400×1050 60/60 (RB) 1440×900 60/60 (RB)

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Source DVD or Blu-ray Player HDMI Output Power Supply Stereo CVBS Analog (Composite) Audio Cable...

  • Page 14: Specifications

    8. SPECIFICATIONS Input Port 1×HDMI Output Ports 1×CVBS (Composite Video) 1×L/R Stereo RCA Jacks (Analog Audio) HDMI Input Audio LPCM 2CH, 48 kHz Output Video NTSC/PAL Output Audio Stereo L/R ESD Protection Human body model: ±8 kV (air-gap discharge) ±6 kV (contact discharge) Power Supply 5 V DC/1 A linear power adaptor (US/EU standards, CE/FCC/UL certified)

  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CVBS Composite Video (Color, Video, Blanking, and Sync) HDMI High-Definition Multimedia Interface LPCM Linear Pulse-Code Modulation NTSC National Television System Committee Phase Alternating Line...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
