Summary of Contents for CYP CV-400H

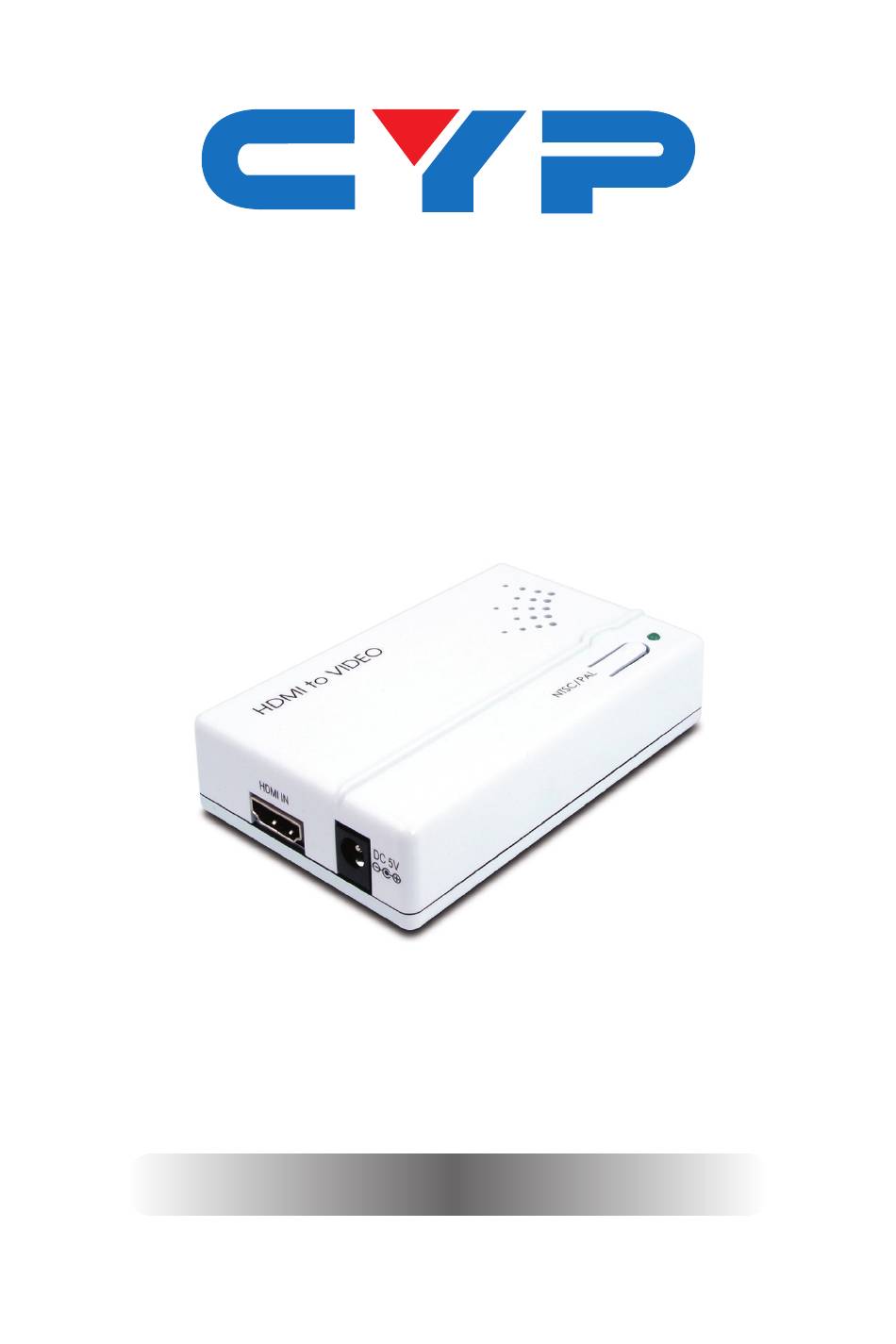

- Page 1 CV-400H HDMI to Video Scan Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ...........3 6.2 Front Panel .........4 6.3 Rear Panel .........4 7. -
Page 6: Introduction
1. INTRODUCTION This HDMI to Composite Converter will convert an HDMI digital signal to an analog NTSC or PAL signal with analog (L/R) stereo audio. This device provides the ability to convert a high definition signal to a standard definition resolution (480i or 576i) for use with DVRs or VCRs. The device is HDMI and DVI compliant and has features such as 3D noise reduction, frame rate conversion, adaptive contrast enhancement as well as a simplified on-screen display (OSD) allowing... -
Page 7: Features
5. FEATURES • HDMI and DVI compliant • Converts video signal from HDMI source to NTSC or PAL signal • Converts digital audio from HDMI source to analog stereo audio • Accepts a wide range of HDTV input resolutions, from 480p to 720p@60 Hz and PC from VGA@60 Hz to WXGA@60 Hz •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel HDMI to VIDEO NTSC/ PAL NTSC/PAL BUTTON Press once to display the current video standard and resolution settings on the on-screen display (OSD). Press again while the OSD is on screen to change the setting to NTSC or PAL. When the OSD is not displayed, press and hold for 3 seconds to select the underscan/overscan function. -
Page 9: Front Panel
6.2 Front Panel HDMI IN DC 5V HDMI IN Connect to a source device such as HD camera player with an HDMI output with an HDMI cable. DC 5V Connect the 5 V DC power supply to the unit and plug the adaptor into AC wall outlet. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM HDMI Camera (Non-HDCP Source) HDMI Input Power Supply HDMI IN DC 5V VIDEO OUTPUT Analog Stereo Composite Audio Output Video Output TV or Monitor... -
Page 11: Specifications
8. SPECIFICATIONS Input Port 1×HDMI, Output Ports 1×CVBS, 1×L/R (RCA Jack) HDMI Input Resolution 480p, 576p & 720p, VGA@60/72/75/85, SVGA@56/60/72/75/85, XGA@60/70/75, WXGA (1224×768/1280×768/1280×800)@60RB HDMI Input Audio LPCM 2CH, 48 kHz Output Video NTSC/PAL Output Audio Analog stereo Power Supply 5 V/1 A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface NTSC National Television System Committee Phase Alternating Line SVGA Super Video Graphics Array Video Graphics Array WXGA Wide Extended Graphics Array Extended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
