Summary of Contents for CYP CSC-5500

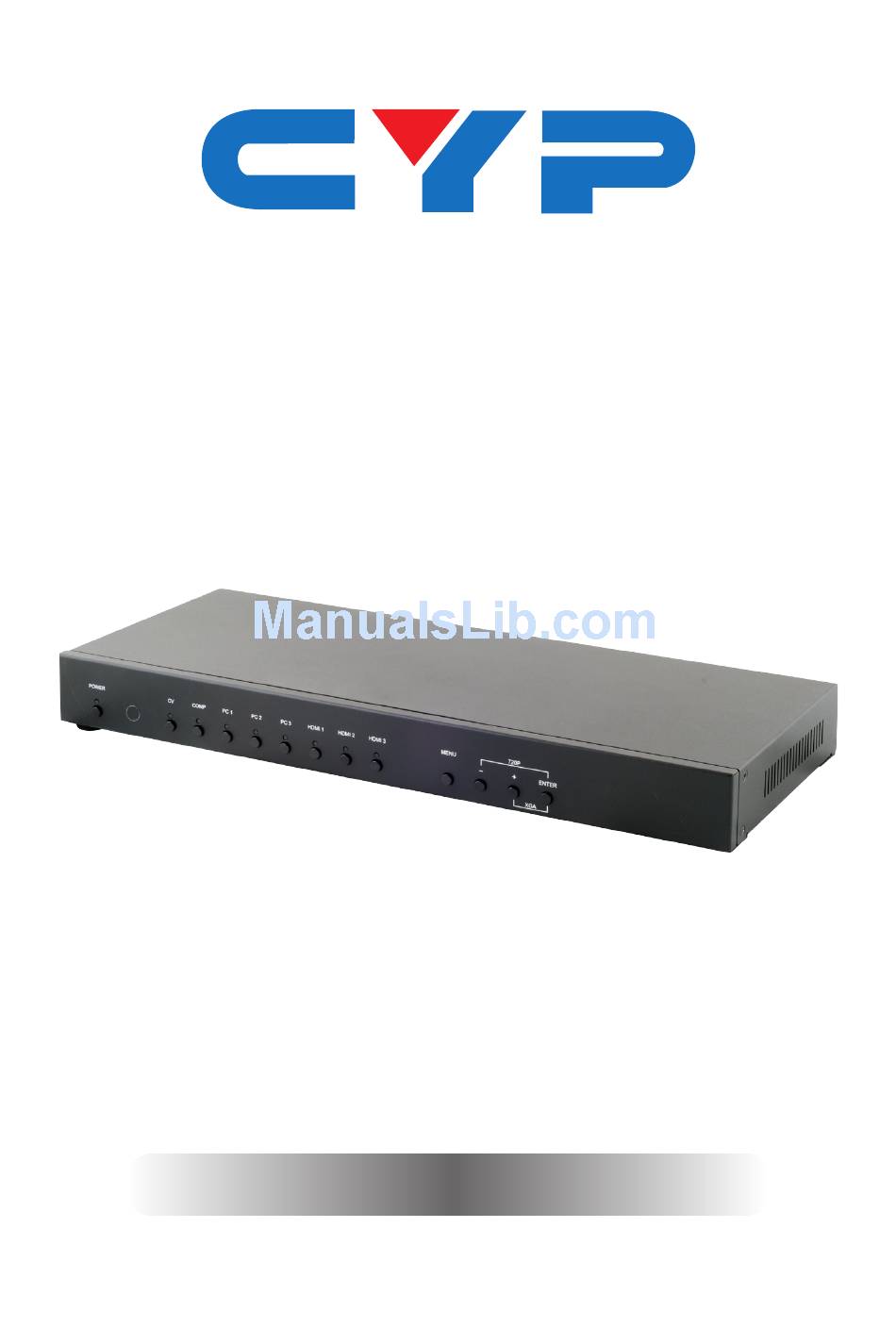

- Page 1 CSC-5500 Multi-Input Scaler Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 RS-232 Protocols .......5 6.5 RS-232 and Telnet Commands ..6 6.6 OSD MENU .........9... -
Page 5: Introduction
1. INTRODUCTION The Multi-Input Scaler has CV, Component, PC, and HDMI inputs and can scale the signal into HDMI, VGA with audio output ports. This high performance Multi-Input Scaler supports HDMI output resolution up to 1080p /WUXGA and Analog Digital Conversion (ADC) & Digital Analog Conversion (DAC) allowing a wide range of AV signal to be insert to a High-definition signal and displaying. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 720P POWER COMP PC 1 PC 2 PC 3 HDMI 1 HDMI 2 HDMI 3 MENU ENTER POWER button & LED: Press this button to switch ON or set the device to standby mode. Once the device is connected with power supply and the power toggle is switched to ON the LED will illuminate and the device will switch ON automatically. -
Page 7: Rear Panel
6.2 Rear Panel IR IN SERVICE INPUT AUDIO RS232 COAX AUDIO CONTROL OUTPUT POWER DC 5V HDMI 1 HDMI 2 PC/HD HDMI 1 HDMI 2 HDMI 3 PC 1 PC 2 PC 3 Cr/Pr Cb/Pb IR IN: Plug in the IR extender cable for IR signal receiving from the included remote control. -
Page 8: Remote Control
DVD player for both video and audio signal sending. CV + L/R: Connect to source equipment such as video/DVD player for both video and audio signal sending. CONTROL: This port is the link for Telnet or Web GUI controls, connect to an active Ethernet link with an RJ45 terminated cable (for further details, please refer to section 6.7 &... -
Page 9: Rs-232 Protocols
◄►: Press right and left buttons to increase and decrease the volume when outside of OSD menu selection. 6.4 RS-232 Protocols CSC-5500 Remote Control Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None... -
Page 10: Rs-232 And Telnet Commands
6.5 RS-232 and Telnet Commands ? : Show command list under Telnet. Command Description Contents S POWER 0/1 OFF(0) / ON(1) Power ON or OFF R POWER Request power status S SOURCE 1~8 Select input source HDMI1(1) / HDMI2(2) / HDMI3 (3) / YPBPR(4) / R SOURCE Inquire input source... - Page 11 S CONTRAST 0~60 Contrast Setting R CONTRAST Inquire contrast setting S BRIGHTNESS 0~60 Brightness setting R BRIGHTNESS Inquire brightness setting S HUE 0~60 Hue setting R HUE Inquire hue setting S SATURATION 0~60 Saturation setting R SATURATION Inquire saturation setting S SHARPNESS 0~30 Sharpness setting R SHARPNESS...
- Page 12 PORT (0~8) Set active port LAST MEMORY(0) / HDMI(1) / HDMI2(2) / when repower on HDMI3(3) / YPBPR(4) / VIDEO (5) / PC(6) / PC2(7) / PC3(8) FW vers. & source info. 0.00~x.xx SOURCE: HDMI ~ PC3 PORT ON:LAST ~ PC3 VOL + VOLUME * IS SET Volume up and down...
-
Page 13: Osd Menu
6.6 OSD MENU Layer Layer Layer Layer 480 60 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 OUTPUT 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50... - Page 14 CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) R 0~1023 (512) G 0~1023 (512) B 0~1023 (512) R OFFSET COLOR 0~1023 (512) G OFFSET 0~1023 (512) COLOR B OFFSET 0~1023 (512) 0~60 (30) SATURATION 0~60 (30) SHARPNESS 0~30 (0) MIDDLE HIGH VOLUME 0~100 (100) 40mS DELAY...
- Page 15 INPUT INFORMATION OUTPUT REVISION IP ADDRESS Factory default setting. *1 When Audio Source is set on Auto, the device will send audio signal according to input source. If input signal is with HDMI, the device will use internal signal and if input signal is with DVI, the device will use external L/R audio.
-
Page 16: Telnet Control
6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Scaler (via the 'LAN port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the "Start" menu and type "cmd" in the Search field then press enter. - Page 17 This will bring us into the device which we wish to control. Type "?" to list all the commands. Note: All command will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also needs to be change accordingly.
-
Page 18: Web Gui Control
6.8 Web GUI Control On a PC/Laptop that is connected to an active network as the Scaler, open a web browser and type device's IP address on the web address entry bar. The browser will bring up the control page of Scaler. -
Page 19: Connection And Installation
7. CONNECTION AND INSTALLATION Wireless Router(with Internet Connection) PC/NB DVI to HDMI source 60° AVR with Coaxial Input Smartphone or Tablet Component with Stereo Audio from DVD Player IR IN INPUT SERVICE AUDIO RS232 COAX AUDIO CONTROL OUTPUT POWER DC 5V HDMI 1 HDMI 2 PC/HD... -
Page 20: Specifications
8. SPECIFICATIONS Input Ports 1 x Component with L/R, 1 x Composite with L/R, 3 x VGA, 3 x HDMI, 6 x Audio L/R (3.5mm phone jack), 1 x USB (service only), 1 x IR Extender, 1 x RS-232 (Control Only) Output Ports 2 x HDMI, 1 x PC/HD,... -
Page 21: Support I/O Resolution
8.1 Support I/O Resolution Input Component HDMI Resolution NTSC/PAL 480i/576i 480p/576p 720p@50/60Hz 1080i@50/60Hz 1080p@50/60Hz VGA@60/72/75Hz SVGA@56/60/72/75Hz XGA@60/70/75Hz SXGA@60/75Hz UXGA@60Hz 1280x800@60Hz 1680x1050RB@60Hz 1920x1080@60Hz 1920x1200@60HzRB Output PC/HD HDMI Resolution 480p/576p V (HD) 720p@50/60Hz V (HD) 1080i@50/60Hz V (HD) 1080p@50/60Hz V (HD) VGA@60Hz SVGA@60Hz XGA@60Hz... - Page 22 SXGA@60Hz UXGA@60Hz 1280x768@60Hz 1280x800@60Hz 1360x768@60Hz 1400x1050@60Hz 1440x900@60Hz 1680x1050@60Hz 1920x1200@60HzRB...
- Page 23 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121224 MPM-CSC5500...
