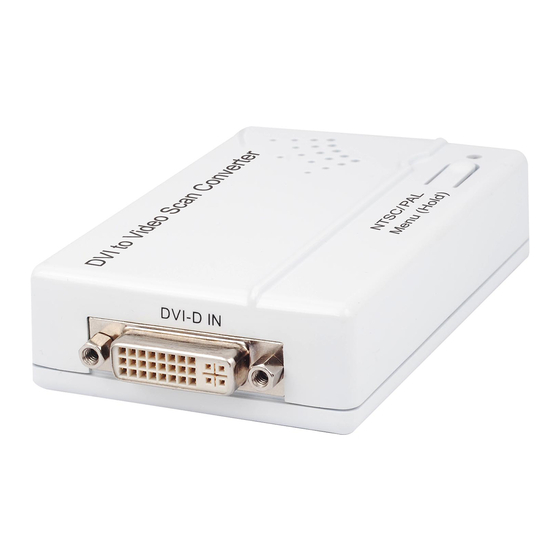

CYP CV-401D Operation Manual

Dvi-d to video scan converter
Hide thumbs Also See for CV-401D:
Table of Contents

Advertisement

Quick Links

Download this manual
CV-401D
DVI-D to Video Scan Converter
OPERATIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-401D and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CV-401D

Summary of Contents for CYP CV-401D

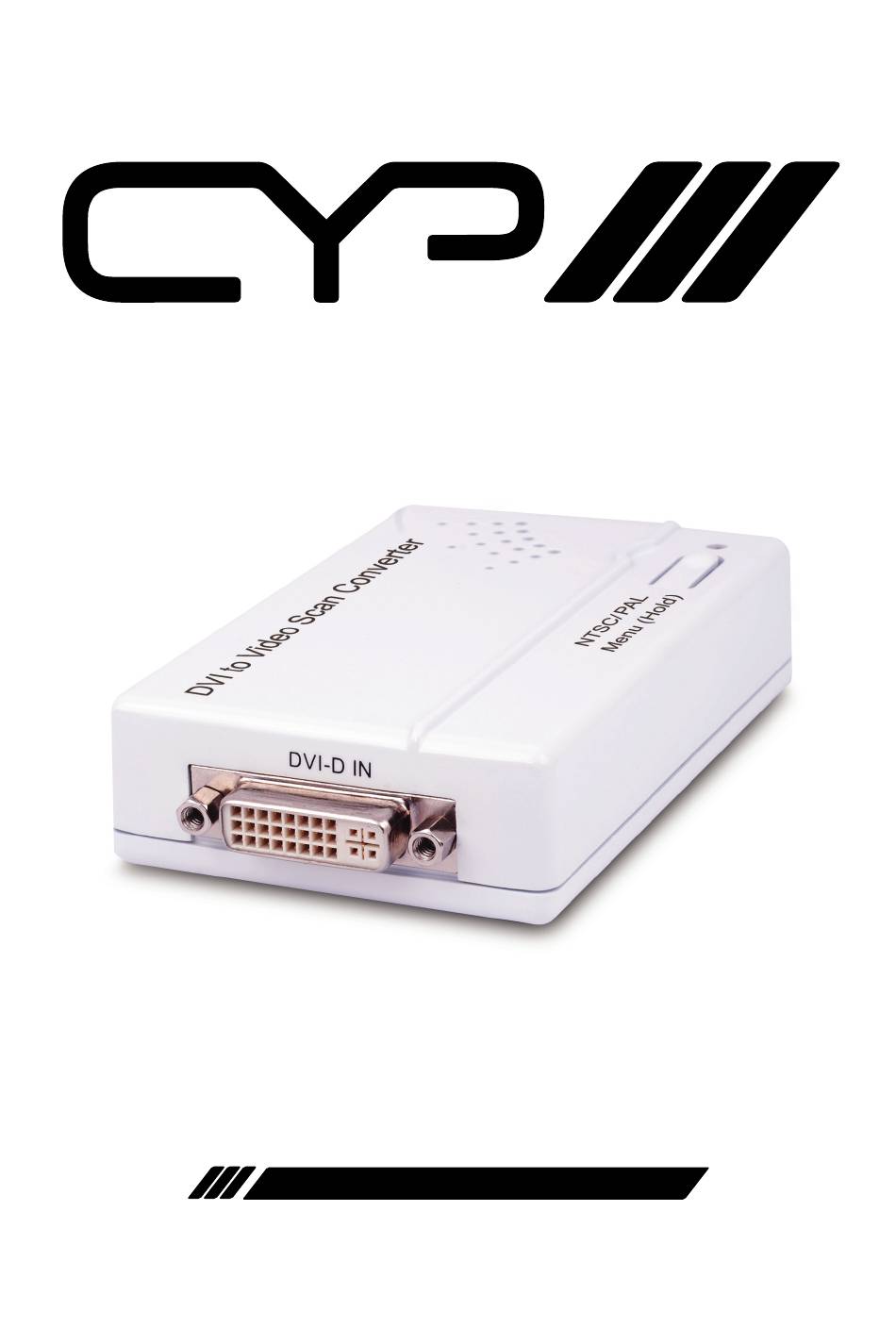

  • Page 1 CV-401D DVI-D to Video Scan Converter OPERATIONS MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Top Panel ............8 6.2 Left Panel ............9 6.3 Right Panel ........... 9 6.3 OSD Menu ..........10 6.4 Support Input Timing ......12 7.

  • Page 6: Introduction

    1. INTRODUCTION The CV-401D DVI to Video Scan Converter is designed to convert digital signals from a DVI-D source to an analogue Composite Video (CVBS) signal for use in an NTSC or PAL system. The device is HDMI 1.2 & DVI 1.0 compliant and it features many great functions such like 3D noise...

  • Page 7: Features

    5. FEATURES • DVI 1.0 compliant • Converts video signal from DVI-D source to NTSC or PAL signal • Accepts a wide range of DVI-D input resolution from 480p to 1080p@60Hz and PC from VGA to WUXGA@60HzRB • 3D noise reduction in both temporal and spatial domain •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL and from PAL to NTSC.

  • Page 9: Left Panel

    6.2 Left Panel DVI-D IN: Connect to the DVI equipped source equipment such as a PC or notebook for DVI input signal with a DVI cable. 6.3 Right Panel CV OUT: Connect to the output display TV or monitor with RCA cable for display of the converted composite (CVBS) signal.

  • Page 10: Osd Menu

    6.3 OSD Menu Press the Menu button 1280×960 @60 (Input Timing) once to bring up the OSD and display the input (IN) & NTSC (Output TV System) Output (OUT) information. NTSC Press the Menu button for 3 seconds to bring up the OSD then press Underscan 1 it repeatedly to move...
  • Page 11 Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9. Full Screen: To allow the image to fill the screen of the TV. Letterbox: To fit a 16:9 formatted video signal on a 4:3 display. Horizontal Black bars will be displayed above and below the image Pan &...

  • Page 12: Support Input Timing

    6.4 Support Input Timing 480p 576p HD Timing 720p 50,60 1080i 50,60 1080p 50,60 640×480 60,72,75,85 720×400 800×600 56,60,72,75,85 1024×768 60,70,75,85 1152×864 70,75,85 1280×720 1280×768 60RB,60 1280×800 60RB,60 PC Timing 1280×960 1280×1024 1366×768 60RB,60 1400×1050 60RB,60 1440×900 60RB,60 1600×1200 1680×1050 60RB,60 1920×1200 60RB...

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM DVI Equipped PC or Notebook DVI-D Cable Power Supply CVBS (Composite) Cable...

  • Page 14: Specifications

    8. SPECIFICATIONS Input Port 1×DVI-D Output Ports 1×CVBS Output Video NTSC/PAL ESD Protection Human body ±8 kV (air-gap model: discharge) ±6 kV (contact discharge) Power Supply 5 V DC/1 A linear power adaptor (US/EU standards, CE/FCC/UL certified)or 5 V/1.2 A switching power adaptor (with universal plug, CE/FCC/UL certified) Dimensions...

  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Infrared...
  • Page 16 CIE-Group Ltd, Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham NG6 8WB Tel: +44 (0)115 977 0075 | Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com...
