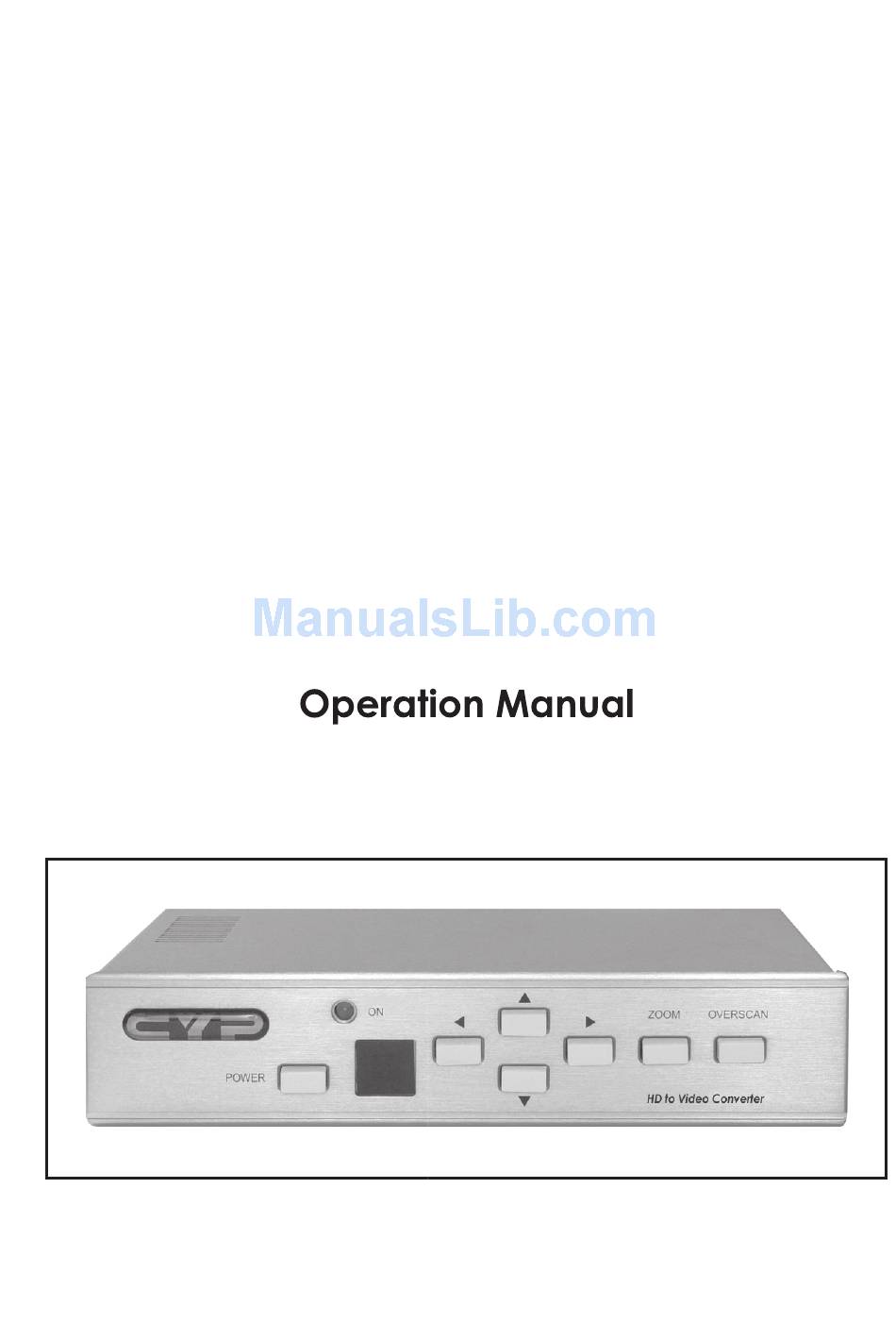

- Page 1 PC/HDTV to Video Scan Converter...
- Page 2 Applications CHD-380 is a high performance and multi-format Video Scan Converter. It is designed to convert not only PC but also HDTV images to interlaced NTSC/PAL and component output. It is ideal for use in applications like video conference, home theater, business presentation, lecturing room or viewing PC/HDTV images on TV.

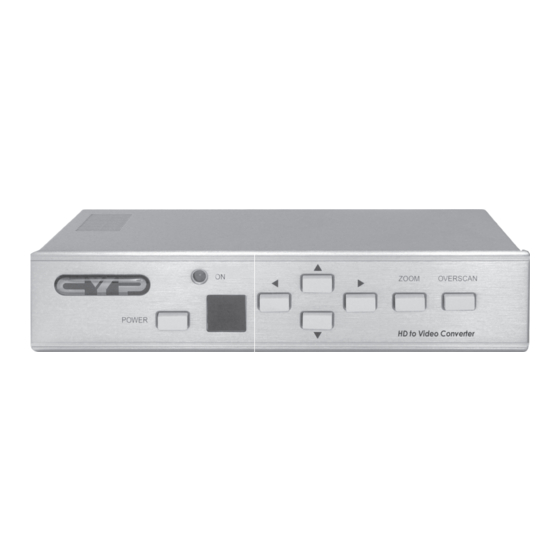

- Page 3 Operation Controls and Functions Front Panel Aspect Overscan POWER HD to Video Converter 1. Standby/On indicator: The indicator illuminates in red when it is in Standby mode, illuminates in green when it is in ON mode. 2.
-
Page 4: Operation Controls And Functions
Operation Controls and Functions Remote controls and Functions 1. Power: Power ON/Off. 2. Video setting adjustments for picture contrast, bright, color and sharpness. 3. V-Reset: Press the button to reset picture adjustment 2 to factory default vaule. OUTPUT 4. NTSC/PAL: Press the button to select NTSC or PAL as video output. -
Page 5: Rs-232 Software Operation
19. RS-232 Com Port 5. Magnifier 10. Minimize 15. Expand/Size 1. Connection Status: Grey icon means disconnection to CHD-380 unit. Colored icom means connection to CHD-380 unit. 2. Power: Power on/off 3. System reset: Reset CHD-380 settings to default value. - Page 6 10. Minimize: Shrink application software to window taskbar. 11. System tray: Shrink application software to system tray. Click the icon and return to normal window. System tray 12. About: Display software version. Application Firmware version software version Software Version: Application Software version. Firmware Version: CHD-380 firmware version.
-
Page 7: Connection And Installation
RS-232 Software Operation 13. Aspect: Select the screen aspect- Full-> Pan & Scan -> Letterbox 14/15. Position/Pan and Size/Expand adjustments Position/Pan Size/Expand Reset Positio/Pan Adjustments: Position for underscan, Pan adjustment for overscan. Size/Expand Adjustments: Size for underscan, Expand for overscan. Reset: Reset settings to default values. -
Page 8: Specifications
Specifications Input terminals: - PC on HD-15 - HDTV or SDTV on 3 RCA (YPbPr or YCbCr) Input resolutions: - PC resolution list: VGA@60Hz up to 140Hz refresh rate SVGA@60Hz up to 120Hz refresh rate XGA@60Hz up to 85Hz refresh rate SXGA@60Hz refresh rate UXGA@60Hz refresh rate - HDTV resolution list:... -
Page 9: Pins Definition Of Modem Cable
CHD-380 RS-232 Remote Control Protocol * The connection between CHD-380 and remote controller with RS-232 modem cable. Pins definition of modem cable CHD-380 Remote Controller Definition Definition * RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 bits... - Page 10 * Command / Response codes of RS-232 transmission: * Command / Response codes are the combination of 6 bytes. * Every command's transmission, scan converter responses the equal codes. * Only PWR???, VER??? codes are available while unit is on Power-Off status. * Some functions need time to process.
