Summary of Contents for CYP CP-1283HDT

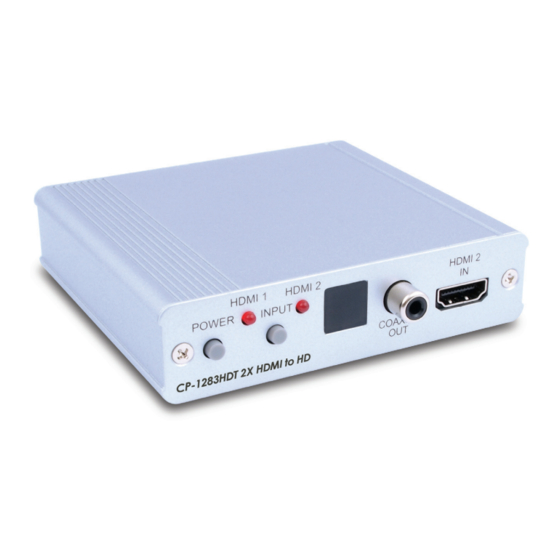

- Page 1 CP-1283HDT Dual HDMI to Component & Audio Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........4 7. -
Page 6: Introduction
1. INTRODUCTION The Dual HDMI to Component & Audio Converter allows the conversion of HDMI sources to component (YUV) and de-embedded stereo audio signals. It can switch between two HDMI sources and outputs both digital (COAX) and analog audio signals simultaneously, as well as supporting HD resolutions up to 1080p (output resolution is dependent on input). -
Page 7: Features
5. FEATURES • HDMI and DVI 1.0 compliant • Supports 2 HDMI inputs and 2 audio outputs (digital coaxial, analog L/R) • Supports HDMI input (8/10/12-bit), component output supports 8-bit • Supports DVI Input when using an HDMI to DVI adaptor •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI 1 HDMI 2 HDMI 2 POWER INPUT COAXIAL POWER: Press this button to turn the device ON, press again to put the device into standby mode. HDMI 1/2: These LEDs will illuminate according to the selected input. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V HDMI 1 AUDIO Pr/Cr Pb/Cb HDMI 1 IN: Connect to an HDMI source such as a DVD or Blu-ray player. AUDIO OUT: Connect to active speakers or an AV receiver for stereo analog audio output with 3.5 mm jack cable. YUV Out: Connect to a component (YUV) display for analog video signal output with RCA connection cables. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Camcorder (Non-HDCP Content only) HDMI HDMI Rear Power Supply HDMI 1 HDMI 2 HDMI 2 POWER INPUT COAXIAL Front DC 5V HDMI 1 AUDIO Pr/Cr Pb/Cb Component Video Output Digital Analog Audio Audio (COAX) AV Receiver... -
Page 11: Specifications
8. SPECIFICATIONS Video Frequency 225 MHz/6.75Gbps Input Ports 2×HDMI Output Ports 1×3 RCA (YPbPr), 1×Analog L/R 3.5 mm jack, 1×Coaxial Output Signal Y: 1 Vp-p 75Ω Pb/Pr: 0.7 Vp-p 75 Ω Input/Output Resolution HD: 480i/p@60, 576i/p@50, 720p@50/60,1080i/p@50/60, 1080p@24 HDMI Audio Input LPCM 2CH HDMI Input Color Space RGB, Y444, Y422 ESD Protection... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Component Video YPbPr High-Definition Component Video YCbCr Standard Component Video... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
