Summary of Contents for CYP CV-401D

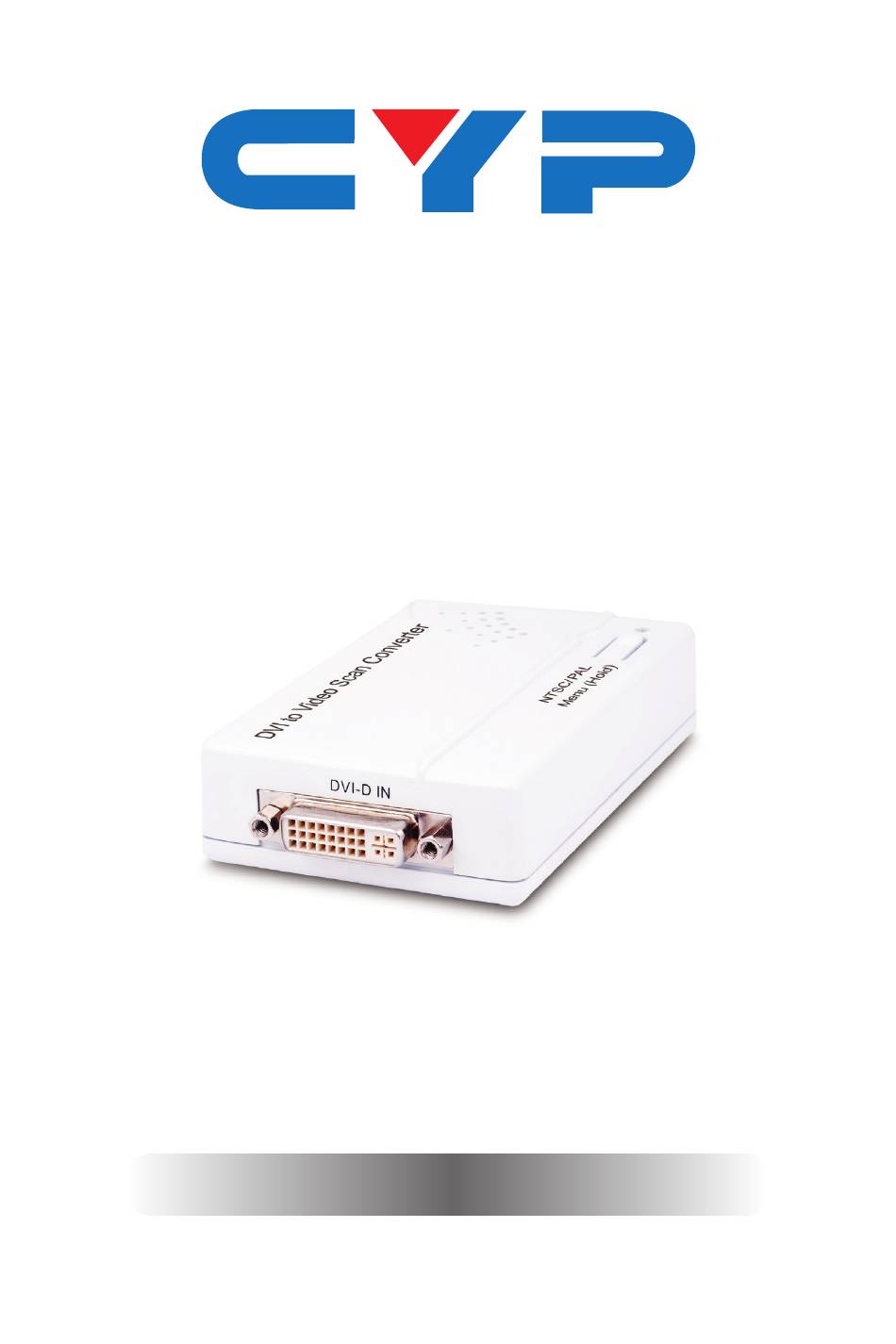

  • Page 1 CV-401D DVI-D to Video Scan Converter Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Left Panel ..........4 6.3 Right Panel ........4 6.4 OSD Menu .........5 6.5 Supported Input Timing ....7 7.
  • Page 6: Introduction

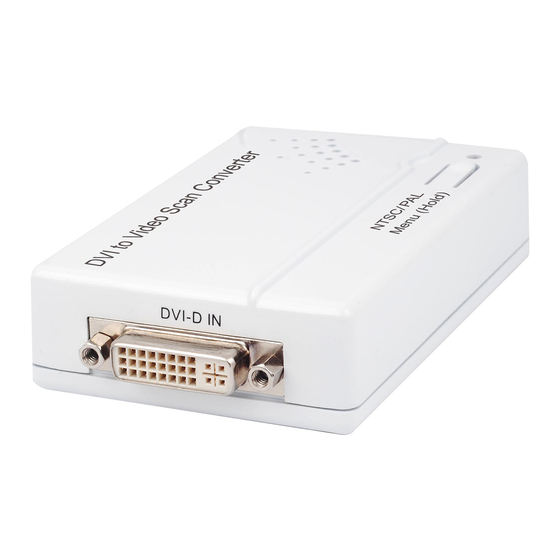

    1. INTRODUCTION The DVI to Video Scan Converter is designed to convert the digital video signal from DVI-D sources to analog composite (CVBS) signal (NTSC or PAL). It is HDMI and DVI compliant and has many great features such like 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more.
  • Page 7: Features

    5. FEATURES • DVI 1.0 compliant • Converts video signal from DVI-D source to NTSC/PAL composite (CVBS) signal • Accepts a wide range of input resolutions of 480p to 1080p@60 Hz (DVI-D) and VGA to WUXGA@60 Hz (PC) • 3D noise reduction in both the temporal and spatial domain •...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL or from PAL to NTSC.
  • Page 9: Left Panel

    6.2 Left Panel DVI-D IN: Connect to the DVI equipped source equipment such as a PC or notebook for DVI input signal with a DVI cable. 6.3 Right Panel CV OUT: Connect to the output display TV or monitor with RCA cable for display of the converted composite (CVBS) signal.
  • Page 10: Osd Menu

    6.4 OSD Menu Press the Menu button once 1280×960 @60 (Input Timing) to bring up the OSD and display the input (IN) and NTSC (Output TV System) Output (OUT) information. NTSC Press and hold the MENU button for 3 seconds to bring up the OSD then press Underscan 1 it repeatedly to move the...
  • Page 11 Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9. Full Screen: To allow the image to fill the screen of the TV. Letterbox: To fit a 16:9 formatted video signal on a 4:3 display. Horizontal Black bars will be displayed above and below the image Pan &...
  • Page 12: Supported Input Timing

    6.5 Supported Input Timing 480p 576p HD Timing 720p 50/60 1080i 50/60 1080p 50/60 640×480 60/72/75/85 720×400 800×600 56/60/72/75/85 1024×768 60/70/75/85 1152×864 70/75/85 1280×720 1280×768 60/60 (RB) 1280×800 60/60 (RB) PC Timing 1280×960 1280×1024 1366×768 60/60 (RB) 1400×1050 60/60 (RB) 1440×900 60/60 (RB) 1600×1200...
  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM DVI Equipped PC or Notebook DVI-D Cable Power Supply CVBS (Composite) Cable...
  • Page 14: Specifications

    8. SPECIFICATIONS Input Port 1×DVI-D Output Ports 1×CVBS Output Video NTSC/PAL ESD Protection Human body model: ±8 kV (air-gap discharge) ±6 kV (contact discharge) Power Supply 5 V DC/1 A linear power adaptor (US/EU standards, CE/FCC/UL certified) Dimensions 64 mm (W)×104 mm (D)×26 mm (H) Weight 120 g Chassis Material...
  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Cathode Ray Tube HDMI High-Definition Multimedia Interface Liquid Crystal Display NTSC National Television System Committee Phase Alternating Line...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CV401D...
