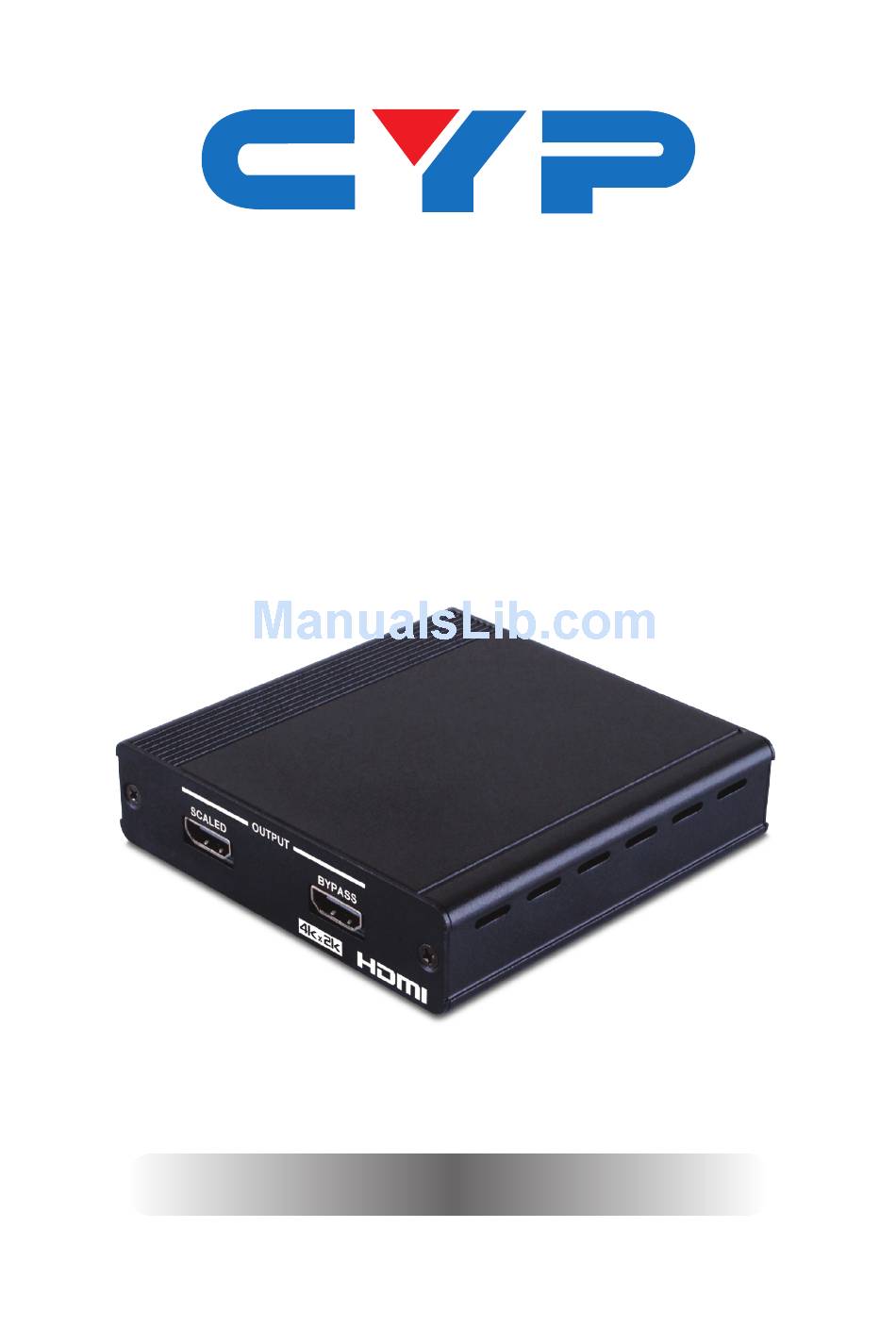

- Page 1 CPRO-2E4KS HDMI 4K2K Scaler Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel .........2 6.2 Rear Panel .........3 7. Connection Diagrams ......4 7.1 Option 1: Upscale to 4K2K ....4 7.2 Option 2: Downscale to 1080p ..5 8. -
Page 5: Introduction

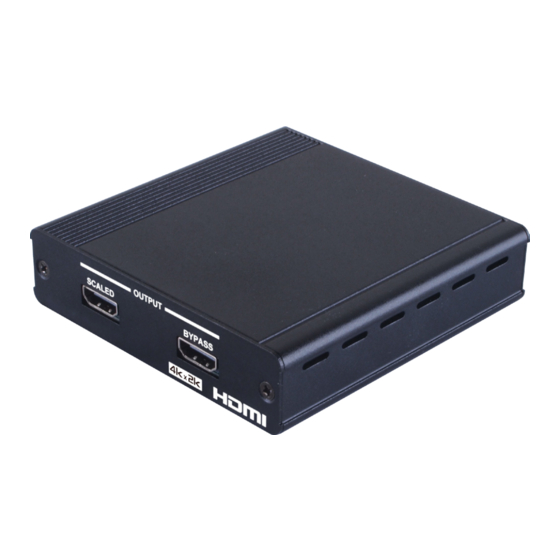

1. INTRODUCTION The HDMI 4K2K Scaler is designed to upscale a 1080p@24 Hz signal up to 4K2K (Ultra HD) or downscale a 4K2K signal down to 1080p@24 Hz. The device features a single HDMI input and two simultaneous HDMI outputs, a 'Bypass' output and a 'Scaled' output. The Bypass output will always bypass the original signal, while the Scaled output can be set to upscale to 4K2K, downscale to 1080p@24 Hz or to bypass without scaling. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V 4K2K INPUT Bypass SERVICE Down 1080P Bypass Bypass INPUT: Connect to a HDMI source device such as Blu-ray/DVD player (1080p@24 Hz or 4K2K). 4K2K and1080P LEDs: These LEDs will illuminate to indicate the source device's resolution. -
Page 7: Rear Panel
Changing the HDMI output display will require a power cycle for the device to obtain the new EDID information. For playback of 4K2K HDMI source signals, a 4K2K capable display and High Speed HDMI cables are required. SERVICE: Manufacturer use only. DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 8: Connection Diagrams
7. CONNECTION DIAGRAMS 7.1 Option 1: Upscale to 4K2K 1080p Source (Blu-ray Player) HDMI Input Power Supply DC 5V 4K2K INPUT Bypass SERVICE 1080P Down Bypass Bypass OUTPUT SCALED BYPASS Scaled Bypass HDMI HDMI Output Output 4K2K Display HDTV (1080p Upscaled to 4K2K) (1080p Bypass Output) -
Page 9: Option 2: Downscale To 1080P
7.2 Option 2: Downscale to 1080p 4K2K Source (Media Streamer) HDMI Input Power Supply DC 5V 4K2K INPUT Bypass SERVICE 1080P Down Bypass Bypass OUTPUT SCALED BYPASS Scaled Bypass HDMI HDMI Output Output HDTV 4K2K Display (4K2K Downscaled to 1080p) (4K2K Bypass Output) -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Input Port 1×HDMI Output Ports 2×HDMI HDMI Cable Distance Input: 5 m Output: 10 m Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions 102 mm(W)×102 mm(D)×25 mm(H)/... - Page 11 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPRO2E4KS...
