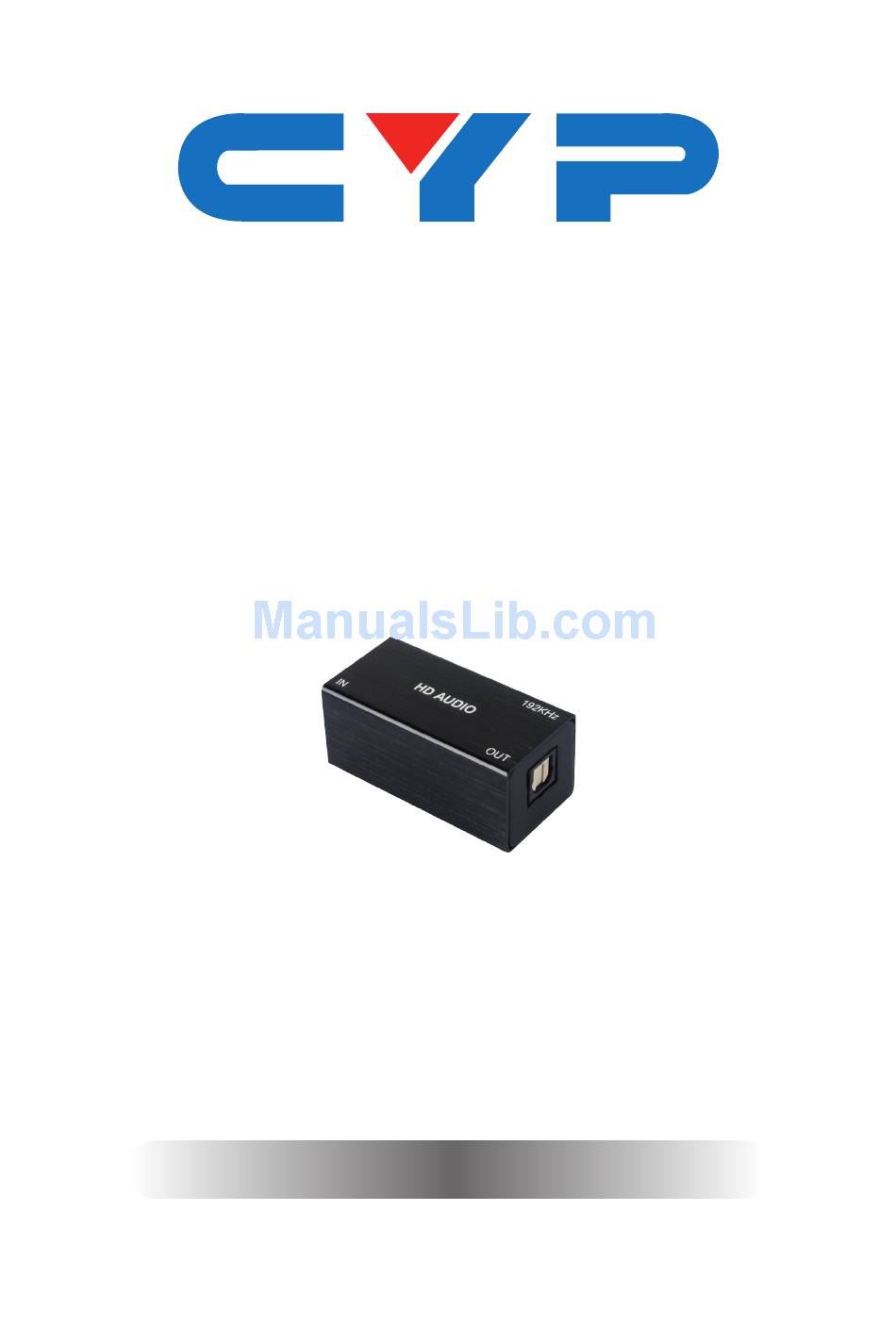

- Page 1 CDB-6 USB to Optical Audio Converter (up to 192kHz) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....2 7. Connection Diagram ........3 8. Specifications ..........4 9. Acronyms ............5... -
Page 6: Introduction

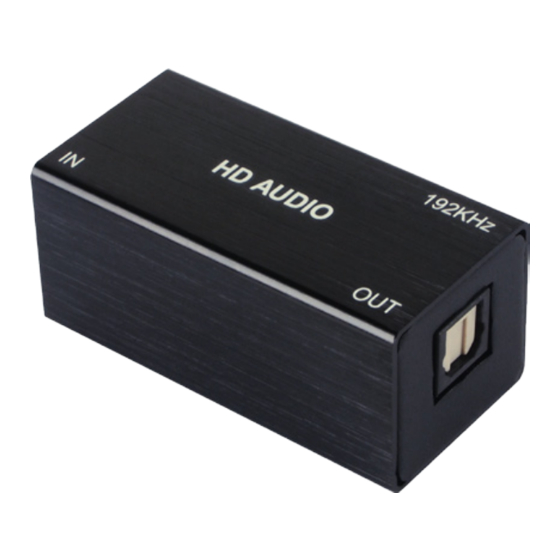

1. INTRODUCTION This unit is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to an audio amplifier or other audio destination that has an S/PDIF input without needing a dedicated audio card. This compact HD audio product supports LPCM 2.0 audio with a maximum sampling rate of 192kHz at 24bits. -
Page 7: Features
5. FEATURES • Output HD audio from your PC/laptop to an audio amplifier • Superior USB audio processor (XMOS U8A) which supports up to 192kHz/24bits sample rate • Superior optical module supporting up to 192kHz audio • Simple operation and compact design •... -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM USB Audio Source USB Audio Input Optical Digital Audio Output Powered Speaker System... -
Page 9: Specifications
8. SPECIFICATIONS Input Port 1×USB Type-B Output Port 1×TOSLINK Input Audio Format USB Audio 2.0 Output Audio Format LPCM 2.0 Audio Sample Rates 44.1, 48, 88.2, 96, 176.4, 192kHz ESD Protection Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) Dimensions 69mm×22.5mm×25mm (W×H×D) [Case Only]... - Page 12 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
