- Page 1 CP-295N CV/SV to HDMI 1080p Scaler Operation Manual CP-295N...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... 4.1 Front Panel................4.2 Rear Panel................4.3 OSD Operation..............5. Reset Functionality..............6. Specifications................6.1 General Specifications............6.2 Supports Resolution............... 7. Connection and Installation............. -
Page 3: Introduction
1. Introduction This Scaler Box is designed to upscale analog video signal from CV/SV input source to digital HDMI output of wide-range HDTV and PC resolutions; up to 1080p. Besides video upscaling, the scaler box also converts digital/analog audio signal to digital/analog format, then output to HDMI combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio) simultaneously. -
Page 4: Operation Controls And Functions

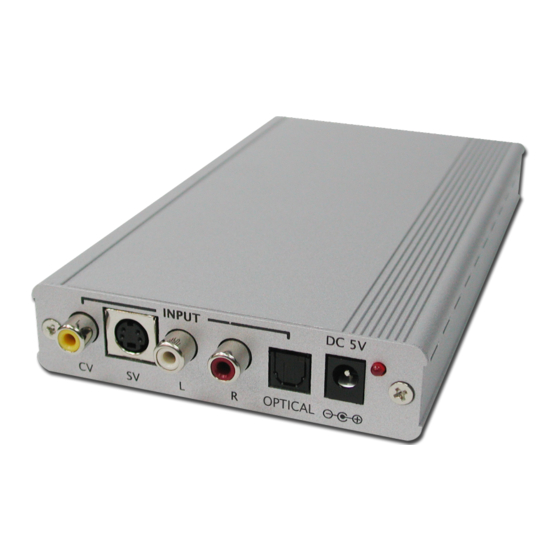

4. Operation Controls and Functions 4.1 Front Panel INPUT DC 5V OPTICAL 1 . CV/SV Input: Connect the CV/SV port to the input port of your source equipment such like DVD player. 2 . L/R Input: Connect the analog audio input port to the output port of your analog audio equipment. -
Page 5: Rear Panel
4.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO INPUT 1 . HDMI Output: Connect the HDMI output port to the HDMI input port of your display such like HDTV. 2 . TOSLink (optical fiber) Output: Connect the optical output port to the digital audio input port of your amplifier. -
Page 6: Osd Operation
4.3. OSD Operation 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level... -
Page 7: Specifications
6. Specifications 6.1 General Specifications Input ports 1 x CV/SV, 1 x R/L, 1 x TOSLink (optical fiber) Output ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Remote Control Discrete IR remote Dimensions... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080310 MPM-CP295N...
