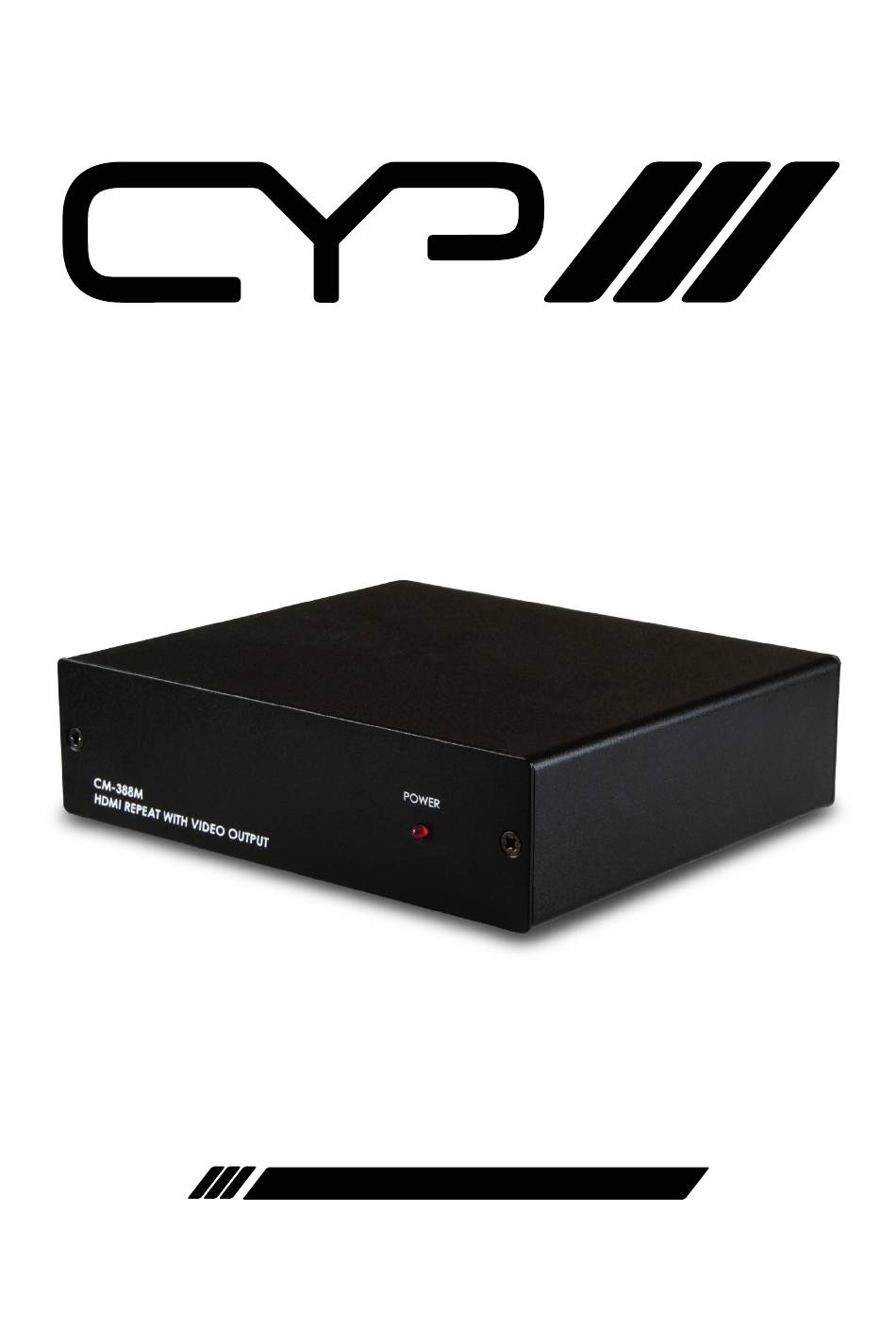

- Page 1 CM-388M HDMI Down-Scaler with Bypass Output OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 8 6.3 Supported Resolutions ......9 6.4 Audio Chart..........10 6.5 Video and audio conversion/bypass options ...............11 7. -
Page 6: Introduction
1. INTRODUCTION The CM-388M is designed to convert digital signals from a HDMI (or DVI + Coaxial) source to Composite Video or S-Video for NTSC or PAL systems with L/R stereo audio. Besides Composite Video and S-Video outputs, this device also provides one HDMI bypass output to deliver the original signal, and a simultaneous Coaxial output to send S/PDIF digital audio to an audio amplifier. -
Page 7: Features
5. FEATURES HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant Convert HDMI source signals to Composite Video or S-Video, with selectable NTSC or PAL compatibility Converts digital audio from a HDMI source to analog stereo audio HDMI bypass with simultaneous de-embedded S/PDIF Digital Audio via a Coaxial output Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60Hz (Reduced... -
Page 8: Operation Controls And Functions

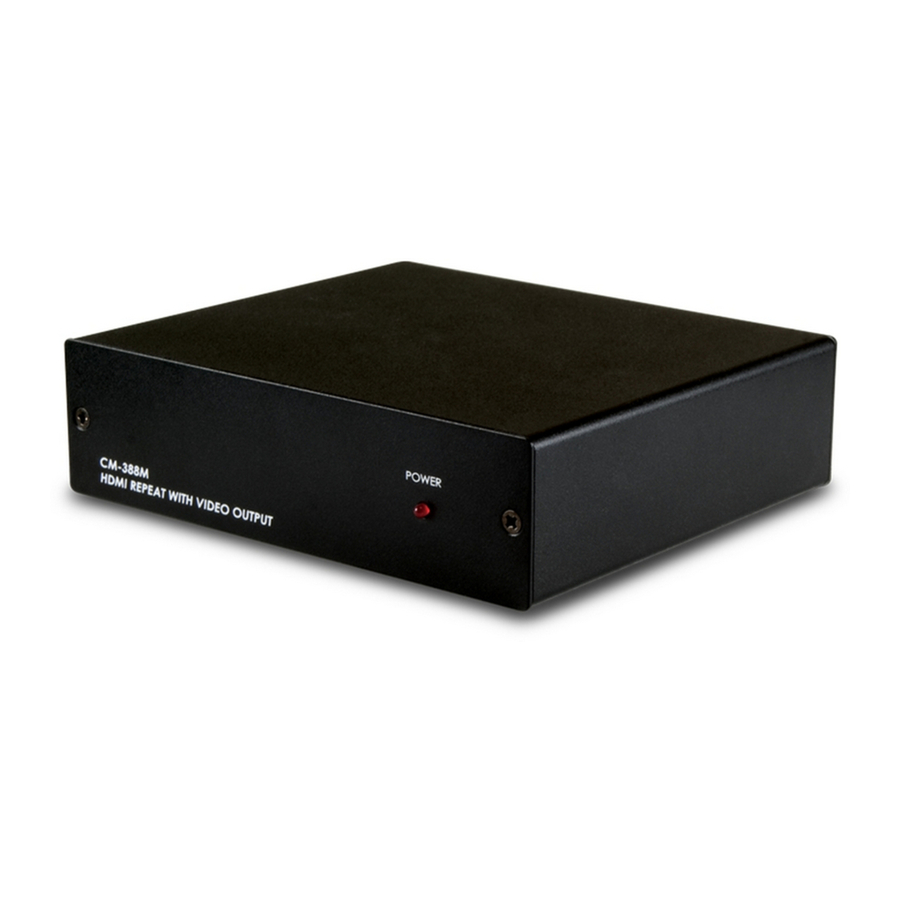

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER CM-388M HDMI REPEAT WITH VIDEO OUTPUT Power LED: The LED indicator will illuminate when the unit is connected with power supply. 6.2 Rear Panel NTSC COAXIAL COAXIAL VIDEO DC 5V IN... -
Page 9: Supported Resolutions
6.3 Supported Resolutions 480i60,p60 640x480@60,72,75,85 576i50,p50 720x400@70 720p50,p60 800x600@56,60,72,75,85 1080p24 1024x768@60,70,75,85 1080i50,i60 1152x864@70,75,85 1080p50,p60 1280x720@60cvt 1280x768@60RB,60 1280x800@60RB,60,75 1280x960@60 1280x1024@60,75 1366x768@60RB,60 1400x1050@60RB,60 1440x900@60RB,60,75 1600x900@60RB 1600x1200@60 1680x1050@60RB,60 1920x1200@60RB Note: DVI source input does not support 480i &576i. -
Page 10: Audio Chart
6.4 Audio Chart Video/Audio DVI (with DVI to HDMI HDMI adaptor) Source HDMI Embedded Audio Coaxial Input Audio Output HDMI Bypass (SR 44.1k , 48k , 96k) Coaxial Stereo L/Rx2 (Audio source is LPCM 2CH) -
Page 11: Video And Audio Conversion/Bypass Options
6.5 Video and audio conversion/bypass options Option A INPUT A Both video and audio from HDMI source* HDMI Bypass, output original video and audio from HDMI COAXIAL Output digital audio from HDMI OUTPUT A CV + L/R Audio Output analog video / audio converted from HDMI S-V + L/R Audio ... - Page 12 NOTE In Option A, the audio signal from Coaxial input will not be used. ** For DVI input or output you will need to use a HDMI to DVI adaptor or cable. *** Analog L/R audio outputs are not available when the audio input is Coaxial, please connect the analogue audio from the source to your amplifier or active speakers directly.
-
Page 13: Connection Diagram
7. CONNECTION DIAGRAM HD Camcorder HDMI Active Speakers Input Input Digital Audio Input (Coax) Analogue Stereo Output Composite Video Output Power Supply NTSC COAXIAL COAXIAL VIDEO DC 5V IN HDMI HDMI S-VIDEO INPUT OUTPUT S-Video Output Analogue Stereo Output HDMI Output Digital Audio Output... -
Page 14: Specifications
8. SPECIFICATIONS Input Ports 1× HDMI, 1×Coaxial Output Ports 1×HDMI, 1×Coaxial, 1×Composite-Video, 1×R/L 1×S-Video, 1×R/L Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 141 mm (W)×127 mm (D)×38 mm (H) Weight 510 g Chassis Material Aluminum Silkscreen Color Black Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F Storage Temperature... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
