Filter Assembly; Blower Housing; Back Cover - Kenmore 796.8051 Service Manual

Electric & gas dryer
Hide thumbs

Advertisement

Table of Contents

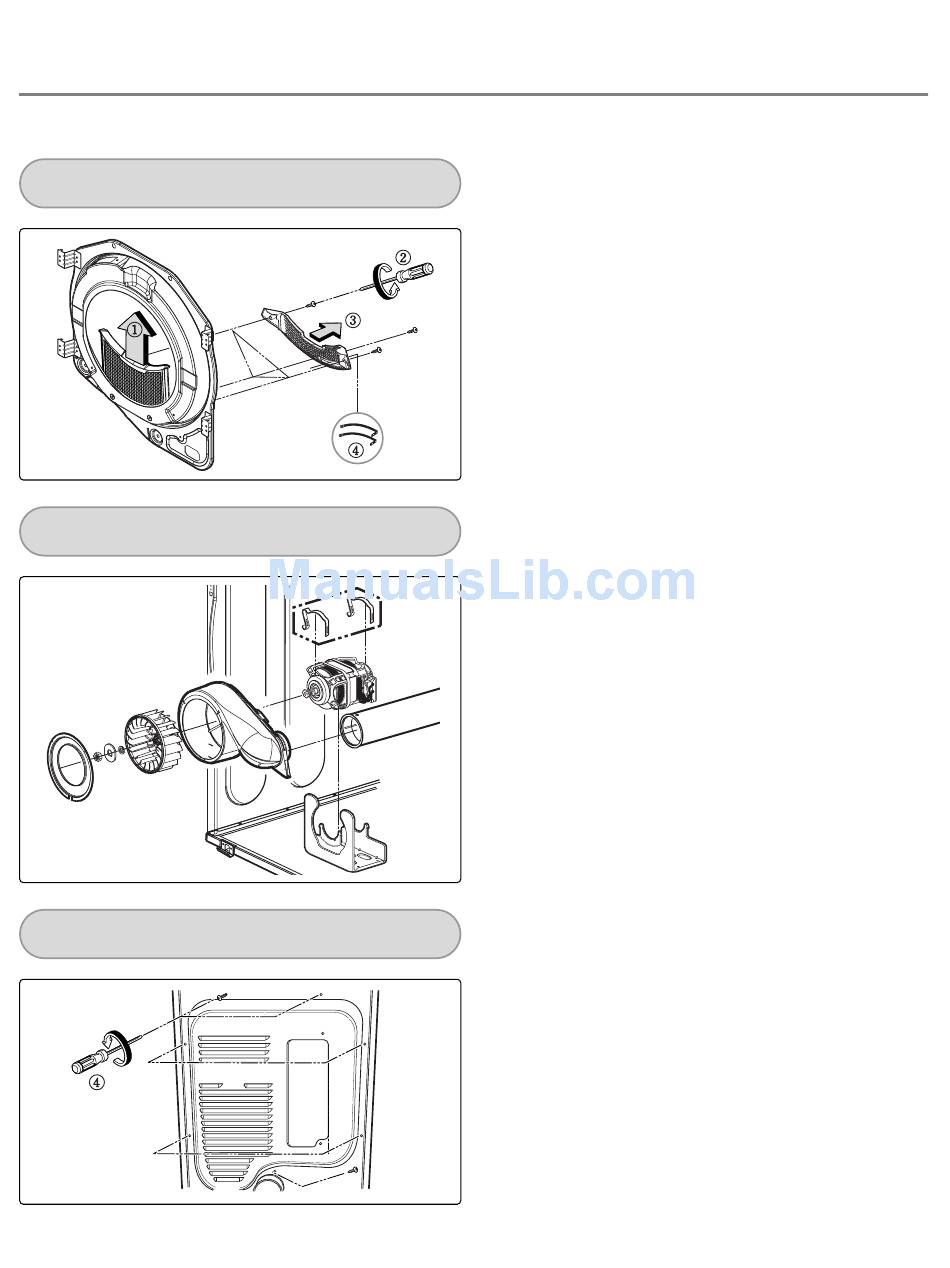

FILTER ASSEMBLY

BLOWER HOUSING

BACK COVER

1.
Remove the filter.
2.
Remove 3 screws.
3.
Pull the grill.
4.
Disconnect electro sensor.
1.
Open the top plate.
2.
Remove the Cover Cabinet and Tub Drum [Front].
3.
Remove the Drum assembly.
4.
Remove 2 screws and cover(Air guide).
5.
Remove the bolt and washer.
6.
Pull the fan.
7.
Disconnect the motor clamp and motor.
1.
Open the top plate.
2.
Remove the Cover Cabinet and Tub Drum [Front].
3.
Remove the Drum assembly.
4.
Remove 7 screws.
5.
Pull the Tub Drum [Rear] towards the front.
33
