Air Duct - Kenmore 796.8051 Service Manual

Electric & gas dryer
Hide thumbs

Advertisement

Table of Contents

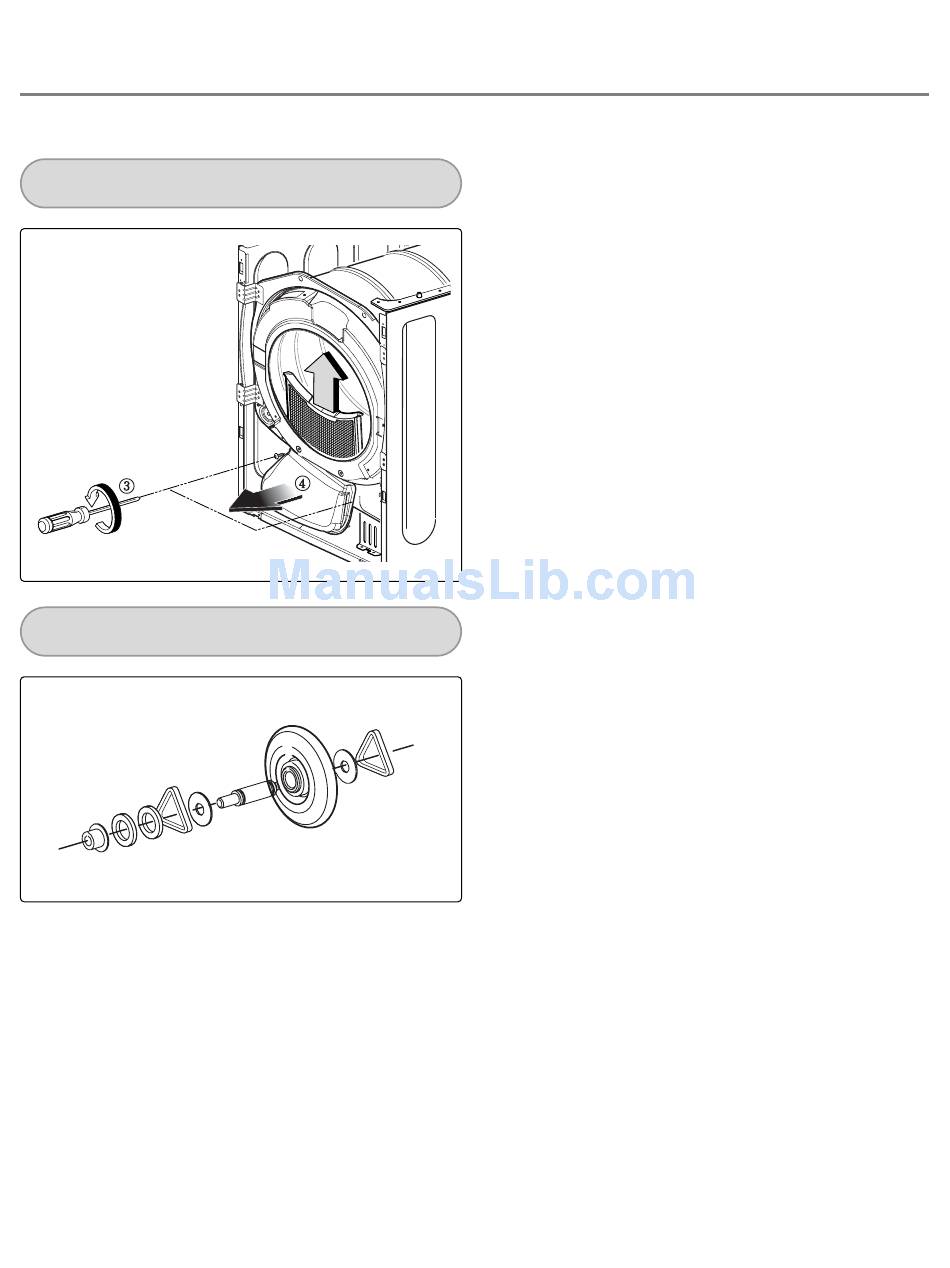

AIR DUCT

ROLLERS
1.
Open the top plate.
2.
Remove the Cover Cabinet.
3.
Remove filter and 2 screws.
4.
Pull the air duct towards the front.
1.
Open the top plate.
2.
Remove the Cover Cabinet and Tub Drum [Front].
3.
Remove the Drum assembly and Tub Drum [Rear].
4.
Disconnect Air duct from the Tub Drum [Front].
5.
Remove the roller from the Tub Drum [Front]
and Tub Drum [Rear].
