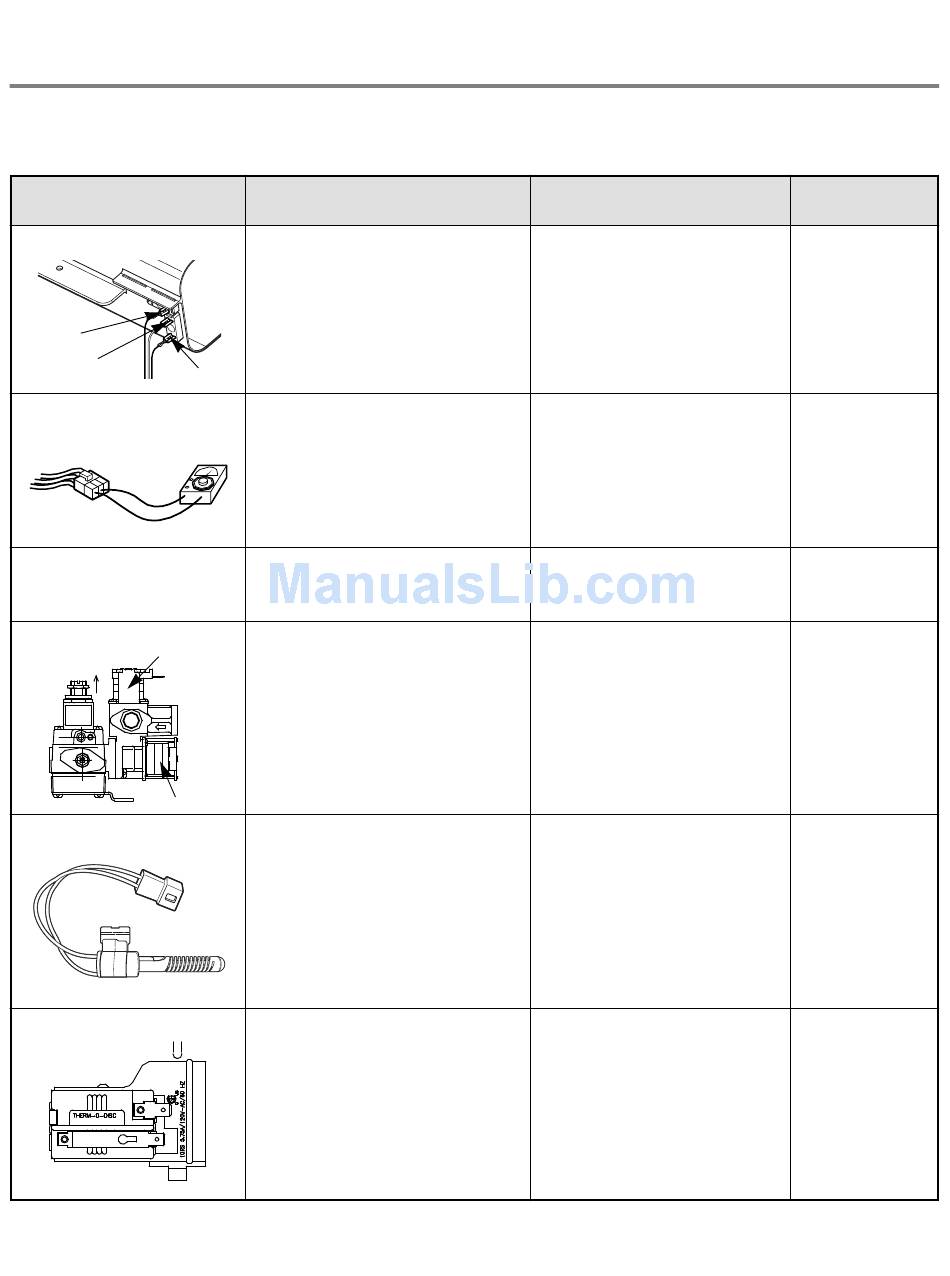

Component
7. Heater
8. Thermistor
9. Motor
10. Gas valve
valve 1
valve 2
11. Igniter
12. Frame Detect
Test Procedure
Measure resistance of the
following terminal
① Terminal : 1 (COM) - 2
② Terminal : 1 (COM) - 3
③ Terminal : 2 - 3
Measure resistance of terminal
to terminal
Temperature condition :
58°F ~ (10~40°C)
58°F ~ 104F (10~40°C)
Measure resistance of the
following terminal
① Valve 1 terminal
② Valve 2 terminal
Measure resistance of terminal
to terminal
Measure resistance of terminal
to terminal
① Open at 370°F ((Maximum)
② Close at 320°F
Check result
① Resistance value : 10Ω
② Resistance value : 10Ω
③ Resistance value : 20Ω
Resistance value : 10Ω
① Resistance value : > 1.5kg ~
② Resistance value :
> 1.5~2.5kg
Resistance value : 100~800Ω • Gas type
① Resistance value ≒ ∞
② Resistance value < 1Ω
11
Remark
• Electric type
• Heater case -
Hi limit
• Electric type
• See Page 13
• Gas type
• Gas type
