Test 5

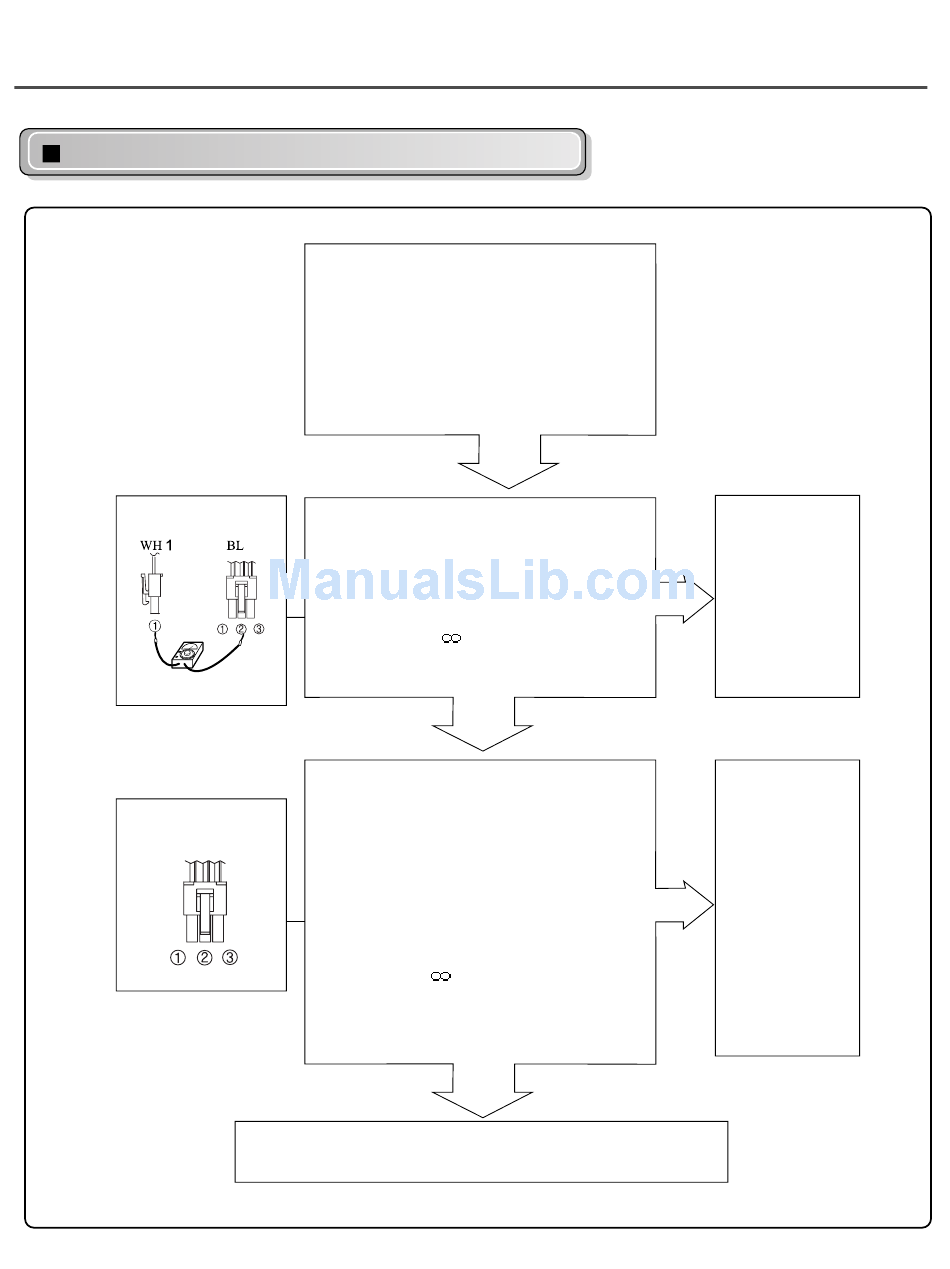

Door switch test
3
BL3
Disconnect the WH1 and BL3
connector from the main PCB.
Measure the resistance between
the NA6-6 (GN) pin and a chassis
ground screw. Is the resistance <1
Ω ?
Disconnect the WH1 and BL3
connector from the main PCB.
Measure the resistance between
WH1-1 (WH) and BL3-3 (YL). Is the
resistance < 1 Ω with the door
closed and
open?
*Skip this step if the dryer does not
have a drum light.
Disconnect the BL3 and the black
tab relay connectors from the main
PCB. Measure the resistance
between BL3-3 (YL) and the BK wire
on the black tab relay connector. Is
the resistance <1 Ω with the door
opened and
closed?
Refer to the individual door switch and light
bulb/socket component tests.
NO
Ω with the door
NO
Ω with the door
YES
23
•Replace the
main PCB.
YES
•Replace the
light bulb.
•Replace the
light socket.
NO
