Hardware Contents; Replacement Parts List - Procom FBD28TCC-M-HC User Manual

AA
BB
CC
DD
EE
WARNING: When tightening screws, do not over tighten, this may cause
threads to strip. We recommend using a hand-held screwdriver rather than
a power screwdriver.
WARNING: Do not force screws into holes.
CAUTION: For corner installations(optional); if baseboards are installed
where the fireplace is intended to be displayed, the fireplace will not fit flush
against the wall. For a proper flush fit, it may be necessary to remove part
of the baseboard mold.

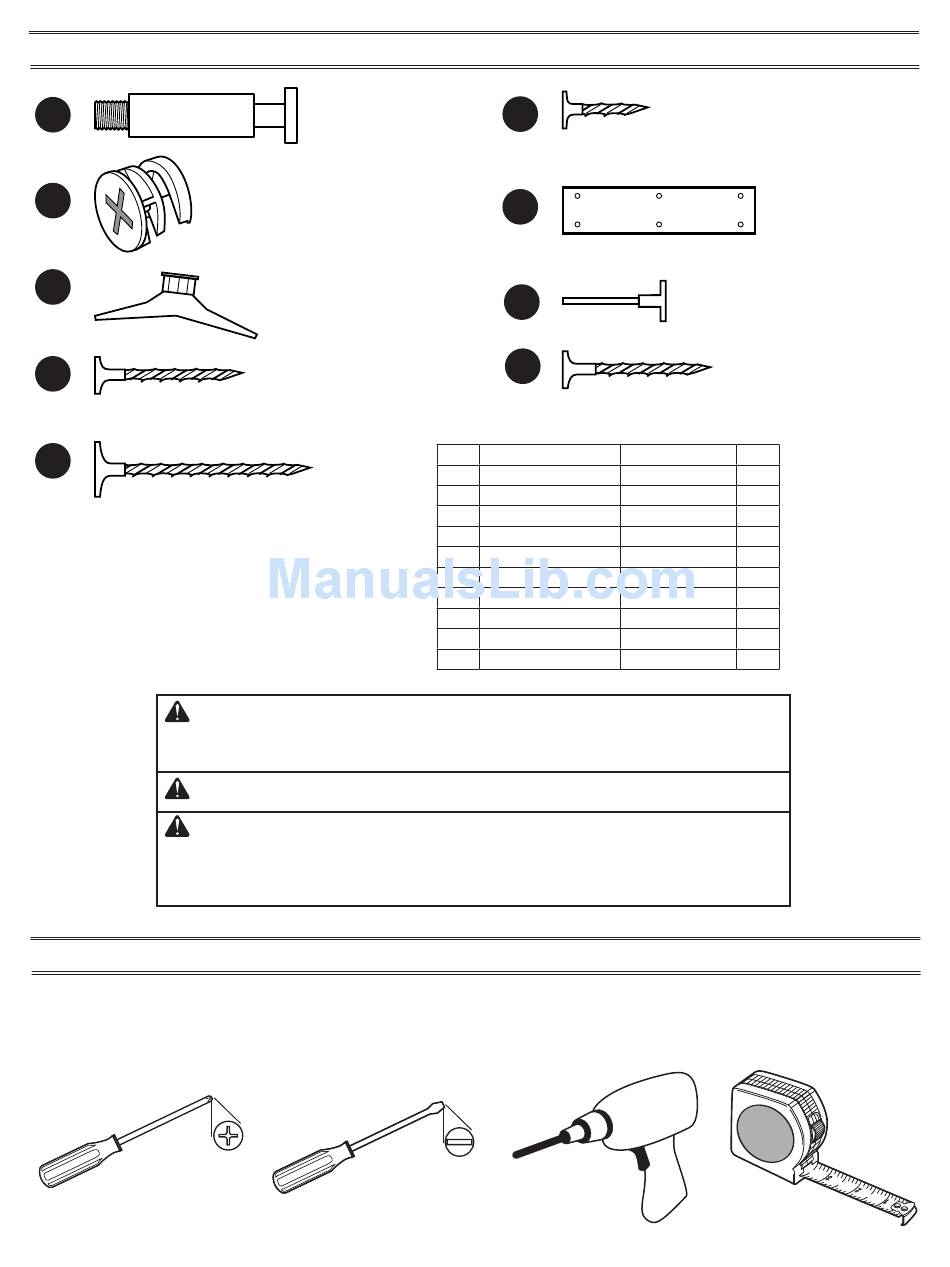

Before beginning assembly of product, make sure all hardware contents parts are present. Compare parts with package contents list and diagram
on page 4. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly: Phillips Screwdriver, Flathead Screwdriver, Drill, and Tape Measure.
200087-01A

HARDWARE CONTENTS

FF
GG
HH
II

REPLACEMENT PARTS LIST

Item Description
Hardware Package
AA Cam Dowel
BB Cam Lock
CC Wall Anchor
DD ST4 Screw 1
EE ST5 Screw 2
FF ST4 Screw 5/8"
GG Connector Bracket
HH White Key
II ST4 Screw 1
