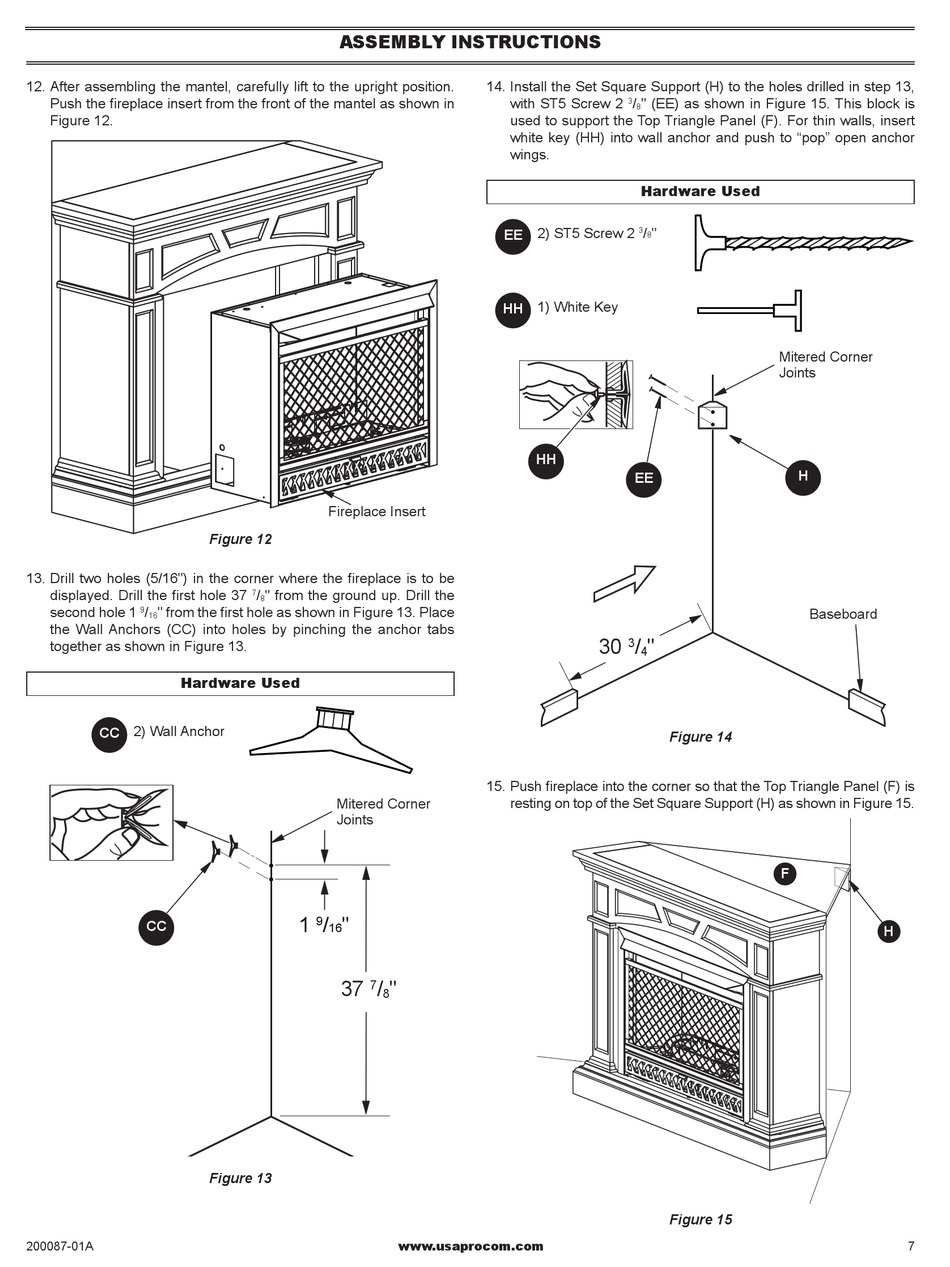

12. After assembling the mantel, carefully lift to the upright position.
Push the fireplace insert from the front of the mantel as shown in
Figure 12.
13. Drill two holes (5/16") in the corner where the fireplace is to be
displayed. Drill the first hole 37
second hole 1 / " from the first hole as shown in Figure 13. Place
9
16
the Wall Anchors (CC) into holes by pinching the anchor tabs
together as shown in Figure 13.
Hardware Used
2) Wall Anchor
CC
CC
200087-01A
ASSEMBLY INSTRUCTIONS
Fireplace Insert
Figure 12
/ " from the ground up. Drill the
7
8
Mitered Corner
Joints
1 / "
9
16
37 /
41 7 /
1
8 2
Figure 13
14. Install the Set Square Support (H) to the holes drilled in step 13,
with ST5 Screw 2
used to support the Top Triangle Panel (F). For thin walls, insert
white key (HH) into wall anchor and push to "pop" open anchor
wings.
2) ST5 Screw 2
EE
1) White Key
HH
HH
15. Push fireplace into the corner so that the Top Triangle Panel (F) is
resting on top of the Set Square Support (H) as shown in Figure 15.
"
"
www.usaprocom.com
/ " (EE) as shown in Figure 15. This block is
3
8
Hardware Used
/ "
3
8
EE
30 / "
31 / "
3
1
2
4
Figure 14
Figure 15
Mitered Corner
Joints
H
Baseboard
F
H
