Select Access Control -> Schedule from the menu; you can view and set
S
CHEDULE
a schedule list in the next screen, as shown in
is necessary for Access Control Rules.

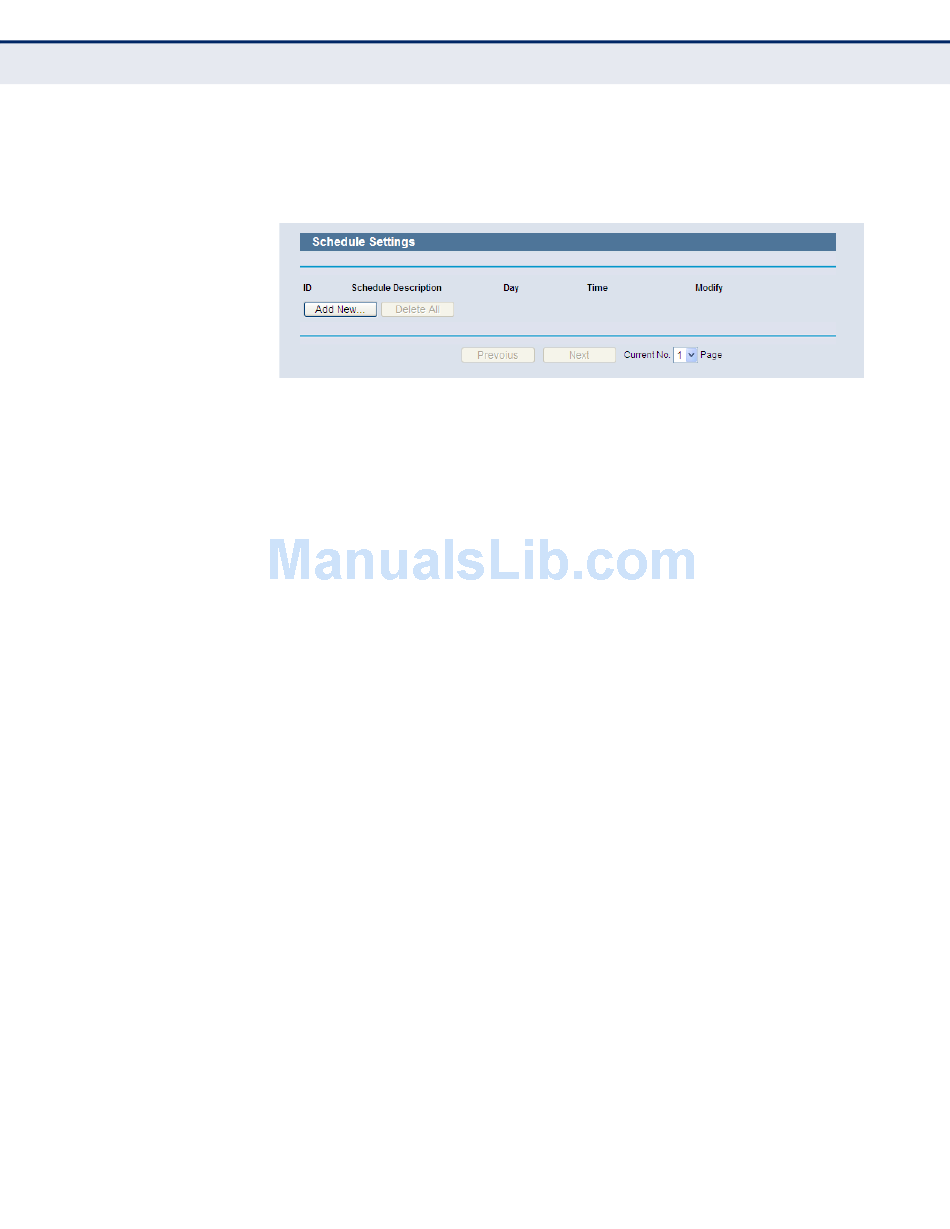

Figure 86: Schedule Settings

Schedule Description - Here displays the description of the schedule
◆
and this description is unique.
Day - Here displays the day(s) in a week.
◆
◆ Time - Here displays the time period in a day.
Modify - Here you can edit or delete an existing schedule.
◆
To add a new schedule, follow the steps below.
Click the "Add New" button shown in
1.
pop-up as shown in
In Schedule Description field, create a unique description for the
2.
schedule (e.g. Schedule_1).
In Day field, select the day or days you need.
3.
In Time field, you can select all day-24 hours or you may enter the
4.
Start Time and Stop Time in the corresponding field.
Click Save to complete the settings.
5.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button
return to the previous page.
C
HAPTER
Figure 86
Figure 87.
– 97 –
| Configuring the Router
4
Access Control
Figure 86. The schedule list
and the next screen will
