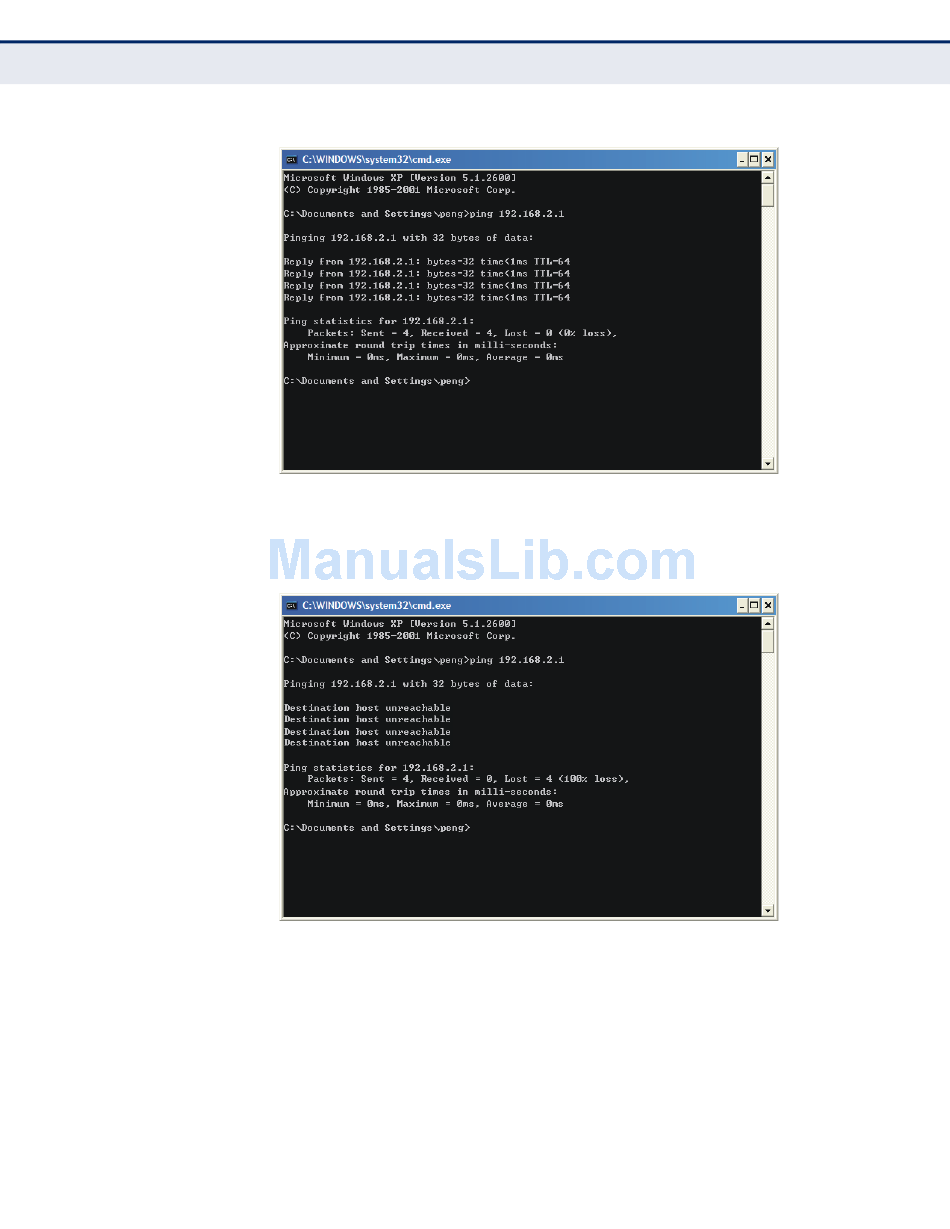

Figure 5: Success Result of a Ping Command

If the result displayed is similar to
between your PC and the Router has failed.

Figure 6: Failure of a Ping Command

Follow these steps to check the connection:
Is the connection between your PC and the Router correct?
1.
The LAN port LED on the Router and the LED on your PC's adapter
should be on.
Is the TCP/IP configuration for your PC correct?
2.
– 33 –
| Quick Installation Guide
C 3
HAPTER
TCP/IP Configuration
Figure 6, it means the connection
