USER GUIDE

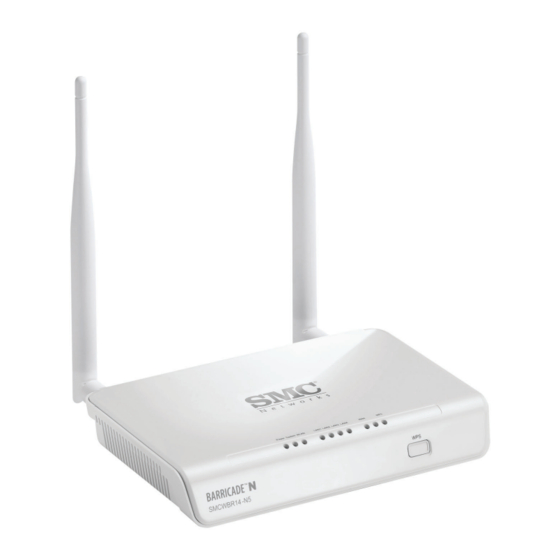

BARRICADE™ N
150Mbps 4-Port Wireless Broadband Router
SMCWBR14S-N5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMCWBR14S-N5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks SMCWBR14S-N5

Summary of Contents for SMC Networks SMCWBR14S-N5

  • Page 1: User Guide

    USER GUIDE BARRICADE™ N 150Mbps 4-Port Wireless Broadband Router SMCWBR14S-N5...
  • Page 2 Wireless Broadband Router User Guide No. 1, Creation Road III, Hsinchu Science Park, 30077, Taiwan, R.O.C. TEL: +886 3 5638888 E012013-AP-R06 Fax: +886 3 6686111...
  • Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.

  • Page 4: Warranty And Product Registration

    ARRANTY AND RODUCT EGISTRATION To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http:// www.smc.com. – 4 –...

  • Page 5: Compliances

    OMPLIANCES EDERAL OMMUNICATION OMMISSION NTERFERENCE TATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6 “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”...
  • Page 7 Country Restriction Reason/Remark Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny- Ålesund Russian None Only for indoor applications Federation Do not use the product outdoors in France. - EU D UROPE ECLARATION OF...
  • Page 8 Hierbij verklaart SMC Networks dat het toestel Radio LAN device in overeenstemming is Nederlands met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG Bij deze SMC Networks dat deze Radio LAN device voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC. English Hereby, SMC Networks, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 9 SMC Networks týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a Slovensky všetky príslušné ustanovenia Smernice 1999/5/ES. Slovenian SMC Networks izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in Slovensko ostalimi relevantnimi določili direktive 1999/5/ES. Spanish Por medio de la presente SMC Networks declara que el Radio LAN device cumple con Español...
  • Page 10 Proper space for heat dissipation is necessary to avoid any damage ◆ caused by device overheating. The ventilation holes on the device are designed for heat dissipation to ensure that the device works normally. Do not cover these ventilation holes. Do not put this device close to a place where a heat source exits or high ◆...
  • Page 11 ß ICHERHEITSMA NAHMEN Lesen Sie vor der Inbetriebnahme des Gerätes aufmerksam die nachstehenden Informationen. Bitte befolgen Sie die nachstehenden Sicherheitsmaßnahmen, damit das Gerät nicht beschädigt wird oder Gefahren durch Brand oder elektrische Energie entstehen: ◆ Verwenden Sie nur das beim Gerät mitgelieferte Netzteil. Achten Sie auf die Last der Steckdose oder des Verlängerungskabels.
  • Page 12 Deje un espacio adecuado para que se disipe el calor y evitar así ◆ cualquier daño en el dispositivo causado por sobrecalentamiento. Los orificios de ventilación del dispositivo están diseñados para disipar el calor y garantizar que dicho dispositivo funciona con normalidad. No tape estos orificios de ventilación.
  • Page 13 移除撥號軟體：若您已經安裝 ISP 所提供的 ADSL 撥接（號）軟體，請先將其移除后 再開始進行連線設定。 系統需求：本產品只需要使用網頁瀏覽器 （Browser）來進行設定安裝，不需要額 外安裝任何程式，在開始設定之前，建議您使用 Internet Explorer 6.0 或更新的 版本來進行安裝設定。 設定時無需連上網際網路 （Internet） ，只需要透過區域連線 （LAN）即可進行設 定。 ※ 僅需從電腦端拉一條網路線連接至 SMCWBR14S-N5 的 LAN 埠，WAN 埠則先不 要連上 ISP 線路。此動作作用是用來確認您可以正常連到此設備。 SMCWBR14S-N5 只需要設定一次 ， 其餘要透過 SMCWBR14S-N5 的電腦或者設備只需要做 相關的 TCP/IP 設定即可。 – 13 –...

  • Page 14: About This Guide

    BOUT UIDE This guide details the hardware features of the wireless router, including its URPOSE physical and performance-related characteristics, and how to install the device and use its configuration software. This guide is for PC users with a working knowledge of computers. You UDIENCE should be familiar with Windows operating system concepts.
  • Page 15 BOUT UIDE Add BSMI Notice to the Compliances section. ◆ 2012 R EPTEMBER EVISION This is the fourth revision of this guide. It includes the following change: ◆ Updated the Compliances section. 2011 R OVEMBER EVISION This is the third revision of this guide. It includes the following change: Updated the Compliances section.

  • Page 16: Table Of Contents

    ONTENTS ARRANTY AND RODUCT EGISTRATION OMPLIANCES BOUT UIDE ONTENTS IGURES ABLES NTRODUCTION Overview of the Router Main Features Key Hardware Features Package Contents Front Panel LED Indicators WPS Button Rear Panel Wireless Antennas Power Ethernet WAN Port Ethernet LAN Ports ONNECTING THE OUTER System Requirements...
  • Page 17 ONTENTS Quick Installation Guide ONFIGURING THE OUTER Login Status Quick Setup Operation Mode Network MAC Clone (Router Mode Only) Wireless Wireless Settings (Router Mode) Wireless Settings (Client Mode) Wireless Security Wireless MAC Filtering Wireless Advanced Wireless Statistics DHCP DHCP Settings DHCP Clients List Address Reservation Forwarding...
  • Page 18 ONTENTS Rule Host Target Schedule Advanced Routing Bandwidth Control IP & MAC Binding Binding Setting ARP List DDNS System Tools Time Settings Diagnostic Firmware Upgrade Factory Defaults Backup & Restore Reboot Password System Log Statistics ONFIGURING THE Install TCP/IP Components B FAQ How do I configure the Router for Internet access by ADSL users? How do I configure the Router for Internet access by Ethernet users?

  • Page 19: Figures

    IGURES Figure 1: Front Panel Figure 2: Rear Panel Figure 3: Router Mode Figure 4: Client Router Mode Figure 5: Success Result of a Ping Command Figure 6: Failure of a Ping Command Figure 7: Log in to the Router Figure 8: Windows Login Figure 9: Quick Setup Figure 10: Operation Mode...

  • Page 20: Figure 10: Operation Mode

    ONTENTS Figure 32: Operation Mode Figure 33: The Network Menu Figure 34: LAN Figure 35: WAN-Dynamic IP Figure 36: WAN-Static IP Figure 37: WAN-PPPoE Figure 38: WAN-PPPoE Advanced Settings Figure 39: WAN-L2TP Figure 40: WAN-PPTP Figure 41: MAC Address Clone Figure 42: Wireless Menu Figure 43: Wireless Settings (Router Mode) Figure 44: Note Dialog...
  • Page 21 ONTENTS Figure 68: The Security Menu Figure 69: Basic Security Figure 70: Advanced Security Figure 71: Local Management Figure 72: Remote Management Figure 73: Parental Control Settings Figure 74: Add or Modify Parental Control Entry Figure 75: Parental Control Settings Figure 76: Access Control Figure 77: Access Control Rule Management Figure 78: Add or Modity Internet Access Control Entry...
  • Page 22 ONTENTS Figure 104: Restore Factory Default Figure 105: Backup & Restore Configuration Figure 106: Reboot Figure 107: Password Figure 108: System Log Figure 109: Mail Account Settings Figure 110: Statistics Figure 111: TCP/IP Figure 112: Internet Protocol Figure 113: Internet Protocol Properties Figure 114: Setting the IP Address Manually Figure 115: PPPoE Connection Type Figure 116: PPPoE Connection Mode...

  • Page 23: Tables

    ABLES Table 1: Key Hardware Features Table 2: LED Behavior – 23 –...

  • Page 24: Introduction

    NAT router, and wireless access point (AP). NCREDIBLE PEED The SMCWBR14S-N5 provides up to 150 Mbps wireless connections with other 802.11n wireless clients, and the speed makes the routers ideal for handling multiple data streams at the same time, which ensures your network remains stable and smooth.

  • Page 25: Main Features

    | Introduction HAPTER Main Features EATURES IEEE 802.11n wireless technology provides a wireless data rate of up to ◆ 150 Mbps. One 10/100 Mbps Auto-Negotiation RJ-45 WAN port, four 10/100 Mbps ◆ Auto-Negotiation RJ-45 LAN ports, supporting Auto MDI/MDIX. Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES ◆...

  • Page 26: Package Contents

    | Introduction HAPTER Package Contents ACKAGE ONTENTS The following items should be found in your package: SMCWBR14S-N5 150Mbps 4-Port Wireless Broadband Router, ◆ AC Power Adapter ◆ Quick Installation Guide ◆ Resource CD, including: ◆ This Guide ◆ ◆ Other Helpful Information Make sure that the package contains the above items.

  • Page 27: Wps Button

    | Introduction HAPTER Rear Panel Table 2: LED Behavior (Continued) Status Description There is a device linked to the corresponding port, but LAN (1-4) there is no activity. Blinking There is an active device linked to the corresponding port. There is no device linked to the corresponding port. A wireless device has been successfully added to the network by WPS.

  • Page 28: Ethernet Wan Port

    | Introduction HAPTER Rear Panel This WAN port is where you connect the DSL/cable Modem. WAN P THERNET LAN1,2,3,4: These ports (1, 2, 3, 4) connect the Router to local PCs. THERNET ORTS – 28 –...

  • Page 29: Onnecting The Outer

    ONNECTING THE OUTER YSTEM EQUIREMENTS You must meet the following minimum requirements: Broadband Internet Access Service (DSL/Cable/Ethernet) ◆ One DSL/Cable Modem that has an RJ-45 connector. ◆ PCs with working Ethernet adapters and Ethernet cables with RJ-45 ◆ connectors. TCP/IP protocol on each PC. ◆...

  • Page 30: Connecting The Router In Client Mode

    | Connecting the Router HAPTER Connecting the Router Locate an optimum location for the Router. The best place is usually at the center of your network. The place must meet the Installation Environment Requirements. Adjust the direction of the antennas. Normally, upright is the best direction.

  • Page 31: Figure 4: Client Router Mode

    | Connecting the Router HAPTER Connecting the Router Figure 4: Client Router Mode Noteboook WISP Signal – 31 –...

  • Page 32: Quick Installation Guide

    UICK NSTALLATION UIDE This chapter shows you how to quickly configure the basic functions of your Router using the Quick Setup Wizard. TCP/IP C ONFIGURATION The default IP address of the Router is 192.168.2.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire.

  • Page 33: Q Uick I Nstallation G Uide

    | Quick Installation Guide HAPTER TCP/IP Configuration Figure 5: Success Result of a Ping Command If the result displayed is similar to Figure 6, it means the connection between your PC and the Router has failed. Figure 6: Failure of a Ping Command Follow these steps to check the connection: Is the connection between your PC and the Router correct? The LAN port LED on the Router and the LED on your PC's adapter...

  • Page 34: Quick Installation Guide

    | Quick Installation Guide HAPTER Quick Installation Guide If the Router's IP address is 192.168.2.1, your PC's IP address must be within the range of 192.168.2.2 ~ 192.168.2.254. UICK NSTALLATION UIDE Using the Web-based utility, it is easy to configure and manage the Router. The Web-based utility can be used on any Windows, Macintosh, or UNIX system with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox, or Apple Safari.

  • Page 35: Figure 9: Quick Setup

    | Quick Installation Guide HAPTER Quick Installation Guide Figure 9: Quick Setup After successfully logging in, click “Quick Setup” to quickly configure your Router. Select Wireless Router mode for an Internet connection through a DSL/cable modem connected to the WAN port. Select Wireless Client Router mode for an Internet connection through a wireless service provider.

  • Page 36: Figure 12: Quick Setup - Pppoe

    | Quick Installation Guide HAPTER Quick Installation Guide Figure 12: Quick Setup – PPPoE User Name and Password — Enter the User Name and ● Password provided by your ISP. These fields are case sensitive. If you have difficulty with this process, contact your ISP. If the connection type detected is Dynamic IP, the screen shown in Figure 14 will display.

  • Page 37: Figure 14: Quick Setup - Wireless

    | Quick Installation Guide HAPTER Quick Installation Guide Figure 14: Quick Setup – Wireless Wireless Radio - Enable or disable the wireless radio choosing ■ from the pull-down list. SSID - Enter a value of up to 32 characters. The same name of ■...

  • Page 38: Figure 15: Quick Setup - Finish

    | Quick Installation Guide HAPTER Quick Installation Guide the Router without encryption. It is recommended strongly that you choose one of following options to enable security. WPA-PSK/WPA2-PSK - Select WPA based on pre-shared ■ passphrase. PSK Password - You can enter ASCII or Hexadecimal characters. ●...

  • Page 39: Figure 16: Quick Setup - Finish

    | Quick Installation Guide HAPTER Quick Installation Guide Figure 16: Quick Setup - Finish – 39 –...

  • Page 40: Configuring The Router

    ONFIGURING THE OUTER This chapter shows each Web page's key functions and the configuration method. OGIN After successful login, you see the main menu on the left of the Web page. On the right, there are the corresponding explanations and instructions. Figure 17: The Main Menu The detailed explanations for each Web page’s key functions are listed below.

  • Page 41: Status

    | Configuring the Router HAPTER Status TATUS The Status page provides the current status information about the Router. All information is read-only. Figure 18: Status – 41 –...

  • Page 42: Quick Setup

    | Configuring the Router HAPTER Quick Setup UICK ETUP Refer to “Quick Installation Guide” on page This section shows how to quickly add a new wireless device to an existing network using WPS (Wi-Fi Protected Setup). Select WPS from the menu. You will see the next screen, as shown in Figure Figure 19: WPS (Wi-Fi Protected Setup) WPS Status - Enable or disable the WPS function here.

  • Page 43: Figure 20: Front Panel

    | Configuring the Router HAPTER For the configuration of a new device, this example uses an SMC Wireless Adapter. If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC) method, you can add it to the network by PBC with the following two methods.

  • Page 44: Figure 22: Wps-Wireless Configuration Completed

    | Configuring the Router HAPTER Figure 22: WPS-Wireless Configuration Completed Method Two: Enable the WPS function from Web management page. Press the WPS button on the front panel of the Router. Figure 23: Front Panel For the configuration of the wireless adapter, select “Push the button on my access point”...

  • Page 45: Figure 24: Wps-Push The Button On My Access Point

    | Configuring the Router HAPTER Figure 24: WPS-Push the button on my access point Wait until the next screen appears. Click Finish to complete the WPS configuration. Figure 25: WPS-Wireless Configuration Completed Method Three: Keep the default WPS Status as Enabled and click the “Add device” button in Figure 26, then the following screen will appear.

  • Page 46: Figure 26: Add A New Device

    | Configuring the Router HAPTER Figure 26: Add A New Device Select “Press the button of the new device in two minutes” and click Connect. For the configuration of the wireless adapter, select “Push the button on my access point” in the WPS configuration utility, as below, and click Next.

  • Page 47: Figure 28: Wps-Wireless Configuration Completed

    | Configuring the Router HAPTER Figure 28: WPS-Wireless Configuration Completed If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN into my Router. Keep the default WPS Status as Enabled and click the “Add device”...

  • Page 48: Figure 30: Wps-Enter A Pin Into My Access Point

    | Configuring the Router HAPTER For the configuration of the wireless adapter, selected “Enter a PIN into my access point or a registrar” in the WPS configuration, as below, and click Next. Figure 30: WPS-Enter a PIN into my access point In this example, the default PIN code of the adapter is 16952898, as shown in the above figure.

  • Page 49: Operation Mode

    | Configuring the Router HAPTER Operation Mode Figure 31: WPS-Enter a PIN from my access point The default PIN code of the Router can be found on its label, or in the WPS configuration screen, as shown in Figure Then the new device successfully connected to the network. The WPS LED on the Router will turn on green for five minutes when a device has been successfully added to the network.

  • Page 50: Network

    | Configuring the Router HAPTER Network Wireless Router - In this mode, the device enables multiple users to ◆ share a single Internet connection through a DSL/cable modem. All wireless client users share the same Internet connection through the Ethernet WAN port as LAN port users. Wireless Client Router - In this mode, the device enables multiple ◆...

  • Page 51: Figure 35: Wan-Dynamic Ip

    | Configuring the Router HAPTER Network If you change the IP Address of LAN, you must use the new IP Address to login the Router. If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time, while the Virtual Server and DMZ Host will not take effect until they are re- configured.

  • Page 52: Figure 36: Wan-Static Ip

    | Configuring the Router HAPTER Network Use These DNS Servers - If your ISP gives you one or two DNS ◆ addresses, select Use These DNS Servers and enter the primary and secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP.

  • Page 53: Figure 37: Wan-Pppoe

    | Configuring the Router HAPTER Network Primary/Secondary DNS - (Optional) Enter one or two DNS ◆ addresses in dotted-decimal notation provided by your ISP. Click the Save button to save your settings. If your ISP provides a PPPoE connection, select PPPoE option. And you should enter the following parameters (Figure 37):...
  • Page 54 | Configuring the Router HAPTER Network Connect on Demand - In this mode, the Internet connection can be ◆ terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0”...

  • Page 55: Figure 38: Wan-Pppoe Advanced Settings

    | Configuring the Router HAPTER Network Figure 38: WAN-PPPoE Advanced Settings MTU Size - The default MTU size is “1480” bytes, which is usually fine. ◆ It is not recommended that you change the default MTU Size unless required by your ISP. Service Name/AC Name - The service name and AC (Access ◆...

  • Page 56: Figure 39: Wan-L2Tp

    | Configuring the Router HAPTER Network Figure 39: WAN-L2TP User Name/Password - Enter the User Name and Password provided ◆ by your ISP. These fields are case-sensitive. Dynamic IP/ Static IP - Choose either as you are given by your ISP. ◆...

  • Page 57: Figure 40: Wan-Pptp

    | Configuring the Router HAPTER Network Connect Manually - You can configure the Router to make it connect ◆ or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again.
  • Page 58 | Configuring the Router HAPTER Network Dynamic IP/ Static IP - Choose either as you are given by your ISP ◆ and enter the ISP’s IP address or the domain name. If you choose static IP and enter the domain name, you should also enter the DNS assigned by your ISP.

  • Page 59: Mac Clone

    | Configuring the Router HAPTER Wireless The Router can not detect PPTP/L2TP/BigPond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually. Choose menu “Network->MAC Clone”, you can configure the MAC MAC C LONE address of the WAN on the screen below,...

  • Page 60: Wireless Settings (Router Mode)

    | Configuring the Router HAPTER Wireless Figure 42: Wireless Menu Choose menu Wireless -> Wireless Setting; you can configure the basic IRELESS ETTINGS settings for the wireless network on this page. OUTER The wireless settings section displays configuration settings for the access point functionality of the Wireless AP/router.

  • Page 61: Figure 44: Note Dialog

    | Configuring the Router HAPTER Wireless other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the pull-down list, click the Save button, then the Note Dialog appears.

  • Page 62: Wireless Settings (Client Mode)

    | Configuring the Router HAPTER Wireless Max Tx Rate - You can limit the maximum transmit rate of the Router ◆ through this field. Enable Wireless Router Radio - The wireless radio of this Router can ◆ be enabled or disabled to allow wireless stations access. Enable SSID Broadcast - When wireless clients survey the local area ◆...

  • Page 63: Figure 46: Wireless Settings (Client Router Mode)

    | Configuring the Router HAPTER Wireless Figure 46: Wireless Settings (Client Router Mode) SSID - The SSID of the AP your Router is going to connect to as a ◆ client. You can also use the survey function to select the SSID to join. ◆...

  • Page 64: Wireless Security

    | Configuring the Router HAPTER Wireless SSID - Enter a value of up to 32 characters. The same SSID (Service ◆ Set Identification) must be assigned to all wireless devices in your network. The default SSID is set to be “SMC”. This value is case- sensitive.

  • Page 65: Figure 47: Wireless Security

    | Configuring the Router HAPTER Wireless Figure 47: Wireless Security Disable Security - If you do not want to use wireless security, select ◆ this check box. However, it is strongly recommended to choose one of the following modes to enable security. WEP - This security is based on the IEEE 802.11 standard.
  • Page 66 | Configuring the Router HAPTER Wireless Type - you can choose the type for the WEP security on the pull- ■ down list. The default setting is Automatic, which can select Open System or Shared-Key authentication type automatically based on the wireless station's capability and request.

  • Page 67: Figure 49: Wpa/Wpa2

    | Configuring the Router HAPTER Wireless Figure 49: WPA/WPA2 Radius Server IP - Enter the IP address of the RADIUS Server. ■ Radius Port - Enter the port that the RADIUS service uses. ■ Radius Password - Enter the password for the RADIUS server. ■...

  • Page 68: Wireless Mac Filtering

    | Configuring the Router HAPTER Wireless Group Key Update Period - Specify the group key update interval ■ in seconds. The value should be 30 or above. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. Choose Wireless ->...

  • Page 69: Figure 52: Add Or Modify Wireless Mac Address Filtering Entry

    | Configuring the Router HAPTER Wireless Figure 52: Add or Modify Wireless MAC Address Filtering Entry To add or modify a MAC Address Filtering entry, follow these instructions: Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit).

  • Page 70: Wireless Advanced

    | Configuring the Router HAPTER Wireless Delete all or disable all entries if there are any entries already. Click the Add New button. Enter the MAC address 00-0A-EB-00-07-8A /00-0A-EB-00-23-11 in the MAC Address field. Enter wireless station A/B in the Description field. Select Enabled in the Status pull-down list.
  • Page 71 | Configuring the Router HAPTER Wireless Transmit Power - Here you can specify the transmit power of the ◆ Router. You can select High, Middle, or Low. High is the default setting and is recommended. ◆ Beacon Interval - Enter a value between 20-1000 milliseconds for the Beacon Interval.

  • Page 72: Wireless Statistics

    | Configuring the Router HAPTER DHCP Select Wireless -> Wireless Statistics from the menu; you can see the IRELESS TATISTICS MAC Address, Current Status, Received Packets, and Sent Packets for each connected wireless station. Figure 55: Wireless Statistics MAC Address - The connected wireless station's MAC address. ◆...

  • Page 73: Dhcp Settings

    | Configuring the Router HAPTER DHCP Select DHCP -> DHCP Settings from the menu. You can configure the DHCP S ETTINGS DHCP Server on the page, as shown in Figure 57. The Router is set up by default as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are connected to the Router on the LAN.

  • Page 74: Dhcp Clients List

    | Configuring the Router HAPTER DHCP To use the DHCP server function of the Router, you must configure all computers on the LAN as "Obtain an IP Address automatically" mode. Select DHCP -> DHCP Clients List from the menu; you can view the DHCP C LIENTS information about the clients attached to the Router in the next screen...

  • Page 75: Figure 59: Address Reservation

    | Configuring the Router HAPTER DHCP Figure 59: Address Reservation MAC Address - The MAC address of the PC for which you want to ◆ reserve an IP address. Assigned IP Address - The reserved IP address for the PC. ◆...

  • Page 76: Forwarding

    | Configuring the Router HAPTER Forwarding Click the Delete All button to delete all entries. Click the Next button to go to the next page and click the Previous button to return the previous page. ORWARDING There are four submenus under the Forwarding Application menu (shown Figure 61): Virtual Servers, Port Triggering, DMZ, and UPnP.

  • Page 77: Figure 63: Add Or Modify A Virtual Server Entry

    | Configuring the Router HAPTER Forwarding Status - The status of this entry either Enabled or Disabled. ◆ To setup a virtual server entry: Click the Add New… button. (Figure Select the service you want to use from the Common Service Port list.

  • Page 78: Port Triggering

    | Configuring the Router HAPTER Forwarding Click the Next button to go to the next page and click the Previous button to return the previous page. If you set the service port of the virtual server as 80, you must set the Web management port on “Security –>...

  • Page 79: Figure 65: Add Or Modify A Triggering Entry

    | Configuring the Router HAPTER Forwarding Incoming Ports Range - The port or port range used by the remote ◆ system when it responds to the outgoing request. A response using one of these ports will be forwarded to the PC that triggered this rule. You can input at most 5 groups of ports (or port section).

  • Page 80: Dmz

    | Configuring the Router HAPTER Forwarding Modify the information. Click the Save button. Click the Enable All button to make all entries enabled Click the Disabled All button to make all entries disabled. Click the Delete All button to delete all entries When the trigger connection is released, the according opening ports will be closed.

  • Page 81: Upnp

    | Configuring the Router HAPTER Forwarding Select Forwarding -> UPnP from the menu; you can view the information about UPnP (Universal Plug and Play) in the screen (shown in Figure 67). The UPnP feature allows devices, such as Internet computers, to access the local host resources or devices as needed.

  • Page 82: Security

    | Configuring the Router HAPTER Security ECURITY There are four submenus under the Security menu as shown in Figure Basic Security, Advanced Security, Local Management and Remote Management. Click any of them, and you will be able to configure the corresponding function.

  • Page 83: Advanced Security

    | Configuring the Router HAPTER Security IPSec Passthrough - Internet Protocol Security (IPSec) is a suite ■ of protocols for ensuring private, secure communications over Internet Protocol (IP) networks, through the use of cryptographic security services. To allow IPSec tunnels to pass through the Router, keep the default, Enabled.
  • Page 84 | Configuring the Router HAPTER Security Packets Statistics Interval (5~60) - The default value is 10. Select ◆ a value between 5 and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics.

  • Page 85: Local Management

    | Configuring the Router HAPTER Security Select Security->Local Management from the menu; you can configure OCAL ANAGEMENT the management rules in the screen, as shown in Figure 71. The management feature allows you to deny computers in the LAN from accessing the Router.

  • Page 86: Parental Control

    | Configuring the Router HAPTER Parental Control Web Management Port - Web browser access normally uses the ◆ standard HTTP service port 80. This Router's default remote management web port number is 80. For greater security, you can change the remote management web port to a custom port by entering that number in the box provided.
  • Page 87 | Configuring the Router HAPTER Parental Control Parental Control - Check Enable if you want this function to take ◆ effect, otherwise check Disable. MAC Address of Parental PC - In this field, enter the MAC address of ◆ the controlling PC, or you can make use of the “Copy To Above” button below.

  • Page 88: Figure 74: Add Or Modify Parental Control Entry

    | Configuring the Router HAPTER Parental Control Figure 74: Add or Modify Parental Control Entry For example: If you desire that the child PC with MAC address 00-11-22- 33-44-AA can access www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is without any restriction, you should follow the settings below.

  • Page 89: Access Control

    | Configuring the Router HAPTER Access Control Click Save to complete the settings. Then you will go back to the Parental Control Settings page and see the following list, as shown in Figure Figure 75: Parental Control Settings CCESS ONTROL There are four submenus under the Access Control menu as shown in Figure 76: Rule, Host, Target, and Schedule.

  • Page 90: Figure 77: Access Control Rule Management

    | Configuring the Router HAPTER Access Control Figure 77: Access Control Rule Management ◆ Enable Internet Access Control - Select the check box to enable the Internet Access Control function, so the Default Filter Policy can take effect. Rule Name - Here displays the name of the rule and this name is ◆...

  • Page 91: Figure 78: Add Or Modity Internet Access Control Entry

    | Configuring the Router HAPTER Access Control Select a host from the Host drop-down list or choose “Click Here To Add New Host List”. Select a target from the Target drop-sown list or choose “Click Here To Add New Target List”. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New Schedule”.

  • Page 92: Host

    | Configuring the Router HAPTER Access Control Click “Access Control->Target” in the left to enter the Target Settings page. Add a new entry with the Target Description is Target_1 and Domain Name is www.google.com. Click “Access Control->Schedule” in the left to enter the Schedule Settings page.

  • Page 93: Figure 80: Add Or Modify An Ip Host Entry

    | Configuring the Router HAPTER Access Control Information - Displays the information about the host. It can be IP or ◆ MAC. Modify - To modify or delete an existing entry. ◆ To add a new entry, please follow the steps below. Click the “Add New”...

  • Page 94: Target

    | Configuring the Router HAPTER Access Control For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA, you should first follow the settings below: Click “Add New” button in Figure 79 to enter the “Add or Modify a Host Entry”...

  • Page 95: Figure 83: Add Or Modify An Ip Access Target Entry

    | Configuring the Router HAPTER Access Control In IP Address field, enter the IP address of the target. ● Select a common service from Common Service Port drop-down ● list, so that the Target Port will be automatically filled. If the Common Service Port drop-down list doesn’t have the service you want, specify the Target Port manually.

  • Page 96: Figure 84: Add Or Modify A Domain Name Access Target Entry

    | Configuring the Router HAPTER Access Control Figure 84: Add or Modify a Domain Name Access Target Entry For example: If you desire to restrict the internet activities of a host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: Click the “Add New”...

  • Page 97: Schedule

    | Configuring the Router HAPTER Access Control Select Access Control -> Schedule from the menu; you can view and set CHEDULE a schedule list in the next screen, as shown in Figure 86. The schedule list is necessary for Access Control Rules. Figure 86: Schedule Settings Schedule Description - Here displays the description of the schedule ◆...

  • Page 98: Figure 87: Advanced Schedule Settings

    | Configuring the Router HAPTER Access Control Figure 87: Advanced Schedule Settings For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, you should first follow the settings below: Click the “Add New”...

  • Page 99: Advanced Routing

    | Configuring the Router HAPTER Advanced Routing DVANCED OUTING Select static routing list from the menu; you can configure the static route in the next screen (Figure 88). A static route is a pre-determined path that network information must travel to reach a specific host or network.

  • Page 100: Bandwidth Control

    | Configuring the Router HAPTER Bandwidth Control Other configurations for the entries: Click the Delete button to delete the entry. Click the Enable All button to enable all the entries. Click the Disable All button to disable all the entries. Click the Delete All button to delete all the entries.

  • Page 101: Ip & Mac Binding

    | Configuring the Router HAPTER IP & MAC Binding Click Enable to enable this entry. Click the Clear button to clear a single entry. Click the Clear All button to clear all entries. Click the Save button to save all configurations. The conversion relation of bandwidth: 1Mbps = 1000Kbps.

  • Page 102: Binding Setting

    | Configuring the Router HAPTER IP & MAC Binding This page displays the IP & MAC Binding Setting table; you can INDING ETTING configure it as needed (as shown in Figure 92). Figure 92: Binding Setting MAC Address - The MAC address of the controlled computer in the ◆...

  • Page 103: Arp List

    | Configuring the Router HAPTER IP & MAC Binding To modify or delete an existing entry, follow the steps below. Find the desired entry in the table. Click Modify or Delete in the Modify column. To find an existing entry, follow the steps below. Click the Find button as shown in Figure Enter the MAC Address or IP Address.

  • Page 104: Ddns

    | Configuring the Router HAPTER DDNS IP Address - The assigned IP address of the controlled computer in ◆ the LAN. Status - Indicates whether or not the MAC and IP addresses are ◆ bound. Configure - Load or delete an item. ◆...

  • Page 105: Figure 96: Dyndns.org Ddns Settings

    | Configuring the Router HAPTER DDNS Figure 96: Dyndns.org DDNS Settings To set up for DDNS, follow these instructions: Type the Domain Name received from your DDNS service provider. Type the User Name for your DDNS account. Type the Password for your DDNS account. Click the Login button to log in to the DDNS service.

  • Page 106: Figure 98: Comexe.cn Ddns Settings

    | Configuring the Router HAPTER DDNS Connection Status - The status of the DDNS service connection is ◆ displayed here. Click Logout to log out the DDNS service. ◆ To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account.

  • Page 107: System Tools

    | Configuring the Router HAPTER System Tools Type the Domain Name you received from DDNS service provider. Click the Login button to log in the DDNS service. YSTEM OOLS Select System Tools, and you can see the submenus under the main menu: Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup &...
  • Page 108 | Configuring the Router HAPTER System Tools NTP Server Prior - Enter the address for the NTP Server, then the ◆ Router will get the time from the NTP Server preferentially. In addition, the Router includes some common NTP Servers, so it can get the time automatically once it connects the Internet.

  • Page 109: Diagnostic

    | Configuring the Router HAPTER System Tools Select System Tools->Diagnostic from the menu; you can use Ping or IAGNOSTIC Traceroute functions to check connectivity of your network in the following screen. Figure 101: Diagnostic Tools Diagnostic Tool - Check the radio button to select one diagnostic too. ◆...

  • Page 110: Firmware Upgrade

    | Configuring the Router HAPTER System Tools Traceroute Max TTL - The max number of hops for a Traceroute ◆ connection. Click Start to check the connectivity of the Internet. The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen, the connectivity of the Internet is fine.

  • Page 111: Factory Defaults

    | Configuring the Router HAPTER System Tools To upgrade the Router's firmware, follow the instructions below: Download a more recent firmware upgrade file from the SMC website (http://www.smc.com). Type the path and file name of the update file into the File field. Or click the Browse button to locate the update file.

  • Page 112: Backup & Restore

    | Configuring the Router HAPTER System Tools Any settings you have saved will be lost when the default settings are restored. When press and hold the WPS Button for more than 5 seconds, you will reset the router. Select System Tools-> Backup & Restore from the menu; you can save &...

  • Page 113: Password

    | Configuring the Router HAPTER System Tools Some settings of the Router will take effect only after rebooting, which include Change of the LAN IP Address (system will reboot automatically). ◆ Change of DHCP Settings. ◆ Change of Wireless configurations. ◆...

  • Page 114: System Log

    | Configuring the Router HAPTER System Tools Selct System Tools->System Log from the menu; you can view the logs YSTEM of the Router. Figure 108: System Log Auto Mail Feature - Indicates whether auto mail feature is enabled or ◆ not.

  • Page 115: Figure 109: Mail Account Settings

    | Configuring the Router HAPTER System Tools Figure 109: Mail Account Settings From - Your mail box address. The Router would connect it to send ◆ logs. To - Recipient’s address. The destination mailbox where the logs would ◆ be received. SMTP Server - Your smtp server.

  • Page 116: Statistics

    | Configuring the Router HAPTER System Tools Click the Next button to go to the next page, or click the Previous button return to the previous page. Select System Tools->Statistics from the menu; you can view the TATISTICS statistics of the Router, including total traffic and current traffic of the last Packets Statistic Interval.
  • Page 117 | Configuring the Router HAPTER System Tools Current Packets - The total amount of packets received and transmitted in the last Packets Statistic interval seconds. Current Bytes - The total amount of bytes received and transmitted in the last Packets Statistic interval seconds. Current ICMP Tx - The total amount of the ICMP packets transmitted to WAN in the last Packets Statistic interval seconds.

  • Page 118: Onfiguring The Pc

    ONFIGURING THE The section shows how to install and configure TCP/IP settings correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed. TCP/IP C NSTALL OMPONENTS On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.

  • Page 119: Figure 112: Internet Protocol

    | Configuring the PC PPENDIX Install TCP/IP Components Figure 112: Internet Protocol The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below: Set the IP address automatically.

  • Page 120: Figure 113: Internet Protocol Properties

    | Configuring the PC PPENDIX Install TCP/IP Components Figure 113: Internet Protocol Properties Set the IP address manually. Select “Use the following IP address” radio button and enter the following items: — If the Router's LAN IP address is 192.168.2.1, type an IP address such as 192.168.2.x (where x is from 2 to 254), and Subnet mask as 255.255.255.0.

  • Page 121: Figure 114: Setting The Ip Address Manually

    | Configuring the PC PPENDIX Install TCP/IP Components Figure 114: Setting the IP Address Manually Click OK to keep your settings. – 121 –...

  • Page 122: B Faq

    ADSL OW DO CONFIGURE THE OUTER FOR NTERNET ACCESS BY USERS Configure the ADSL Modem in RFC1483 bridge mode. Connect Ethernet cable from the ADSL Modem to the WAN port on the Router. The telephone cord plugs into the Line port of the ADSL Modem. Log in to the Router, click “Network”...

  • Page 123: How Do Iconfigure The Router For Internet Access By Ethernet Users

    | FAQ PPENDIX How do I configure the Router for Internet access by Ethernet users? Sometimes the connection cannot be disconnected although you have specified a Max Idle Time, since some applications may be visiting the Internet continually in the background. If you are a Cable user, configure the Router following the above steps.

  • Page 124: I Want To Use Netmeeting, What Do I Need To Do

    | FAQ PPENDIX I want to use Netmeeting, what do I need to do? WANT TO USE ETMEETING WHAT DO NEED TO DO If you start Netmeeting as a host, you do not need to change anything on the Router. If you start as a response, you need to configure a Virtual Server or DMZ Host, and make sure the H323 ALG is enabled.

  • Page 125: Figure 120: Dmz

    | FAQ PPENDIX I want to use Netmeeting, what do I need to do? The other party should call your WAN IP, which is displayed on the “Status” page. Enable a DMZ Host: Log in to the Router, click “Forwarding” on the menu, and then click “DMZ”...

  • Page 126: I Want To Build A Web Server On The Lan, What Should I Do

    | FAQ PPENDIX I want to build a WEB Server on the LAN, what should I do? Figure 121: Basic Security WEB S LAN, WANT TO BUILD A ERVER ON THE WHAT SHOULD Change the Web management port number: Because the Web Server port 80 will interfere with the Web management port 80 on the Router, you must change the Web management port number to avoid interference.

  • Page 127: Wireless Stations Cannot Connect To The Router

    | FAQ PPENDIX Wireless stations cannot connect to the Router Log in to the Router, click “Forwarding” on the menu, and then click "Virtual Servers" on the submenu. On the "Virtual Servers" page, click “Add New”. On the “Add or Modify a Virtual Server” page, enter “80” into the field for the “Service Port”.
  • Page 128 | FAQ PPENDIX Wireless stations cannot connect to the Router If the wireless connection is ready, but you cannot access the Router, check the IP Address of your wireless station. – 128 –...

  • Page 129: C Specifications

    Power, System, WLAN, WAN, LAN (1-4), WPS LED I NDICATORS 2.4~2.4835 GHz REQUENCY 11b: 11/5.5/2/1 Mbps (Automatic) ADIO 11g: 54/48/36/24/18/12/9/6 Mbps (Automatic) 11n: up to 150 Mbps (Automatic, SMCWBR14S-N5) 1~13 HANNELS DSSS (Direct Sequence Spread Spectrum) REQUENCY XPANSION DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM ODULATION...
  • Page 130 | Specifications PPENDIX WEP/WPA/WPA2/WPA2-PSK/WPA-PSK ECURITY 130 Mbps: -68dBm@10% PER @PER ENSITIVITY 108 Mbps: -68dBm@10% PER 54 Mbps: -68dBm@10% PER 11 Mbps: -85dBm@8% PER 6 Mbps: -88dBm@10% PER 1 Mbps: -90dBm@8% PER 5dBi NTENNA Operating: 0 °C to 40 °C (32 to 104 °F) EMPERATURE Storage: -40 °C to 70 °C (-40 to 158 °F) Operating: 10% to 90% (non-condensing)

  • Page 131: Glossary

    LOSSARY A wireless standard that supports wireless communications in the 2.4 GHz IEEE 802.11 band using Direct Sequence Spread Spectrum (DSSS). The standard provides for data rates of 1, 2, 5.5, and 11 Mbps. A wireless standard that supports wireless communications in the 2.4 GHz IEEE 802.11 band using Orthogonal Frequency Division Multiplexing (OFDM).
  • Page 132 LOSSARY A company that provides access to the Internet. ISP (I NTERNET ERVICE ROVIDER The size in bytes of the largest packet that can be transmitted. MTU (M AXIMUM RANSMISSION NAT technology translates IP addresses of a local area network to a NAT (N ETWORK different IP address for the Internet.

  • Page 133: Index

    NDEX AC power adapter key features antennas LAN LED basic setup, wizard LAN ports LED indicators LEDs Power channel, operating System connections, router contents of package WLAN local management location of router DDNS logging in, web default IP login page diagnostic tools login password DNS addresses...
  • Page 134 NDEX Power LED PPPoE proxy, web setting quick setup radio channel radio enable region setting,country setting remote management requirements, system router status setup wizard steps setup, quick SMTP server software upgrade specifications, hardware Static IP statistics status information System LED system logs system requirements TCP/IP configuration...
  • Page 135 (for Asia-Pacific): Technical Support information at www.smc-asia.com Hsinchu Science Park Hsinchu Science Park Taiwan 30077 Taiwan 30077 Tel: +886 3 5638888 Tel: +886 3 5638888 Fax: +886 3 6686111 Fax: +886 3 6686111 www.smcnetworks.co.kr www.smcnetworks.co.kr SMCWBR14S-N5 SMCWBR14S-N5, SMCWBR14-N5 www.smc.com www.smc.com...

Table of Contents
