| Configuring the Router
C 4
HAPTER

Access Control

Click Save to complete the settings.
4.
Then you will go back to the Parental Control Settings page and see the
following list, as shown in Figure 75.

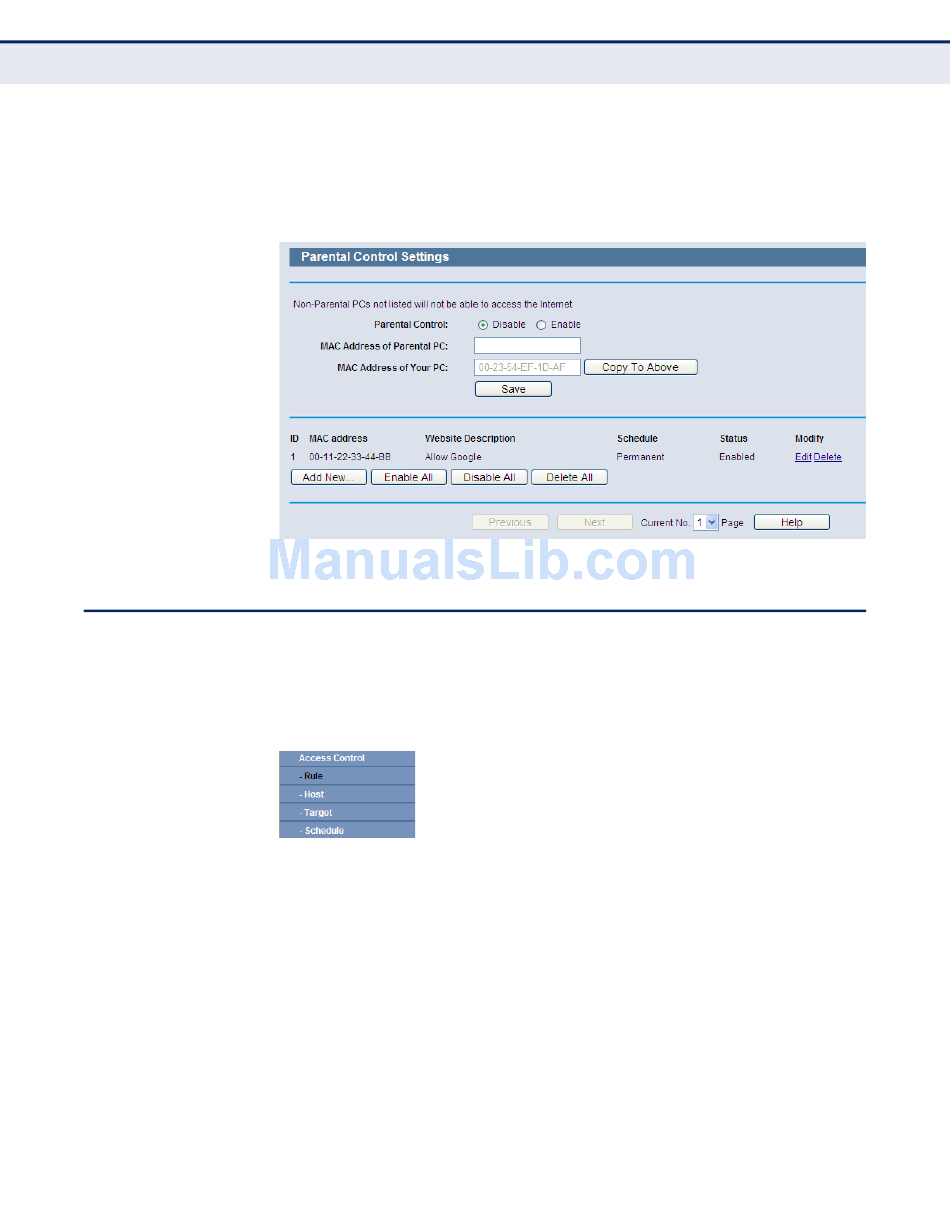

Figure 75: Parental Control Settings

A C
CCESS ONTROL
There are four submenus under the Access Control menu as shown in
Figure 76: Rule, Host, Target, and Schedule. Click any of them, and you
will be able to configure the corresponding function.

Figure 76: Access Control

Select Access Control->Rule from the menu; you can view and set
R
ULE
access control rules in the screen, as shown in Figure 77.
– 89 –
