SMC Networks WBR14S-N3 - FICHE TECHNIQUE Overview

OVERVIEW
The Barricade™ N Draft 11n Broadband Router (SMCWBR14S-N3) is an all-in-one networking
solution for connecting and sharing your high speed cable/xDSL internet connection. This
multi-functional broadband router combines a 4-port 10/100Mbps LAN switch, a 300Mbps
Wireless-N (802.11n) access point, NAT firewall with SPI, and a user friendly web-based man-
agement interface in one convenient device. SMCWBR14S-N3 is compliant with the 802.11n v2.0
standard, providing up to 300Mbps high speed wireless connection. With security being a key
consideration, SMCWBR14S-N3 supports the latest WPA and WPA2 wireless encryption
standards, which prevent unauthorized access to wireless networks.
KEY FEATURES
Advanced, Robust Security
NAT firewall with Stateful Packet Inspection (SPI) provides
protection from hackers and Denial of Service attacks to ensure
that only authorized packets are allowed access to your network.
WPA/WPA2 wireless encryptions prevent unauthorized access
to wireless networks. Wireless security can also bet set up easily
using Wi-Fi Protected Setup™ (WPS).
APPLICATION DIAGRAM
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
WIRELESS
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
PHONE CABLES
WIRELESS

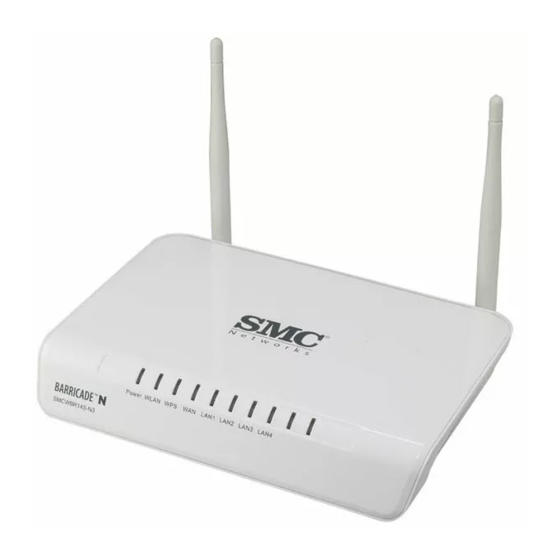

SMCWBR14S-N3
Barricade™ N 300Mbps 11n Wireless 4-port Broadband Router
Feature Rich
SMCWBR14S-N3 provides a multitude of features for the most
demanding network requirement including Wireless Distribution
System (WDS), Dual SSIDs, Static and Dynamic Routing (RIP v1,
v2), Quality of Service (QoS) and more.
Web-Based management interface
Simple and straightforward set-up with the intuitive web-based
management interface and EZ™ Installation Wizard.
www.smc.com
POWER TO CONNECT
