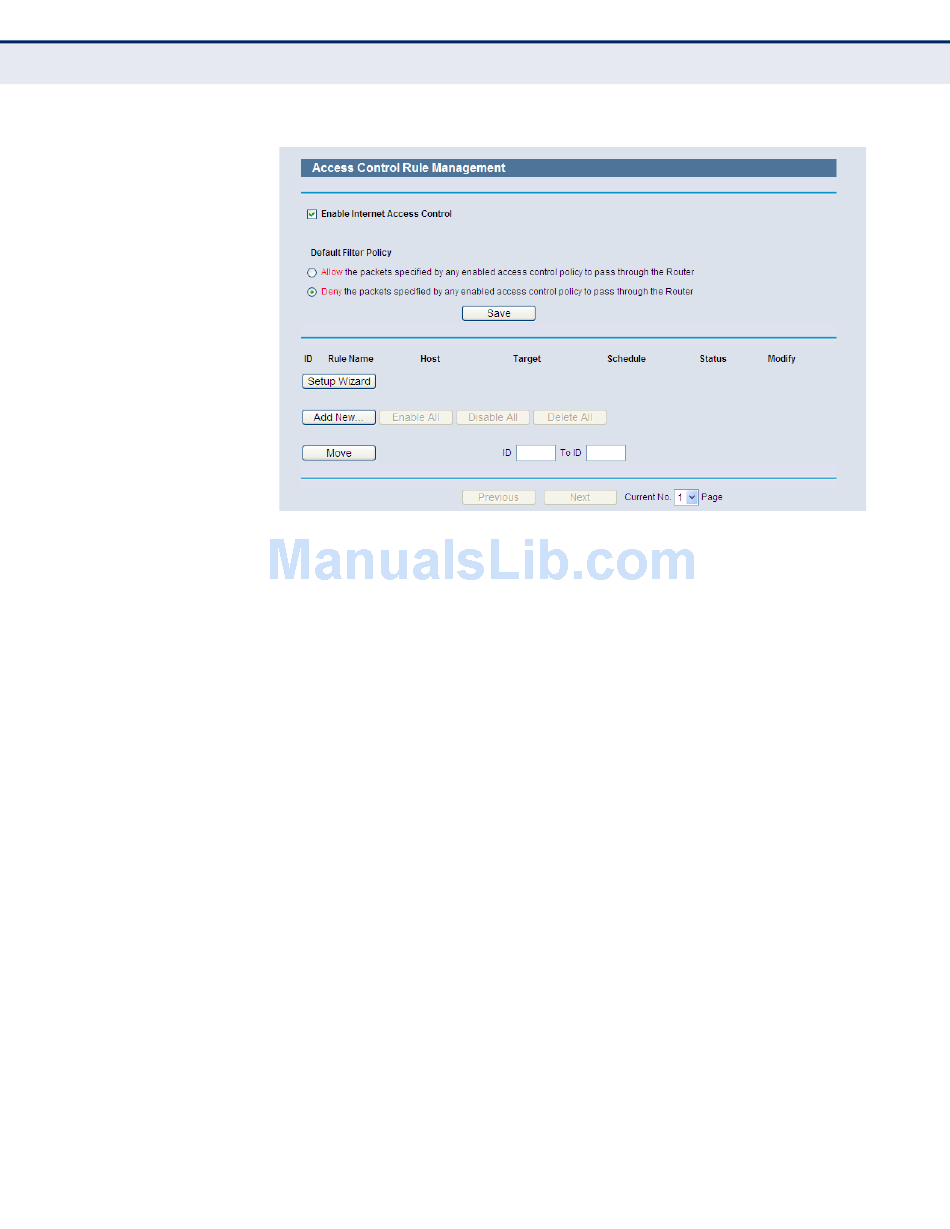

Figure 77: Access Control Rule Management

◆ Enable Internet Access Control - Select the check box to enable the
Internet Access Control function, so the Default Filter Policy can take
effect.
Rule Name - Here displays the name of the rule and this name is
◆
unique.
Host - Here displays the host selected in the corresponding rule.
◆
Target - Here displays the target selected in the corresponding rule.
◆
Schedule - Here displays the schedule selected in the corresponding
◆
rule.
Action - Here displays the action the Router takes to deal with the
◆
packets. It could be Allow or Deny. Allow means that the Router permits
the packets to go through the Router. Deny means that the Router
rejects the packets to go through the Router.
Status - This field displays the status of the rule. Enabled means the
◆
rule will take effect, Disabled means the rule will not take effect.
Modify - Here you can edit or delete an existing rule.
◆
To add a new rule, please follow the steps below.
Click the "Add New" button and the next screen will pop-up, as shown
1.
in Figure 78.
Give a name (e.g. Rule_1) for the rule in the Rule Name field.
2.
– 90 –
| Configuring the Router
C 4
HAPTER
Access Control
