For the configuration of a new device, this example uses an SMC Wireless
Adapter.
B PBC
Y
If the wireless adapter supports Wi-Fi Protected Setup and the Push Button
Configuration (PBC) method, you can add it to the network by PBC with the
following two methods.
Method One:
Enable the WPS function from Web management page.
1.
Press the WPS button on the front panel of the Router.
2.

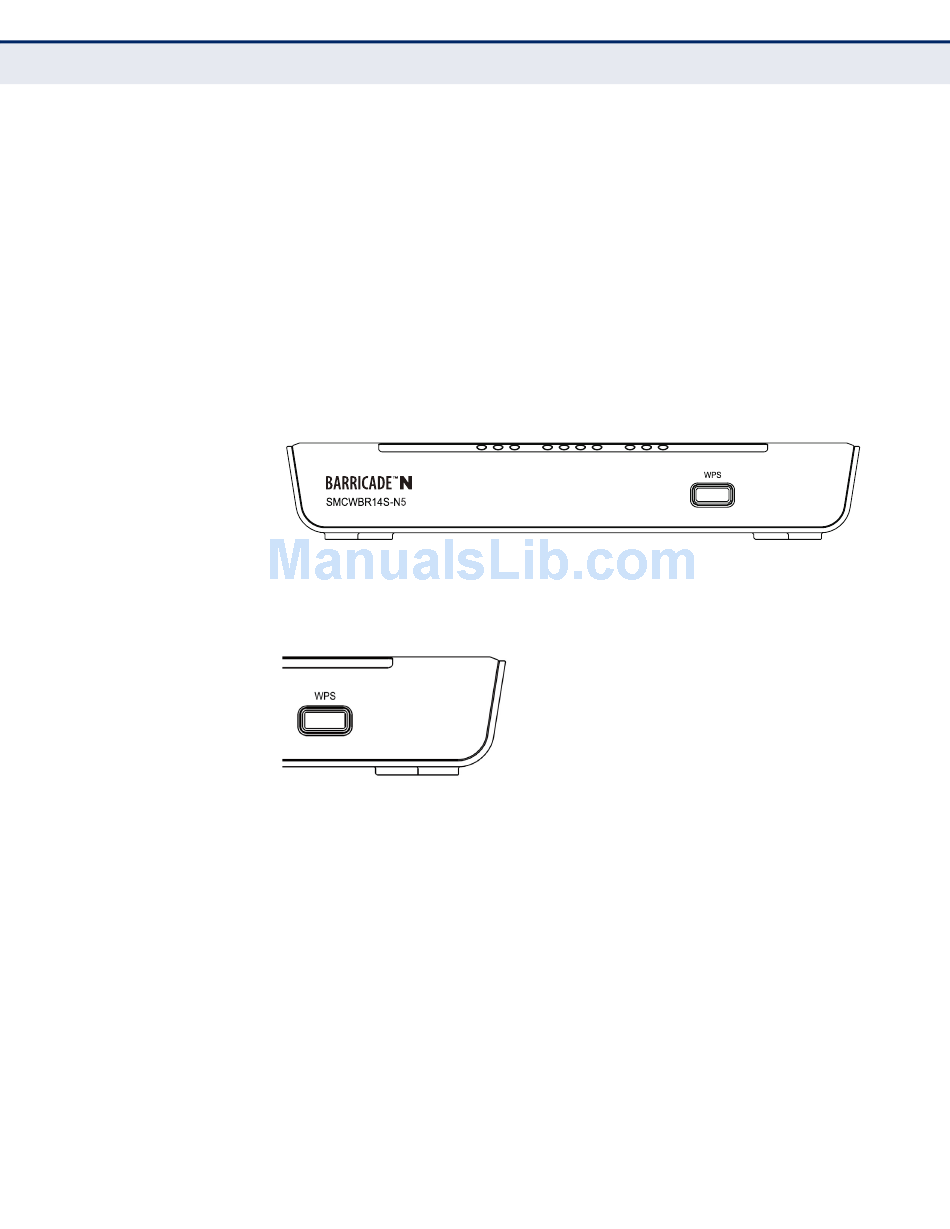

Figure 20: Front Panel

Press and hold the WPS button of the wireless client for 2 or 3 seconds.
3.

Figure 21: WPS Button

Wait until the next screen appears. Click Finish to complete the WPS
4.
configuration.
– 43 –
| Configuring the Router
C 4
HAPTER
WPS
