1

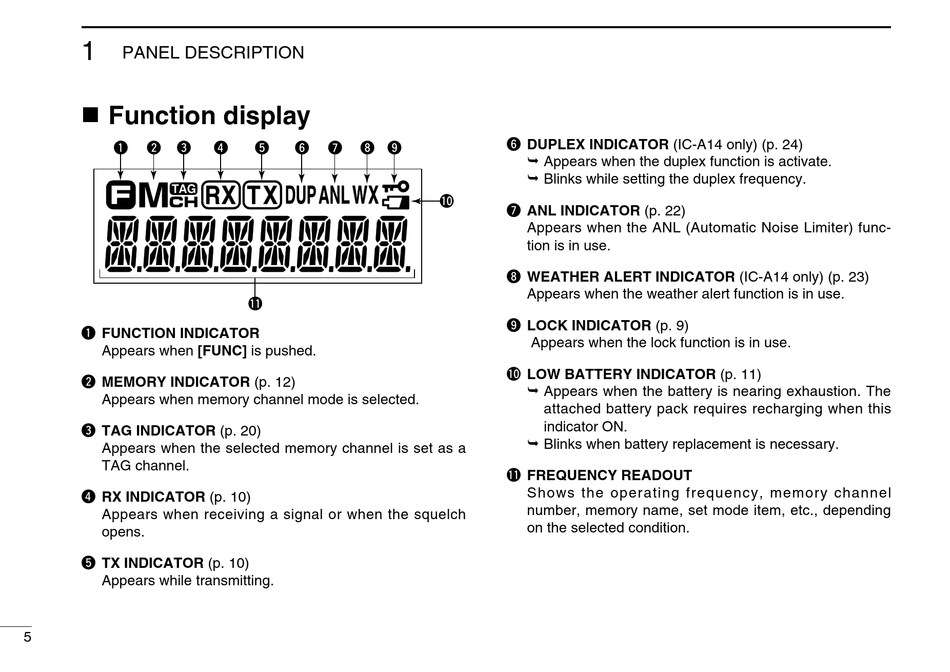

PANEL DESCRIPTION
n Function display
q
w
e
q FUNCTION INDICATOR
Appears when [FUNC] is pushed.
w MEMORY INDICATOR (p. 12)
Appears when memory channel mode is selected.
e TAG INDICATOR (p. 20)
A ppears when the selected memory channel is set as a
TAG channel.
r RX INDICATOR (p. 10)
Appears when receiving a signal or when the squelch
opens.
t TX INDICATOR (p. 10)
Appears while transmitting.
5
r
t
y
u
i o
!1
y DUPLEX INDICATOR (IC-A14 only) (p. 24)
Appears when the duplex function is activate.
Blinks while setting the duplex frequency.
!0
u ANL INDICATOR (p. 22)
Appears when the ANL (Automatic Noise Limiter) func-
tion is in use.
i WEATHER ALERT INDICATOR (IC-A14 only) (p. 23)
Appears when the weather alert function is in use.
o LOCK INDICATOR (p. 9)
Appears when the lock function is in use.
!0 LOW BATTERY INDICATOR (p. 11)
Appears when the battery is nearing exhaustion. The
attached battery pack requires recharging when this
indicator ON.
Blinks when battery replacement is necessary.
!1 FREQUENCY READOUT
Shows the operating frequency, memory channel
number, memory name, set mode item, etc., depending
on the selected condition.
