12

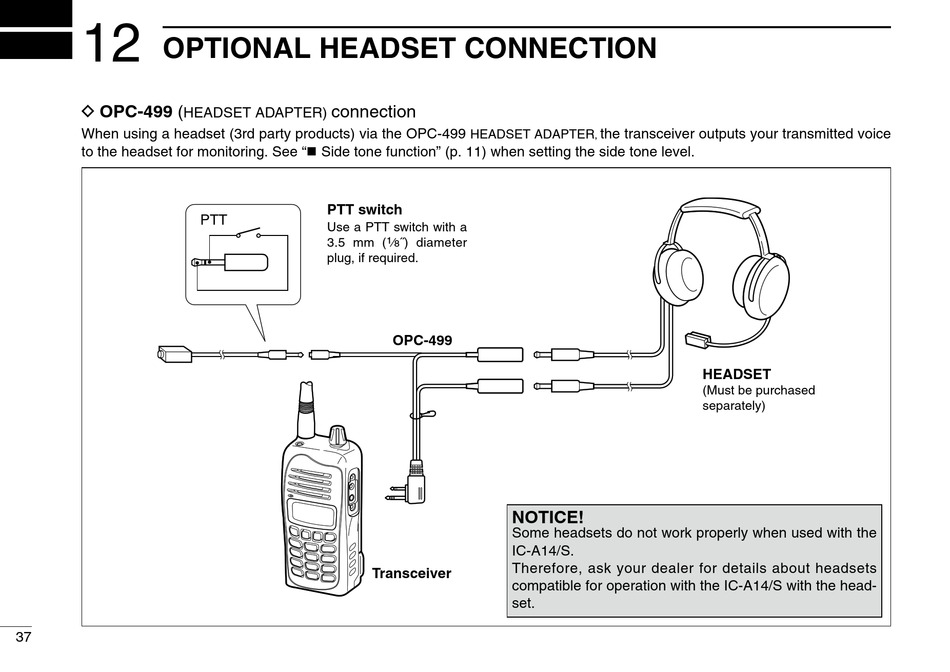

OPTIONAL HEADSET CONNECTION

D OPC-499 (
HEADSET ADAPTER)
When using a headset (3rd party products) via the OPC-499
to the headset for monitoring. See "n Side tone function" (p. 11) when setting the side tone level.
37
connection
PTT switch
PTT
Use a PTT switch with a
3.5 mm (
plug, if required.
Transceiver
HEADSET ADAPTER
1
⁄ ˝) diameter
8
OPC-499
NOTICE!
Some headsets do not work properly when used with the
IC-A14/S.
Therefore, ask your dealer for details about headsets
compatible for operation with the IC-A14/S with the head-
set.
the transceiver outputs your transmitted voice
,
HEADSET
(Must be purchased
separately)
