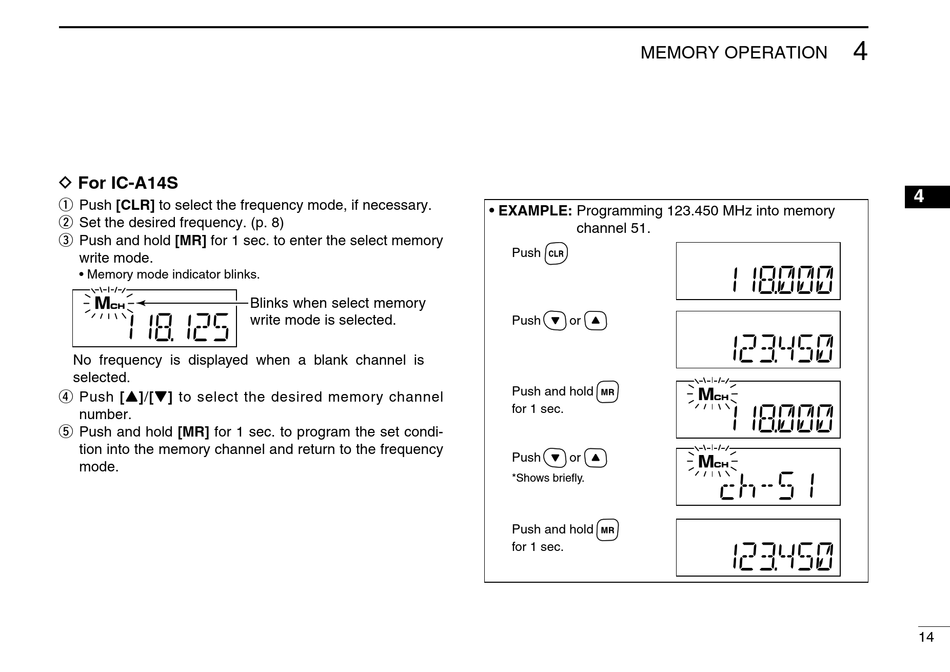

Icom IA14 Instruction Manual page 19

D For IC-A14S
q Push [CLR] to select the frequency mode, if necessary.
w Set the desired frequency. (p. 8)
e Push and hold [MR] for 1 sec. to enter the select memory
write mode.
• Memory mode indicator blinks.
No frequency is displayed when a blank channel is
selected.
r Push [Y]/[Z] to select the desired memory channel
number.
t Push and hold [MR] for 1 sec. to program the set condi-
tion into the memory channel and return to the frequency
mode.
Blinks when select memory
write mode is selected.
MEMORY OPERATION
• EXAMPLE: Programming 123.450 MHz into memory
channel 51.
Push
Push or
Push and hold
for 1 sec.
Push or
*Shows briefly.
Push and hold
for 1 sec.
