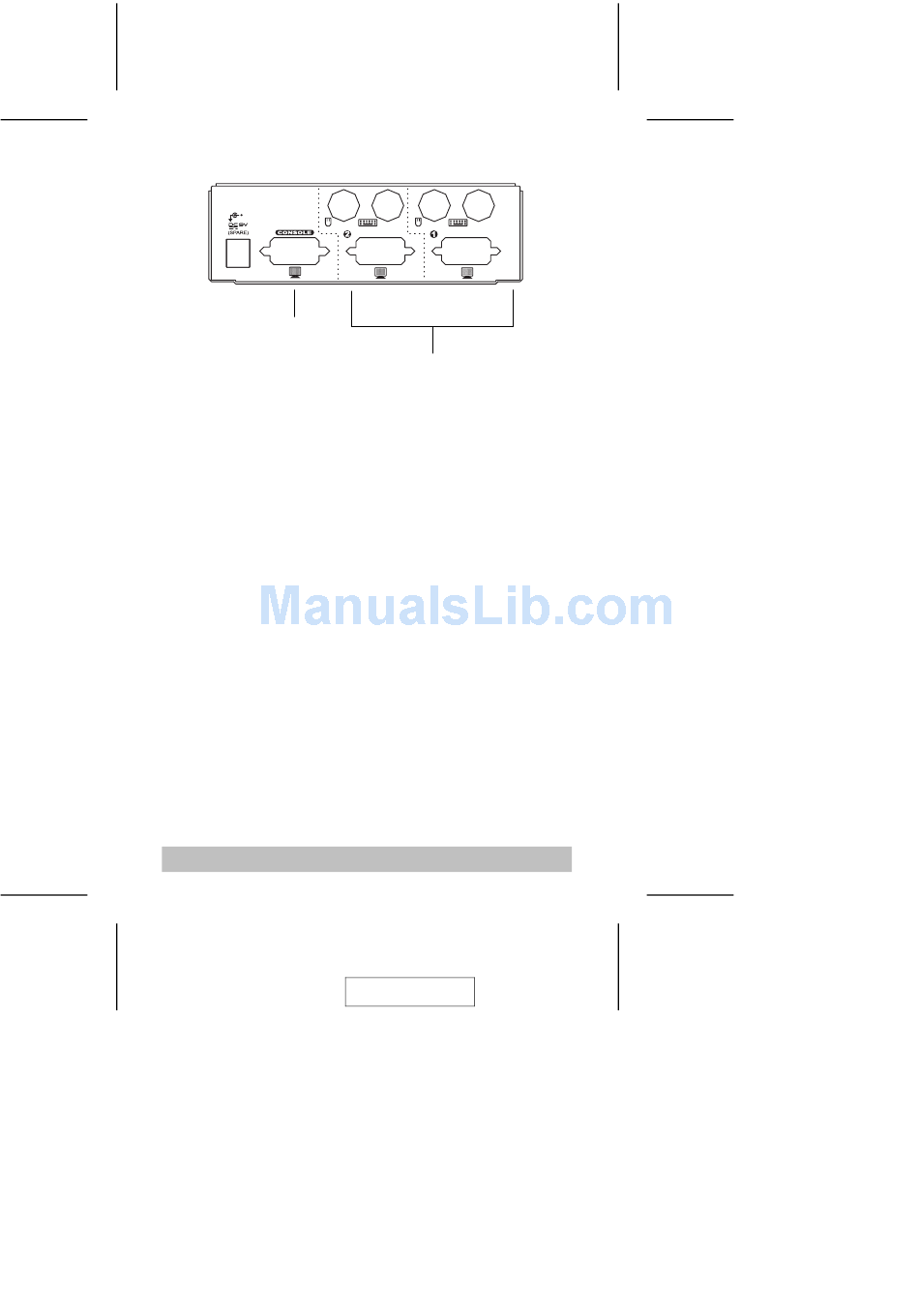

Rear View

1
1. Console Video Connector
The cable from your monitor plugs in here.
2. CPU Port Connectors
The KVM cables that connect to the computer's monitor,
keyboard and mouse ports plug in here. Each port is
identified by an appropriate icon.
Note: In order to have the console's keyboard and mouse
1.
control notebook computers that only have one
PS/2 port, you can use a two PS/2 port to USB
adapter, such as the ATEN UC-100KM. Simply
plug the KVM cable's keyboard and mouse
connectors into the adapter, then plug the adapter
into the computer's USB port.
Ordinary PS/2 to USB changers commonly sold in
2.
computer shops will not work with the CS-82A.
