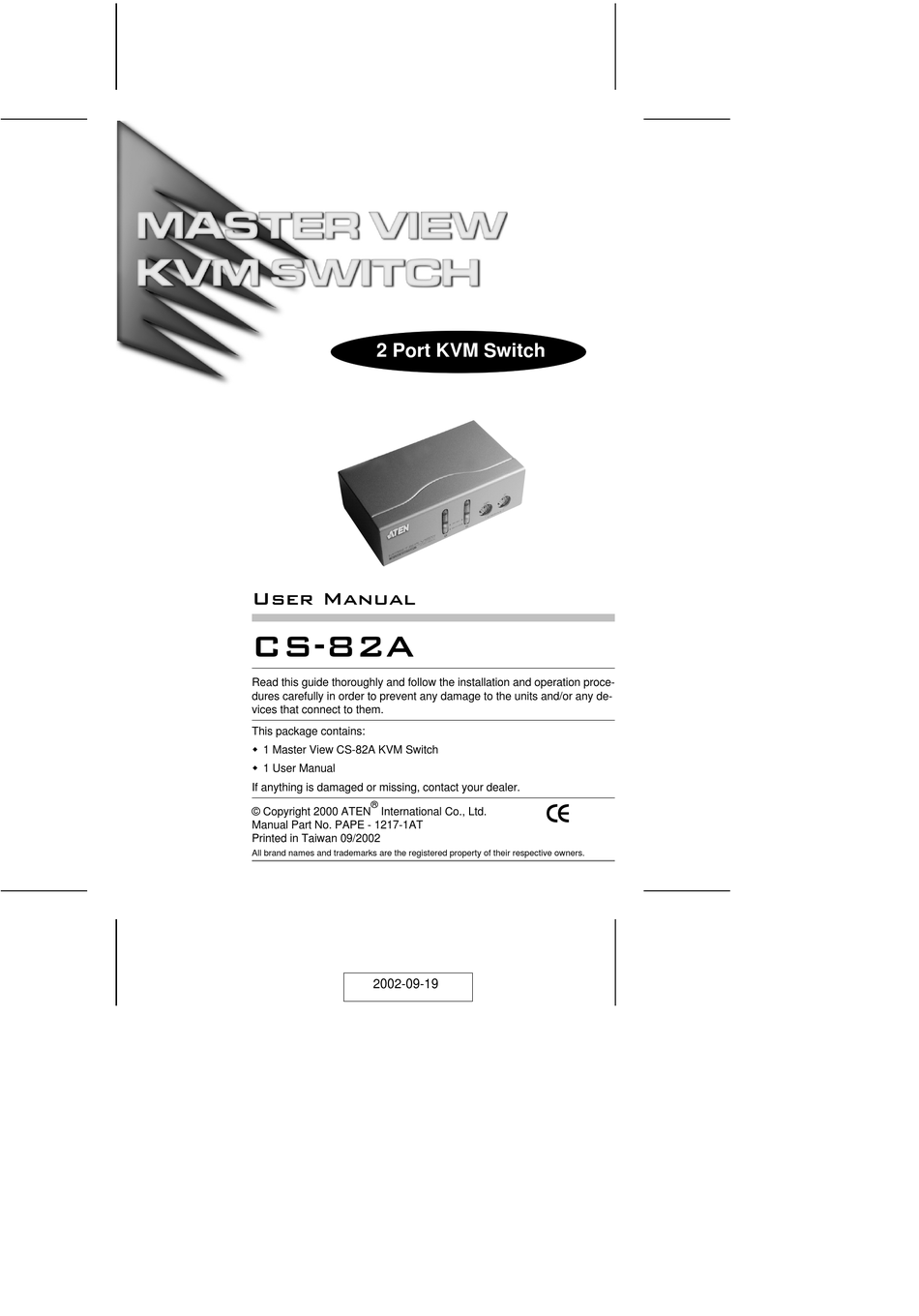

2 Port KVM Switch
User Manual
CS-82A
Read this guide thoroughly and follow the installation and operation proce-
dures carefully in order to prevent any damage to the units and/or any de-
vices that connect to them.
This package contains:
M 1 Master View CS-82A KVM Switch
M 1 User Manual
If anything is damaged or missing, contact your dealer.
®
© Copyright 2000 ATEN
International Co., Ltd.
Manual Part No. PAPE - 1217-1AT
Printed in Taiwan 09/2002
All brand names and trademarks are the registered property of their respective owners.
2002-09-19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN Master View CS-82A
Summary of Contents for ATEN Master View CS-82A
-
Page 1: User Manual
This package contains: M 1 Master View CS-82A KVM Switch M 1 User Manual If anything is damaged or missing, contact your dealer. - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause...
- Page 3 Now, with the Master View CS-82A, you can easily access two computers in a cost effective manner. Setup is fast and easy; plugging cables into their appropriate ports is all that is entailed.
- Page 4 Features Supports Microsoft Intellimouse and the Scrolling Wheel on Most Mice Keyboard and Mouse Emulation For Error Free Booting Easy to Install - No Software Required - Standard Cables to Connect to the Computers Is All It Takes Easy to Operate - Computer Selection Via Push Button Switches or Hotkeys - Auto Scan Function to Monitor Computer Operation LED Display for Easy Status Monitoring...
-
Page 5: Hardware Requirements
Use of substandard cables may damage the connected devices or degrade overall performance. For optimum signal integrity and to simplify the layout, we strongly recommend that you use ATEN high quality CS Custom Cable sets: 2L-1001P/C (1.8 m) and 2L-1003P/C (3 m). -
Page 6: Front View
Introduction Front View 1 & 2 1. Port Selection Switches Press a switch to access the computer attached to the corresponding port. 2. Port LEDs: The Port LEDs are built into the Port Selection Switches. The upper ones are the On Line LEDs; the lower ones are the Selected Port LEDs: The On Line LEDs lights ORANGE to indicate that the computer attached to the corresponding port is up and... -
Page 7: Rear View
KVM cable’s keyboard and mouse connectors into the adapter, then plug the adapter into the computer’s USB port. Ordinary PS/2 to USB changers commonly sold in computer shops will not work with the CS-82A. - 5 - 2002-09-19... -
Page 8: Installation
7. 4. Turn on the power to the connected computers. Note: The CS-82A’s Power On default is to link to the first computer you turn on. - 6 -... - Page 9 - 7 - 2002-09-19...
-
Page 10: Operation
Operation Controlling all the computers in your CS-82A installation from a single console could not be easier. Two port selection methods that provide instant access to the computers are available: Manual Port Selection Hotkey Port Selection Manual Port Selection With Manual Port Selection you simply press the Port Selection switch that corresponds to the port that the computer you want to access is attached to. - Page 11 10. Note: 1. Press and release the keys one at a time. 2. You must press [S] and [n] within one second, otherwise, they will be ignored and the CS-82A will go into Auto Scan Mode. - 9 -...
- Page 12 Scan Interval 3 secs 5 secs 10 secs 20 secs Once scanning begins, it continues until you press the [Spacebar] to exit Auto Scan Mode. The port that has the KVM focus at the time scanning stopped remains active. Note: While Auto Scan Mode is in effect, the console will not function normally.
-
Page 13: Selected Led Display
Appendix Selected LED Display Activity Meaning Port is not selected. On (Steady) Port is connected to an active computer. Flashing (On and Off equal) Port is connected to an active computer and is being accessed in Auto Scan mode. Specifications Function Specification Power Consumption... -
Page 14: Troubleshooting
Troubleshooting Note: If you are experiencing problems, first make sure that there are no problems with the cables, and that they are all properly connected. Symptom Possible Cause Action Keyboard Not Loose cables. Check all keyboard cable connections to Responding make sure they are completely seated in their sockets. - Page 15 Because of the wide variety of mouse driver standards for the modern series of mice (the ones with the extra buttons and wheels), the CS-82A only supports all the extra features of the Microsoft Intellimouse. It supports the scrollwheel function of most other mice, however.
-
Page 16: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular...
