ATEN Altusen KN1000A - Single Port KVM Over IP With Single Port Power Switch Quick Start

Package Contents

1 KN1000A Single Port KVM over IP with Single Port Power Switch
1 Custom KVM Cable Set
1 Custom Console Cable Set
1 Laptop USB Console Cable
1 Power Adapter
1 Outlet Power Cord
1 Rack Mount kit
1 User Instructions

Overview

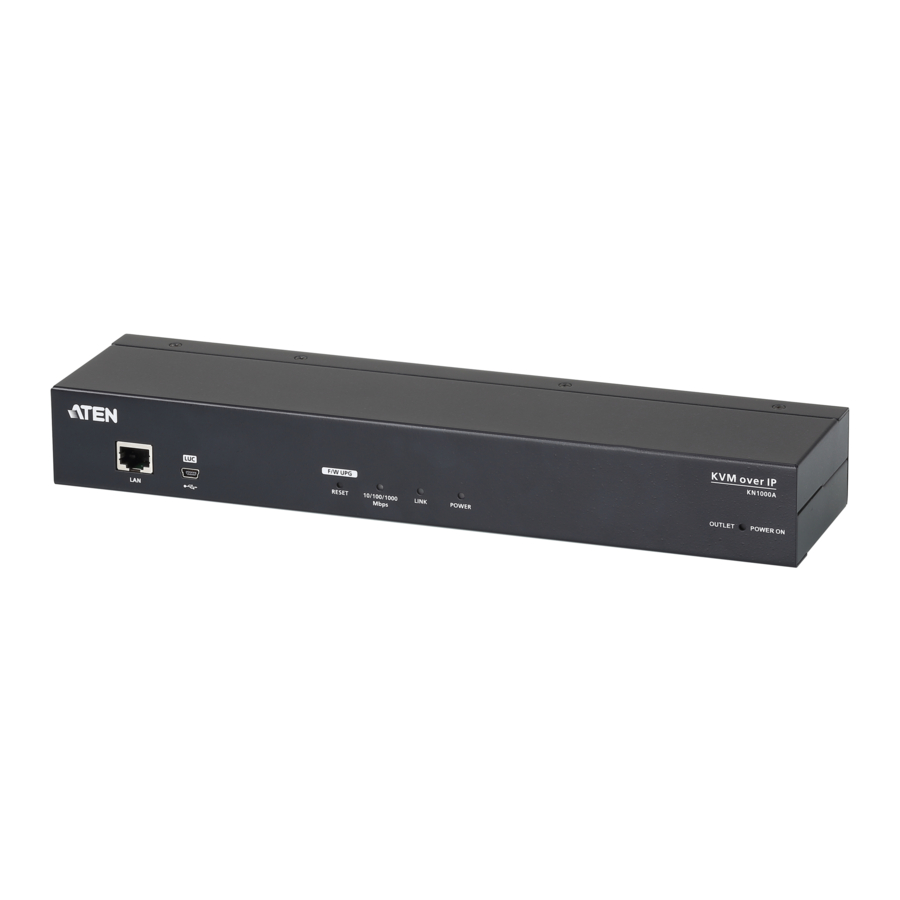

Front view

1. LAN Port
2. LUC (Laptop USB Console) Port
3. Firmware Upgrade / Reset Switch
4. 10/100/1000 Mbps LED
5. Link LED
6. Power LED
7. Power Outlet LED

Rear view

1. Circuit Breaker
2. Grounding Terminal
3. Power Inlet
4. Power Outlet
5. Power Jack
6. PC/KVM Port
7. PS/2 – USB Console Port
8. PON Port
9. RS-232 Port

Installation

Rack Mounting

For convenience and fl exibility, the KN1000A can be mounted on a system rack.

To rack mount the unit do the following:

1. Remove the two original screws from the bottom of the unit (near the rear of the unit).
2. Using the screws provided with the rack mount kit, screw the mounting bracket into the KN1000A – as shown in the diagram.
   Note: The illustrations show the mounting bracket attached to the bottom of the unit; it can also be attached to the top.
3. Screw the bracket into any convenient location on the rack.
   Note: Rack screws are not provided. Use screws that are appropriate for your rack.

DIN Rail Mounting

To mount the KN1000A on a DIN rail:

1. Screw the mounting bracket to the back of the KN1000A as described in steps 1 and 2 of the Rack Mounting procedure.
2. Use the large screws supplied with the rack mount kit to screw the DIN rail brackets to the mounting brackets.
3. Hang the KN1000A on the DIN rail.

Setup

To install the KN1000A, refer to the installation diagrams (the numbers in the diagram correspond to the steps below), and do the following:

1. Ground the unit using the grounding wire provided with the KN1000A package.
2. Use the Console cable provided with this package to connect the KN1000A's PS/2 - USB Console port, to the local console keyboard, monitor and mouse.
   Note:
   1. The Console cable comes with connectors for both PS/2 and USB mice and keyboards – use the ones appropriate for your installation.
   2. You can use any combination of keyboard and mouse connections. For example, you can use a PS/2 keyboard with a USB mouse.
3. Use the KVM cable provided with this package to connect the KN1000A's PC/KVM port, to the keyboard, video and mouse ports of the server or KVM switch that you are installing.
4. (Optional) If you want to connect a PON device for remote power management, plug its cable into the PON port.
5. (Optional) If you want to connect a serial console device or modem, plug its cable into the RS-232 port.
6. (Optional) If you want to use a laptop as a console, use the laptop USB cable included with this package to connect the KN1000A's LUC (Laptop USB Console) Port.
7. Plug a Cat 5e/6 Ethernet cable into the KN1000A's LAN Port for remote access.
8. Use the outlet power cord provided with the KN1000A's package to connect the KN1000A's Power Outlet to the attached server for power management.
9. Use the power cord from the server to connect the KN1000A's Power Inlet to an AC power source.
10. Plug the power adapter cable into the KN1000A 's power jack, then plug the power adapter into an AC power source.

This completes the hardware installation, and you are ready to start up.

Note: When starting up, be sure to first power on the KN1000A, then power on the server or KVM switch.

Operation

Browser

The KN1000A can be accessed either from a web browser, via Windows and Java application (AP) program, or by PPP modem dial-in.

Logging In

To operate the KN1000A from a web browser, begin by logging in:

1. Open your browser and specify the IP address of the KN1000A you want to access in the browser's URL location bar.
   Note: For security purposes, a login string may have been set by the administrator. If so, you must include a forward slash and the login string along with the IP address when you log in. For example: 192.168.0.100/KN1000A.
   If you don't know the IP address and login string, ask your Administrator. The default IP address is 192.168.0.60
2. If a Security Alert dialog box appears. Accept the certificate – it can be trusted. If a second certificate appears, accept it as well. The KN1000A login page appears.
3. Provide a valid Username and Password (set by the KN1000A administrator), then click Login to continue. Note:
   1. If you are the administrator, and are logging in for the first time, use the default Username: administrator; and the default Password: password. For security purposes, we strongly recommend you remove these and give yourself a unique Username and Password.
   2. If you supplied an invalid login, the authentication routine will return this message: Invalid Username or Password. Please try again. If you see this message, log in again being careful with the Username and Password.
      After you have successfully logged in, the KN1000A Main Screen appears.

Support and Documentation Notice

All information, documentation, firmware, software utilities, and specifications contained in this package are subject to change without prior notification by the manufacturer.

To reduce the environmental impact of our products, ATEN documentation and software can be found online at http://www.aten.com/download/

Technical Support

www.aten.com/support

Scan for more information
