ATEN CS-62U User Manual

2 port petite kvm switch
Hide thumbs Also See for CS-62U:
Table of Contents

Advertisement

Quick Links

See also: Manual

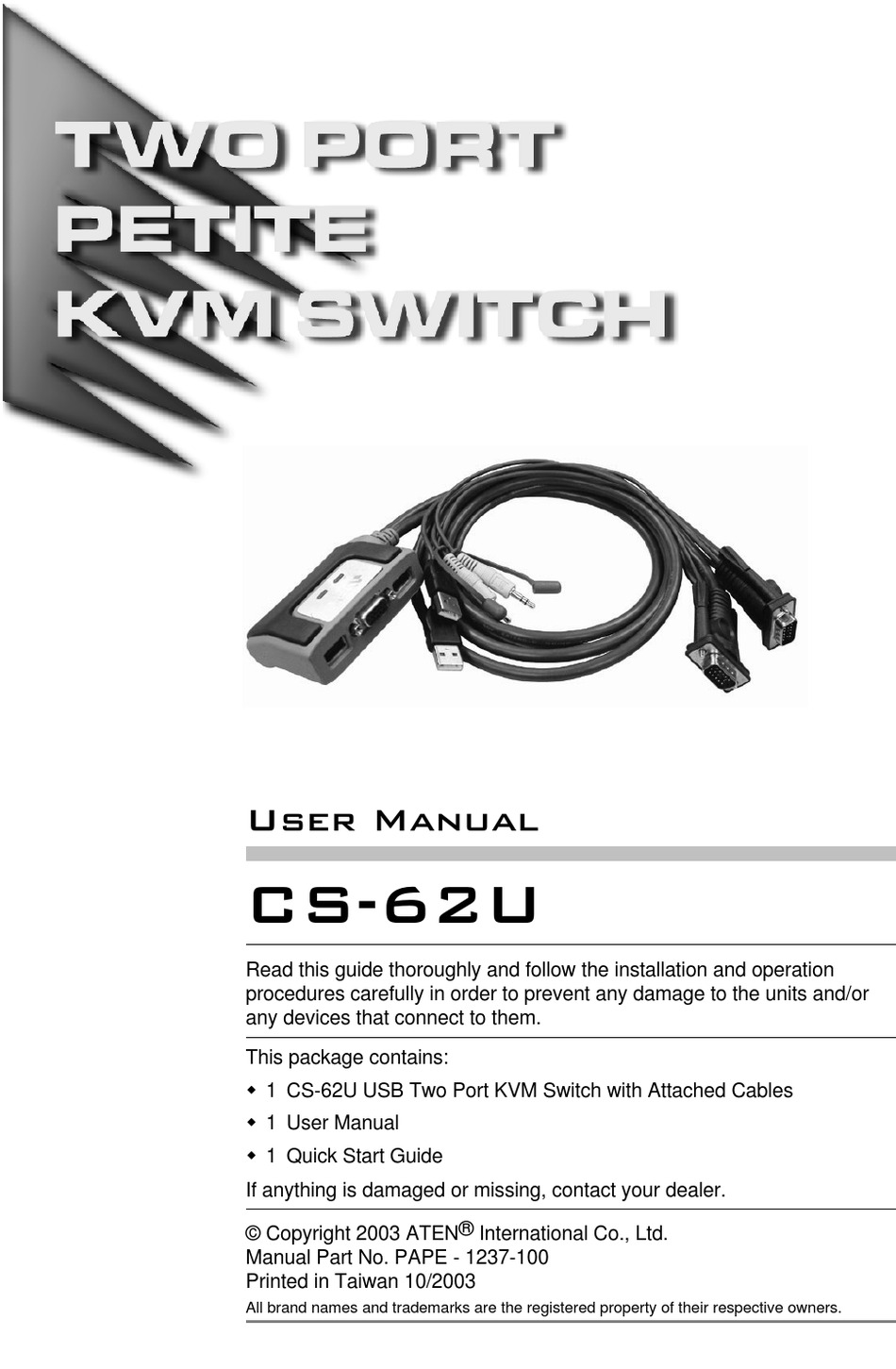

User Manual

CS-62U
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
M 1 CS-62U USB Two Port KVM Switch with Attached Cables
M 1 User Manual
M 1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
© Copyright 2003 ATEN ® International Co., Ltd.
Manual Part No. PAPE - 1237-100
Printed in Taiwan 10/2003
All brand names and trademarks are the registered property of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-62U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN CS-62U

Summary of Contents for ATEN CS-62U

  • Page 1: User Manual

    This package contains: M 1 CS-62U USB Two Port KVM Switch with Attached Cables M 1 User Manual M 1 Quick Start Guide If anything is damaged or missing, contact your dealer.
  • Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 Overview The CS-62U USB Petite KVM Switch is a control unit that allows access to two computer systems from a single console (keyboard, monitor, and mouse). Before the development of the CS-62U, the only way to control multiple computer configurations from a single console was through a complex and costly network system.
  • Page 4 Features M One console (VGA, SVGA or Multisync monitor plus a USB keyboard and USB mouse) controls two computers M Compact, small footprint, design features two molded-in KVM (keyboard, video, mouse) cables M Easy to install - no software required - connecting cables to the computers is all it takes M Easy to operate - computer selection via hotkeys - auto scan function to monitor computer operation...

  • Page 5: Hardware Requirements

    M A USB type A port Cables For optimum signal integrity and to simplify the layout, two high- quality 3-in-1 CS Custom KVM cables have been designed into the CS-62U. There is no need for a separate cable purchase. - 3 -...

  • Page 6: Front View

    Front View 1. Port LEDs A LED lights to indicate its corresponding port is the one that has the KVM focus. The LED that has one dot represents Port 1; the LED with two dots represents Port 2. Depending on the port’s status, the LED may flash according to a specific pattern (see the LED Display Table, p.

  • Page 7: Installation

    Port 2 computer (see p. 8 for hotkey port selection). 4. Turn on the power to the computers. Note: The CS-62U’s Power On default is to link to the first computer you turn on. - 5 -...
  • Page 8 - 6 -...

  • Page 9: Hotkey Port Access

    Hotkey Port Access Invoking Hotkey Mode The CS-62U provides an extensive, easy-to-use, hotkey func- tion that makes it convenient to control and configure your KVM installation from the keyboard. With the exception of Skip Mode (see p. 9), all hotkey operations begin by invoking Hotkey Mode (HKM).
  • Page 10 Hotkey Port Access Hotkey Port Access allows you to select which computer has the KVM focus. The CS-62U provides the following Hotkey Port Access features: M Selecting the Active Port M Auto Scan Mode M Skip Mode Selecting the Active Port:...
  • Page 11 Auto Scan Mode: The CS-62U’s Auto Scan feature automatically switches the KVM focus between the two computers at regular 5 second intervals so that you can monitor their activity without having to take the trouble of switching yourself. To start auto scanning: 1.

  • Page 12: Hotkey Configuration

    Hotkey Configuration Alternate Invocation Keys An alternate set of Hotkey Invocation keys is provided in case the default set conflicts with programs running on the computers. To switch to the alternate Hotkey Invocation set, do the following: 1. Invoke HKM (see p. 7) 2.

  • Page 13: Platform / Language Setup

    Platform / Language Setup The default port settings are for a PC Compatible operating platform, and US English keyboard language code. You can change these by bringing the KVM focus to the port you want to change and using the hotkey combinations shown below. The Hotkey entry method is as follows: 1.

  • Page 14: Restore Defaults

    [F5] Performs a USB reset Restore Defaults To restore the CS-62U’s settings to their default values: 1. Invoke HKM (see p. 7). 2. Press and release the R key. 3. Press [Enter] The CS-62U’s default settings are the following:...

  • Page 15: Keyboard Emulation

    Keyboard Emulation Sun Keyboard The USB 101/104 key keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. Note: When using [Ctrl] combinatons, press and release the Ctrl key, then press and release the activation key.

  • Page 16: Mac Keyboard

    Mac Keyboard The keyboard emulation mappings from the Mac keyboard to the PS/2 keyboards (101 key and 104 key), are listed in the table below. Note: When using key combinatons, press and release the first key (Ctrl or Alt), then press and release the activation key.

  • Page 17: Keyboard Language Codes

    Appendix LED Display Table Activity Indication Port is not selected. On (Steady) Port is connected to an active computer. Flashing (On and Off equal) Port is connected to an active computer and is being accessed in Auto Scan mode. Keyboard Language Codes Language Code US English...

  • Page 18: Troubleshooting

    Troubleshooting Symptom Possible Cause Action Keyboard Loose cables. Check cable connections to make sure and/or Mouse they are completely seated in their sockets. Responding Keyboard/Mouse Unplug the keyboard/mouse from the needs to be reset. Console Keyboard Port, then plug it back in.

  • Page 19: Specifications

    Specifications Function Specification Computer Connections Port Selection Hot Keys LEDs Selected Console Keyboard 1 x Type A USB port Connectors Mouse 1 x Type A USB port Video 1 x HDB-15 female Audio 1 x Stereo earphone jack KVM Cable Keyboard 1 x Type A USB plug Connectors...

  • Page 20: Limited Warranty

    Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
