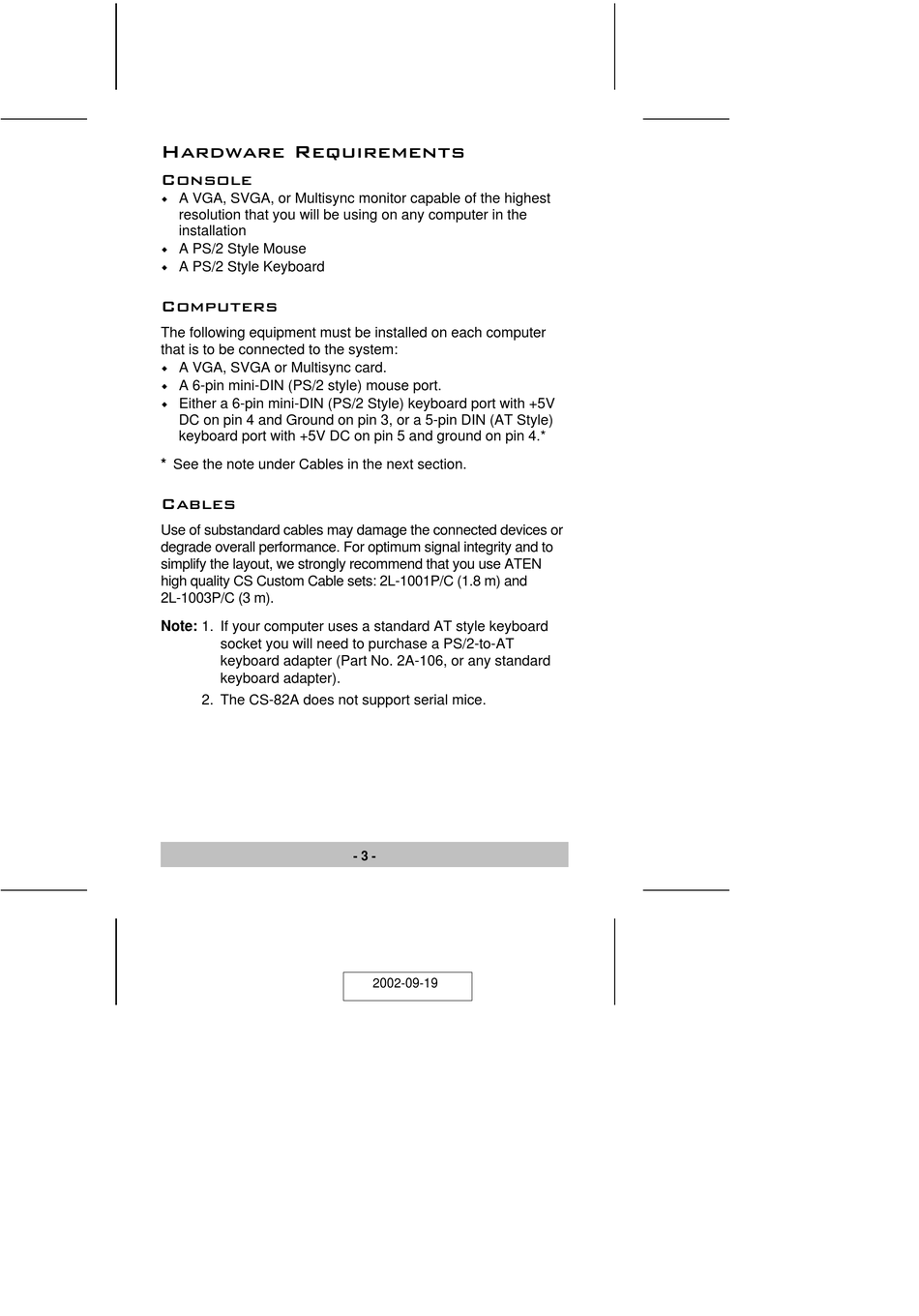

Hardware Requirements

Console
M
A VGA, SVGA, or Multisync monitor capable of the highest
resolution that you will be using on any computer in the
installation
M
A PS/2 Style Mouse
M
A PS/2 Style Keyboard
Computers
The following equipment must be installed on each computer
that is to be connected to the system:
M
A VGA, SVGA or Multisync card.
M
A 6-pin mini-DIN (PS/2 style) mouse port.
M
Either a 6-pin mini-DIN (PS/2 Style) keyboard port with +5V
DC on pin 4 and Ground on pin 3, or a 5-pin DIN (AT Style)
keyboard port with +5V DC on pin 5 and ground on pin 4.*
* See the note under Cables in the next section.
Cables
Use of substandard cables may damage the connected devices or
degrade overall performance. For optimum signal integrity and to
simplify the layout, we strongly recommend that you use ATEN
high quality CS Custom Cable sets: 2L-1001P/C (1.8 m) and
2L-1003P/C (3 m).
Note: 1. If your computer uses a standard AT style keyboard
socket you will need to purchase a PS/2-to-AT
keyboard adapter (Part No. 2A-106, or any standard
keyboard adapter).
2. The CS-82A does not support serial mice.
