CHAPTER 13: RAPID SPANNING TREE PROTOCOL
Note
MULTILINK ML3000 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL

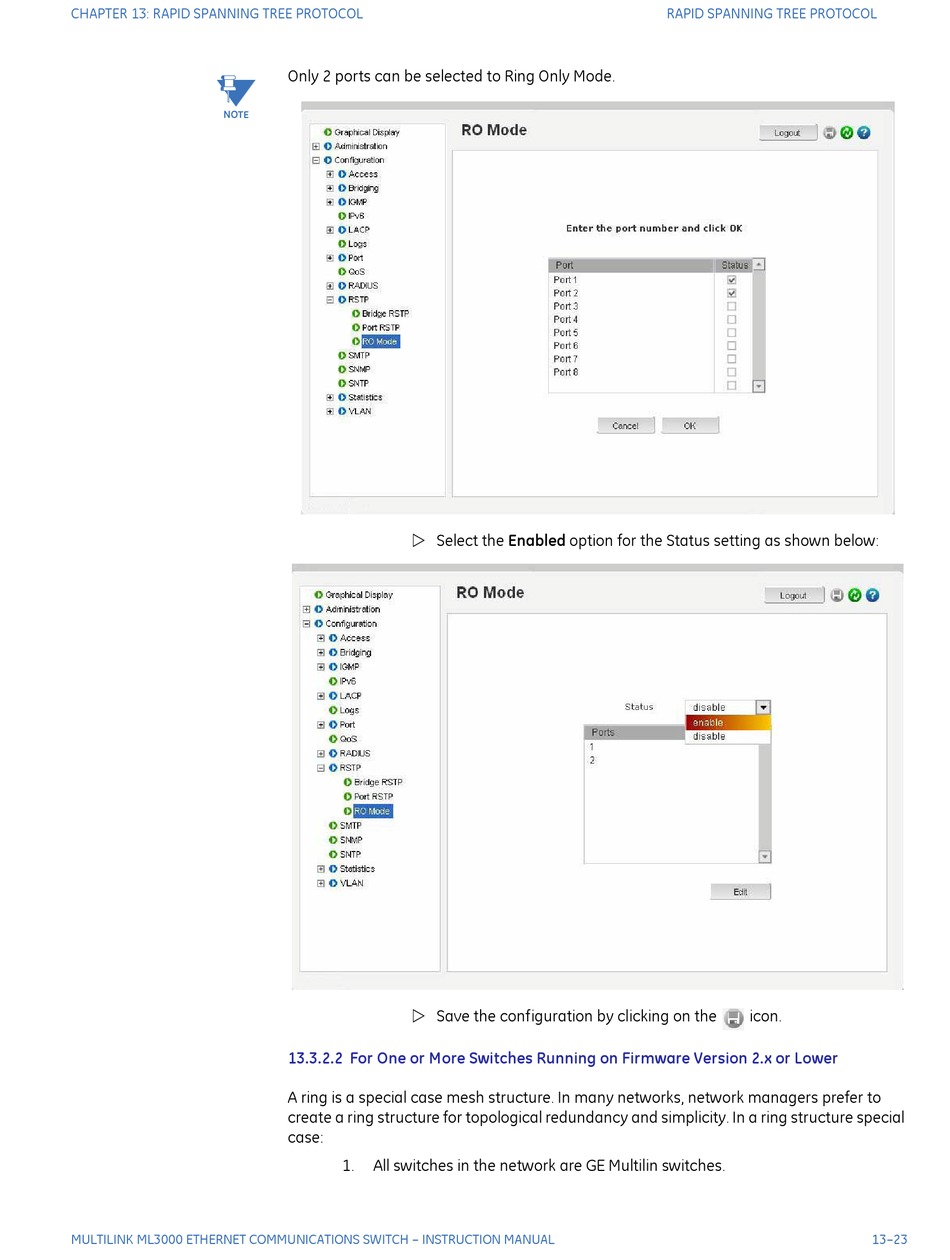

Only 2 ports can be selected to Ring Only Mode.
 Select the Enabled option for the Status setting as shown below:
 Save the configuration by clicking on the
13.3.2.2 For One or More Switches Running on Firmware Version 2.x or Lower
A ring is a special case mesh structure. In many networks, network managers prefer to
create a ring structure for topological redundancy and simplicity. In a ring structure special
case:
1. All switches in the network are GE Multilin switches.
RAPID SPANNING TREE PROTOCOL
icon.
13–23
