8. Align the thumbscrews on the sides of the server with the slide mounts in the
rack (see
FIGURE 5-8
If necessary, readjust the slide mounts to align the server properly. The thumbscrews
need to be finger-tight.

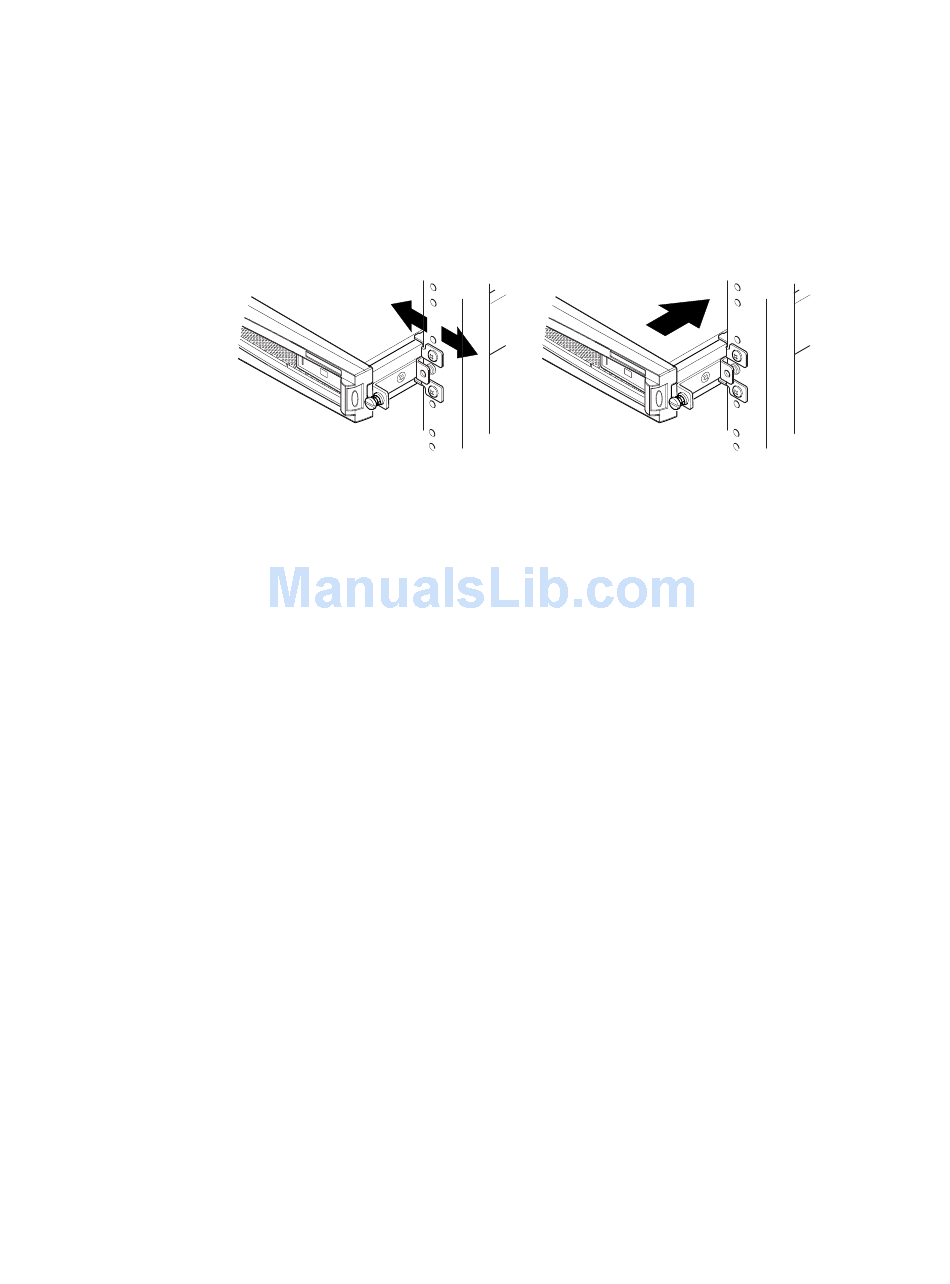

Adjusting the Slide Mounts and Screwing the Server Into the Rack
FIGURE 5-8
9. Tighten the slide mounts in the rack if you have not fully secured them yet.
10. When the slide mounts are secure, use a screwdriver to tighten the thumbscrews
on the side of the server.
The server is now securely installed in the rack.
).
Chapter 5 Installing the Server Into a Rack 5-9
