- Page 1 Sun Fire V100 Server User’s Guide ™ Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303 U.S.A. 650-960-1300 Part No.816-2756-10 Revision A December 2001 Send comments about this document to: docfeedback@sun.com...
- Page 2 Sun, Sun Microsystems, le logo Sun, AnswerBook2, docs.sun.com, UltraSPARC™-IIe, OpenBoot™ PROM, Solaris et Netra sont des marques de fabrique ou des marques déposées, ou marques de service, de Sun Microsystems, Inc. aux Etats-Unis et dans d’autres pays. Toutes les marques SPARC sont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc.
-
Page 3: Table Of Contents
Preinstalled Software 3 Optional Components 4 Installation Quick Start 5 Installing the Sun Fire V100 Server Into a Rack 7 Choosing Between a Rack and a Cabinet 8 Installing the Sun Fire V100 Server Into a 19-Inch Wide or 72-inch Tall Four-Post Rack 8... - Page 4 Powering On and Configuring the Sun Fire V100 Server 33 Powering On and Configuring the Server 34 Using the Power (On/Standby) Switch 39 Managing the Sun Fire V100 Server From the lom> Prompt 43 Introduction to Lights-Out Management 43 Using LOM Commands 44 Powering On or Resetting the Server From the LOM Shell 45 Controlling the Server’s Booting Behavior 47...
- Page 5 Checking the Supply Rail Voltages and Internal Circuit Breakers (lom - v) 67 Configuring Automatic Server Restart 73 Enabling the LOM Watchdog Process From Your Own Script or Command (lom -W on) 74 Other LOM Tasks You Can Perform From the Solaris Prompt 76 Interpreting the LEDs 81 Interpreting the Front- and Back-Panel LEDs 82 Front-Panel LEDs 82...
- Page 6 Problems Connecting to the Server Using a Handheld Device 106 OpenBoot PROM Initialization Aborts and the Server Will Not Boot 106 IDE Controller Failure 107 Jumper Settings 107 Frequently Asked Questions 108 Acoustic Noise Generated 116 Environmental Compliance Information 117 Sun Fire V100 Server User’s Guide • December 2001...
- Page 7 Panels Removed for Clarity) 12 Fastening the Slide Mounts to a Standard 19-inch Rack 13 FIGURE 2-6 Sliding the Sun Fire V100 Server Into a Standard 19-Inch Rack 14 FIGURE 2-7 Adjusting the Slide Mounts and Screwing the Server Into the Rack 15...
- Page 8 Installing Memory Into a Socket on the System Board 92 FIGURE 8-6 Removing the HDD Placeholder 93 FIGURE 8-7 Installing a Hard Disk Drive 94 FIGURE 8-8 The obdiag Menu 101 FIGURE 10-1 viii Sun Fire V100 Server User’s Guide • December 2001...
- Page 9 Tables Contents of the Ship Kit 3 TABLE 1-1 Customer Installable Hardware 4 TABLE 1-2 19-inch Rackmounting Kit 8 TABLE 2-1 Server Serial Ports 20 TABLE 3-1 Settings for Connecting to the Serial A/LOM or Serial B Port 21 TABLE 3-2 Serial Adapters 22 TABLE 3-3 Pin Crossovers in the Sun DB-25 (25-Pin) Adapter 22...
- Page 10 Sun Fire V100 Server User’s Guide • December 2001...
-
Page 11: How This Book Is Organized
Chapter 2 provides information about installing the Sun Fire V100 server into a rack and describes how to connect the cables. Chapter 3 provides instructions on setting up console connections to the server via its serial A/LOM port. - Page 12 Chapter 8 describes how to swap system configuration cards and how to open the Sun Fire V100 server to add memory or a hard disk drive. Chapter 9 describes how to reinstall the Solaris operating environment.
-
Page 13: Typographic Conventions
Typographic Conventions Typeface Meaning The names of commands, files, AaBbCc123 and directories; on-screen computer output What you type, when AaBbCc123 contrasted with on-screen computer output AaBbCc123 Book titles, new words or terms, words to be emphasized Command-line variable; replace with a real name or value Shell Prompts Shell... -
Page 14: Sun Welcomes Your Comments
Please include the part number of your document in the subject line of your email. Safety Precautions For your protection, observe the following safety precautions when setting up your equipment: Sun Fire V100 Server User’s Guide • December 2001... -
Page 15: Modifications To Equipment
Follow all cautions and instructions marked on the equipment. Never push objects of any kind through openings in the equipment. Dangerous voltages may be present. Conductive foreign objects can produce a short circuit that could cause fire, electric shock, or damage to your equipment. Symbols The following symbols may appear in this manual: Caution –... - Page 16 Caution – All supply connections, wiring, wire protection, and wire routing must be made in accordance with applicable sections and requirements of national electrical code and local electrical authorities. Sun Fire V100 Server User’s Guide • December 2001...
-
Page 17: Installation And Configuration
Installation and Configuration PA RT... -
Page 19: Introducing The Sun Fire V100 Server
Introducing the Sun Fire V100 Server This chapter gives an overview of the Sun Fire V100 server. It lists the features of the server and the contents of the ship kit, and lists the optional components available. It also gives you an overview of the installation process. -
Page 20: Overview Of The Sun Fire V100 Server

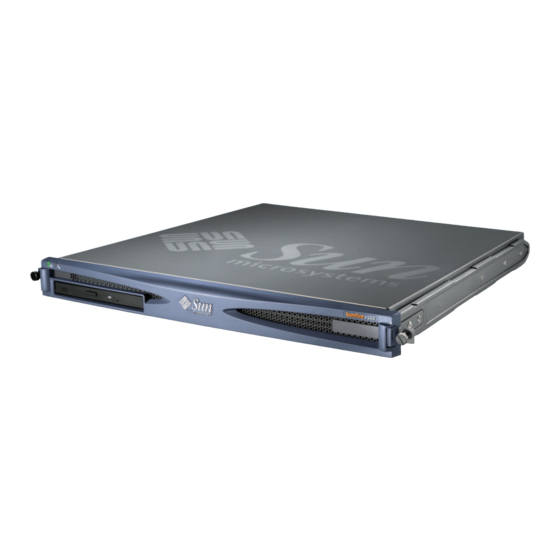

Overview of the Sun Fire V100 Server The Sun Fire V100 server is a single-processor server in a one rack unit (1 RU) chassis. It is designed to maximize the density of high-performance Solaris servers in a rack. The Sun Fire V100 server... -
Page 21: Contents Of The Ship Kit
Sun Fire V100 Server Product Notes Preinstalled Software The Sun Fire V100 server is preinstalled with the Solaris 8 operating environment (64 bit), including Lights-Out Management (LOM). The server will only support a 64 bit kernel, but applications written for a 32 bit environment can be used as long as they do not depend upon a 32 bit driver. -
Page 22: Optional Components
Customer Installable Hardware TABLE 1-2 Optional Components 128-Mbyte DIMM 256-Mbyte DIMM 512-Mbyte DIMM 40 Gbyte, 7200 rpm hard disk drive Sun Fire V100 Server User’s Guide • December 2001 for a list of TABLE 1-2 Part Number X7090A X7091A X7084A... -
Page 23: Installation Quick Start
Further Information Reinstalling the Solaris software. Troubleshooting Solaris 8 documentation See in the Sun Fire V100 Server User’s Guide “Installing the Sun Fire V100 Server Into a Rack” on page 7 “Connecting the Cables” on page 17 “Setting Up a Console Connection to the Server”... - Page 24 Sun Fire V100 Server User’s Guide • December 2001...
-
Page 25: Installing The Sun Fire V100 Server Into A Rack
Installing the Sun Fire V100 Server Into a Rack This chapter explains how to install the Sun Fire V100 server into a rack and describes the mounting options available. It also contains a guide on connecting the cables to the server. The information is provided in the following sections: “Choosing Between a Rack and a Cabinet”... -
Page 26: Choosing Between A Rack And A Cabinet
Choosing Between a Rack and a Cabinet The Sun Fire V100 server can be installed in either a rack or a cabinet. Factors that might influence your decision include: Security If other people have access to the room in which your servers are located, you can increase security by locking the servers in a cabinet. -
Page 27: Figure 2-1 Cable Management Bracket
For the Sun StorEdge 72-inch tall (19-inch wide) rack, the double-angled ear (A) must be to the rear (see FIGURE 2-2 Chapter 2 Installing the Sun Fire V100 Server Into a Rack... -
Page 28: Figure 2-2 Positioning The Slide Mounts For A Sun Storedge 72-Inch Tall Rack
3. Measure the distance between the front and back posts of your rack. 4. Adjust the slide mounts so that the distance between the front and back mounting ears is approximately the distance between the front and back posts of the rack. Sun Fire V100 Server User’s Guide • December 2001... -
Page 29: Figure 2-4 Fastening The Slide Mounts To A Sun Storedge 72-Inch Tall Rack - Rear View (Side Panels Removed For Clarity)
Fastening the Slide Mounts to a Sun StorEdge 72-inch Tall Rack – Rear View FIGURE 2-4 (Side Panels Removed for Clarity) FIGURE 2-4 FIGURE 2-5 . Leave the screws slightly loose to FIGURE 2-6 Chapter 2 Installing the Sun Fire V100 Server Into a Rack . Leave the... -
Page 30: Figure 2-5 Fastening The Slide Mounts To A Sun Storedge 72-Inch Expansion Rack - Front View
Fastening the Slide Mounts to a Sun StorEdge 72-inch Expansion Rack – Front FIGURE 2-5 View (Side Panels Removed for Clarity) Sun Fire V100 Server User’s Guide • December 2001... -
Page 31: Figure 2-6 Fastening The Slide Mounts To A Standard 19-Inch Rack
Fastening the Slide Mounts to a Standard 19-inch Rack FIGURE 2-6 7. Slide the server into the rack (see FIGURE 2-7 Chapter 2 Installing the Sun Fire V100 Server Into a Rack... -
Page 32: Figure 2-7 Sliding The Sun Fire V100 Server Into A Standard 19-Inch Rack
Sliding the Sun Fire V100 Server Into a Standard 19-Inch Rack FIGURE 2-7 Sun Fire V100 Server User’s Guide • December 2001... -
Page 33: Figure 2-8 Adjusting The Slide Mounts And Screwing The Server Into The Rack
Hook the bracket over the slide mounts at the rear of the server (see You can use the loops in the bracket to secure the cables with cable ties. Chapter 2 Installing the Sun Fire V100 Server Into a Rack FIGURE 2-9... -
Page 34: Tips For Using A Sun Storedge 72-Inch Rack
The following filler panels are available from your local Sun sales representative: Sun Fire V100 Server User’s Guide • December 2001 Cable management bracket... -
Page 35: Connecting The Cables
The Server’s Back Panel FIGURE 2-10 To Connect the Cables to the Server 1. Connect the power cord. FIGURE 2-10 A/LOM USB 1 B Serial USB 0 Ethernet 1 Ethernet 0 Chapter 2 Installing the Sun Fire V100 Server Into a Rack... - Page 36 If you want to use the server’s Lights Out Management (LOM) facilities, use the port labeled Serial A/LOM to make your serial connection to the server. Note – The Sun Fire V100 server is supplied with shielded serial cables. Use only these cables when making serial connections to the server.
-
Page 37: Communicating With The Server
C H A P T E R Communicating With the Server This chapter provides information on setting up a console connection to a Sun Fire V100 server using a variety of devices. The information is contained in the following sections: “Setting Up a Console Connection to the Server”... -
Page 38: Setting Up A Console Connection To The Server
Sun workstation connected via a terminal server Modem Handheld device Which Is the Appropriate Serial Port? There are two serial ports on the rear of the Sun Fire V100 server. serial port labels and function of each port. Server Serial Ports TABLE 3-1... -
Page 39: Serial Connection Settings
A LOM B Serial Serial Port Pins 1 to 8 FIGURE 3-1 Serial Connection Settings The settings you need to use for a serial connection are listed in need to perform binary data transfers (that is, transfers of anything more than simple ASCII character streams), use the B Serial port, as communication on the A LOM port is subject to interruption by the LOM device (see “Introduction to Lights- Out Management”... -
Page 40: Serial Adapters
Pin 4 (Signal Ground) Pin 5 (Signal Ground) Pin 6 (RXD) Pin 7 (DSR) Pin 8 (CTS) Sun Fire V100 User’s Guide • December 2001 describes which type to use, and TABLE 3-3 Adapter DB-25 DB-9 (female, supplied by Sun) -
Page 41: Connecting To The Server Using A Sun Workstation Or Ascii Terminal
To Use the DB-25 Adapter 1. Insert one end of the standard RJ-45 patch cable supplied with the Sun Fire V100 server into one of the server’s serial ports. 2. Insert the other end of the RJ-45 patch cable into the supplied DB-25 adapter. -
Page 42: To Connect To The Server Using A Sun Workstation
To Connect to the Server Using an ASCII Terminal 1. Set up a connection between the terminal and the Sun Fire V100 server. See “To Use the DB-25 Adapter” on page 23. 2. For the General terminal settings, refer to the terminal operating manual. -
Page 43: Connecting To The Server Using A Terminal Server
Connecting to a Cisco Terminal Server The serial ports on the Sun Fire V100 server are DTE ports. If you connect these to other DTE ports, then the cabling between them must perform a crossover (also known as a roll-over). -
Page 44: Connecting To Other Terminal Servers
For terminals from other manufacturers, check the documentation to see if the pinouts of the serial ports on the Sun Fire V100 server match those of the serial ports on your terminal server. If they do not, you need to make a crossover (null-modem) cable that takes each pin on the Sun Fire V100 server’s serial port to the... -
Page 45: Connecting To The Server Using A System Running Microsoft Windows
Connecting to the Server Using a System Running Microsoft Windows If you want to configure and operate a Sun Fire V100 server from a PC or laptop running Microsoft Windows, you can do so using the Windows Hyperterminal. Note – The following procedure relates to Windows 98. Other variants of Microsoft Windows may differ slightly. - Page 46 The lom> prompt now appears in the Windows Hyperterminal. For information about how to power on and configure the server, go to “Powering On and Configuring the Server” on page 34. Sun Fire V100 User’s Guide • December 2001 Setting 9600...
-
Page 47: Connecting To The Server Using A Handheld Device
To Set Up the Hardware Note – To connect a handheld device to a Sun Fire V100 server you need a male DB- 9 adapter that performs the same crossovers as those listed in 1. - Page 48 You can now configure the Solaris operating environment and manage the server through the handheld device’s terminal emulator. For information on how to power on and configure the server, go to “Powering On and Configuring the Server” on page 34. Sun Fire V100 User’s Guide • December 2001 Method Serial Serial...
-
Page 49: Using The Arrow Keys
Using the Arrow Keys The arrow keys available on the PalmOS device do not work with a Sun Fire V100 server. To work around this problem, specify while you configure the Solaris operating environment that you are using an Xterm device. -
Page 50: Table 3-7 Example Palmos Terminal Emulator Macros
Table 3-7 shows some example macros. Example PalmOS Terminal Emulator Macros TABLE 3-7 Macro Name backspace arrow-enable Sun Fire V100 User’s Guide • December 2001 Command Action Enables the Graffiti stroke for “delete” stty erase ^H\n to work on the screen without printing the ^H character. -
Page 51: Powering On And Configuring The Sun Fire V100 Server
C H A P T E R Powering On and Configuring the Sun Fire V100 Server This chapter explains how to power on and configure the server, and how to use the Power (On/Standby) switch. The chapter contains the following sections: “Powering On and Configuring the Server”... -
Page 52: Powering On And Configuring The Server
Powering On and Configuring the Server The Sun Fire V100 server comes preinstalled with the Solaris 8 operating environment. When you power on the server for the first time, you will automatically be taken through a configuration procedure. This procedure consists of a number of questions. - Page 53 During booting you will be prompted for certain information. The information you provide determines the configuration of the server. 4. Specify the type of terminal you are using to communicate with the Sun Fire V100 server. 5. Specify whether you need IPv6 enabled, and then follow the instructions on the screen.
- Page 54 During booting you will be prompted for certain information. The information you provide determines the configuration of the server. 4. Specify the type of terminal you are using to communicate with the Sun Fire V100 server. 5. When asked if you want the server to be networked, answer Yes.
-
Page 55: To Clear The Configuration And Start Again
For more information about the lom> prompt and the commands that are available from it, see Chapter 5. 4. Specify the type of terminal you are using to communicate with the Sun Fire V100 server. 5. When prompted to indicate whether you want the server to be networked, specify 6. - Page 56 “To Power On Without the Server’s Details Registered at a Name Server” on page 35. “To Power On a Standalone Server for the First Time” on page 37 Sun Fire V100 Server User’s Guide • December 2001 prompt, go to the prompt by typing:...
-
Page 57: Using The Power (On/Standby) Switch
Using the Power (On/Standby) Switch Caution – The power switch on the back panel of the Sun Fire V100 server is not an On/Off switch, it is an On/Standby switch. It does not isolate the equipment. The power (On/Standby) switch is a rocker type, momentary action switch. It controls only low-voltage signals;... - Page 58 To completely remove power from the server: Disconnect the power cable from the server. Sun Fire V100 Server User’s Guide • December 2001...
-
Page 59: Remote And Local Management
Remote and Local Management PA RT... -
Page 61: Managing The Sun Fire V100 Server From The Lom> Prompt
From the lom> Prompt This chapter introduces the Lights-Out Management (LOM) facilities available for the Sun Fire V100 server and describes how to use the /usr/sbin/lom utility, which provides a user interface to the device. The chapter contains the following sections: “Introduction to Lights-Out Management”... -
Page 62: Using Lom Commands
Configure the server to restart automatically after a lockup. These LOM facilities are provided by the LOM device, which in the Sun Fire V100 server is contained on the system board. As long as the server is connected to a power supply, even if it is not powered on, you will see the lom>... -
Page 63: Powering On Or Resetting The Server From The Lom Shell
Powering On or Resetting the Server From the LOM Shell Note – When a Sun Fire V100 server is connected to a power supply, it is always either fully powered on or in standby mode. To remove power entirely from the server you must disconnect its power cables or open all external circuit breakers. - Page 64 Without it, the command will not work. For more information about setting up user permissions, see “Setting Up LOM Privileges for Named Users” on page 54. Sun Fire V100 Server User’s Guide • December 2001...
-
Page 65: Controlling The Server's Booting Behavior
For more information, see “Setting Up LOM Privileges for Named Users” on page 54. Controlling the Server’s Booting Behavior The LOM shell includes a bootmode command: bootmode [-u][normal|forth|reset_nvram|diag|skip_diag] Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt PROM mode and... -
Page 66: Table 5-1 Boot Modes
Sun keyboards with the Stop key combinations. (However, the bootmode command is provided because the Stop key combinations are not available for the Sun Fire V100 server: you cannot use them from a keyboard that is connected to the server with a serial link.) You must have r-level LOM permission to use the bootmode command. -
Page 67: Monitoring The Server From The Lom Shell
This section describes commands that enable you to check the status of the server and the components monitored by the LOM device. It also describes how to view the events stored in the LOM device’s event log. Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt... - Page 68 1 OK speed 99% 2 OK speed 95% PSUs: 1 OK Temperature sensors: 1 28degC OK Sun Fire V100 Server User’s Guide • December 2001 shows sample output from the environment command. In this Sample Output From the environment Command...
-
Page 69: Viewing The Lom Event Log
If the server has been booted since all power was last removed, then the time stamp indicates the number of days, hours, and minutes since the last reboot. To View the Last 10 Events in the Event Log Type: lom> show eventlog Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt... - Page 70 By default, the loghistory command does not pause the display. Sun Fire V100 Server User’s Guide • December 2001 is the...
-
Page 71: Verifying That A Component Has Been Fixed
To Check the Status of a Component Type: lom> check This causes the LOM device to update the status of all the components it monitors. Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt... -
Page 72: Setting Up Lom Privileges For Named Users
Setting Up LOM Privileges for Named Users You can specify up to four named users of the LOM device on a Sun Fire V100 server. By default, no users are set up, and therefore no user login prompt appears when you use the LOM escape sequence. - Page 73 LOM user account that already exists. Note – You must have User Administration (u-level) authorization to set a password for a user (see “Permissions Available for LOM Users” on page 54). Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt...
- Page 74 If you delete all the users you have set up, you will no longer see the login prompt when you go to the lom> prompt. Sun Fire V100 Server User’s Guide • December 2001 is the name of an existing LOM user account.
- Page 75 This stands for “reset permission”. It enables the user you have named to reset the server and to power it on and off using the LOM device. Use this character to specify that no permissions are assigned. Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt...
-
Page 76: Setting The Lom Configurable Variables
To Set an Alarm Flag Turn the alarm on by typing: lom> alarmon n where n is the number of the alarm you want to turn on: 1, 2, or 3. Sun Fire V100 Server User’s Guide • December 2001... - Page 77 Note – This is the equivalent of using the lom -E off command from the Solaris shell. For more details, see “To Stop LOM From Sending Reports to the Serial A/ LOM Port (lom -E off)” on page 77. Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt...
-
Page 78: Separating Lom From The Console On The Serial A/Lom Port
To Dedicate Serial A/LOM to LOM 1. Set up console connections to both the Serial A/LOM port and the Serial B port. 2. At the Solaris prompt, type: # eeprom input-device=ttyb # eeprom output-device=ttyb # reboot Sun Fire V100 Server User’s Guide • December 2001... -
Page 79: Viewing Event Reports That Lom Sends To Syslogd
The syslogd handles these in the way it has been configured to handle event reports. This means that by default it sends them to the console and stores them in this directory: /var/adm/messages Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt... -
Page 80: Lom Shell Command List
Sun Fire V100 Server User’s Guide • December 2001 Description Sets alarm n off, where n is 1, 2, or 3. These three alarms are software flags. They are associated with no specific conditions but are available to be set by your own processes. -
Page 81: Table 5-2 Lom Commands
Displays the details of a named user’s LOM account. usershow Sets or changes a user’s password. userpassword Sets the permission levels for a named user. userperm Displays the version number of the LOM device. version Chapter 5 Managing the Sun Fire V100 Server From the lom> Prompt... - Page 82 Sun Fire V100 Server User’s Guide • December 2001...
-
Page 83: Managing The Sun Fire V100 Server From The Solaris Prompt
C H A P T E R Managing the Sun Fire V100 Server From the Solaris Prompt This chapter describes how to monitor and manage the Sun Fire V100 server with LOM-specific commands in the Solaris 8 operating environment. It contains the following sections: “Monitoring the System From the Solaris Prompt”... -
Page 84: Monitoring The System From The Solaris Prompt
To Check the Power Supply Unit (lom -p) To check whether the input lines and the output line for the power supply unit are working normally, type: # lom -p PSU: 1 OK Sun Fire V100 Server User’s Guide • December 2001... -
Page 85: Checking The Supply Rail Voltages And Internal Circuit Breakers (Lom -V)
Checking the Supply Rail Voltages and Internal Circuit Breakers (lom -v) The supply rails are the Sun Fire V100 server’s internal power lines. If the status of any of these is faulty, contact your local Sun sales representative. It means that you have either a faulty system board or a faulty PSU. -
Page 86: To Check The Internal Temperature
1 enclosure 25 degC : warning 67 degC : shutdown 72 degC System Over-temperature Sensors: 1 cpu status=ok This checks the server’s internal temperature, and the warning and shutdown threshold temperatures. Sun Fire V100 Server User’s Guide • December 2001... - Page 87 However, although the watchdog is enabled by default when Solaris boots, the Hardware reset option is not. This means that the LOM device does not, by default, automatically restart the server after a lockup. Chapter 6 Managing the Sun Fire V100 Server From the Solaris Prompt...
- Page 88 Plus Details of the Device’s Own Configuration Type: # lom -a Code example 6-1 gives sample output of this command. CODE EXAMPLE 6-1 PSUs: 1 OK Fans: Sun Fire V100 Server User’s Guide • December 2001 Sample lom -a output...
- Page 89 LOMlite alarm states: Alarm1=off Alarm2=off Alarm3=on Fault LED=off LOMlite watchdog (ASR) settings: Watchdog=off Hardware reset=off Timeout=127 s Supply voltages: 5V status=ok 3V3 status=ok +12V status=ok -12V status=ok VDD core status=ok Chapter 6 Managing the Sun Fire V100 Server From the Solaris Prompt...
- Page 90 Note that the first event is the oldest FIGURE 6-1 and that each event has a date stamp indicating the days, hours and minutes since the system was last booted. Sun Fire V100 Server User’s Guide • December 2001 Sample lom -a output USB0 status=ok USB1 status=ok...
-
Page 91: Configuring Automatic Server Restart
This is the script that runs the LOM watchdog process: # priocntl -e -c RT lom -W on,40000,10000 -R on When you have done this, LOM will restart the server whenever the watchdog times out. Chapter 6 Managing the Sun Fire V100 Server From the Solaris Prompt... -
Page 92: Enabling The Lom Watchdog Process From Your Own Script Or Command (Lom -W On)
-R option. For more information, see “To Set the Hardware Reset Option From a Script or Command (lom -R on)” on page 75. Sun Fire V100 Server User’s Guide • December 2001... - Page 93 To turn the Hardware reset option on, type the following at the command line: # lom -R on To turn the Hardware reset option off from the command line,type: # lom -R off Chapter 6 Managing the Sun Fire V100 Server From the Solaris Prompt...
-
Page 94: Other Lom Tasks You Can Perform From The Solaris Prompt
1, 2, or 3. To Turn the Fault LED On and Off (lom -F) To turn the Fault LED on, type: # lom -F on Sun Fire V100 Server User’s Guide • December 2001... - Page 95 To prevent LOM from interrupting the console on Serial A/LOM, turn serial event reporting off. To stop LOM from sending reports to the Serial A/LOM port, type: # lom -E off Chapter 6 Managing the Sun Fire V100 Server From the Solaris Prompt...
- Page 96 (http://sunsolve.sun.com) or from your local Sun sales representative, and type the following: # lom -G default Note – LOM firmware upgrades are released as patches and include detailed installation instructions. Sun Fire V100 Server User’s Guide • December 2001...
-
Page 97: Maintenance And Troubleshooting
Maintenance and Troubleshooting PA RT... -
Page 99: Interpreting The Leds
C H A P T E R Interpreting the LEDs This chapter describes the location and function of the warning LEDs on the server, and contains the following section: “Interpreting the Front- and Back-Panel LEDs” on page 82... -
Page 100: Interpreting The Front- And Back-Panel Leds
Interpreting the Front- and Back-Panel LEDs The Sun Fire V100 server contains two front panel LEDs (see rear panel LEDs (see only. Those on the back panel indicate the presence of up to two ethernet connections, and replicate the power and fault information of the front LEDs. -
Page 101: Back-Panel Leds
The LOM watchdog has timed out, indicating that the server has locked up. You can configure the server to restart automatically after a lockup (see Chapter 6). The Fault LED flashes when a problem has occurred that is fatal to the server. Circumstances that cause the Fault LED to flash include the following: The speed of the fan inside the server is too low. -
Page 102: Figure 7-2 Back-Panel Power And Fault Leds
For information about turning the Fault LEDs on and off from the LOM shell, see Chapter 5. For more information about the lom commands included in the Solaris operating environment, see Chapter 6. Sun Fire V100 Server User’s Guide • December 2001 Fault... -
Page 103: Removing And Replacing Components
C H A P T E R Removing and Replacing Components This chapter details the procedures for moving the system configuration card from one server to another, and for changing replaceable components. It contains the following sections: “Adding Components or Replacing A Server” on page 86 “Replacing the System Configuration Card”... -
Page 104: Adding Components Or Replacing A Server
Adding Components or Replacing A Server For a list of components that are available for the Sun Fire V100 server, see “Optional Components” on page 4. If there is a fault with any of the components listed below, replace the whole server. Should you need to do this, contact your Sun sales representative. -
Page 105: Adding Or Changing Internal Components
4. Replace the zip tie on the new system. 5. Power on the new system (see Chapter 4). Caution – Never remove the system configuration card when the server is booting or running Solaris. Power the server off or down to standby mode before removing or inserting the system configuration card. -
Page 106: Figure 8-2 Using The Disposable Antistatic Wrist Strap Supplied With The System
Server That Is In Use If the system is currently in use and you need to open it to install a component: 1. Shut down the Solaris environment from the console. Sun Fire V100 Server User’s Guide • December 2001... -
Page 107: To Remove The Top Cover
To Remove the Top Cover If the Sun Fire V100 server is not in use, go straight to step 1. If the server is already in use, see “To Change Components In a Sun Fire V100 Server That Is In Use” on page 88. -
Page 108: To Replace The Top Cover
Note – When the cover is in position, the arrows do not line up; the arrow on the cover is further towards the bezel than the arrow on the server body. Sun Fire V100 Server User’s Guide • December 2001... -
Page 109: Memory Installation And Removal
To Install and Remove Memory If the server is not in use, go straight to Step 1. If the server is already in use, see “To Change Components In a Sun Fire V100 Server That Is In Use” on page 88. -
Page 110: Figure 8-6 Installing Memory Into A Socket On The System Board
The server can accept two hard disk drives, which are numbered 0 and 1. To Install a Hard Disk Drive If the Sun Fire V100 server is not in use, go straight to Step 1. Sun Fire V100 Server User’s Guide • December 2001... -
Page 111: Figure 8-7 Removing The Hdd Placeholder
If the server is already in use, see “To Change Components In a Sun Fire V100 Server That Is In Use” on page 88. 1. Place the unit on an ESD surface and attach an antistatic wrist strap (see FIGURE 8-2 2. -
Page 112: Figure 8-8 Installing A Hard Disk Drive
To Remove a Hard Disk Drive If the server is not in use, go straight to Step 1. If the server is already in use, see “To Change Components In a Sun Fire V100 Server That Is In Use” on page 88. - Page 113 4. Unfasten the hard disk drive’s handle from the two clips securing it. 5. Slide the hard disk drive until it is free from the clips on the base of the server. 6. Lift the hard disk drive up and out of the server. Chapter 8 Removing and Replacing Components...
- Page 114 Sun Fire V100 Server User’s Guide • December 2001...
-
Page 115: Reinstalling The Solaris Operating Environment
Reinstalling the Solaris Operating Environment This chapter explains how to reinstall the Solaris operating environment onto the Sun Fire V100 server. It contains the following sections: “Reinstalling the Solaris Operating Environment” on page 98 “Reinstalling the Lights-Out Management Software” on page 98... -
Page 116: Reinstalling The Solaris Operating Environment
Reinstalling the Solaris Operating Environment The Sun Fire V100 server is supplied with the Solaris operating environment preinstalled. If for any reason you decide to reinstall the Solaris operating environment (for example, if you need to repartition your root disk or recover from a failure) follow the instructions in the Solaris Installation Guide (806-0955-10) and the Solaris Advanced Installation Guide (806-0957-10). -
Page 117: Troubleshooting
C H A P T E R Troubleshooting This chapter describes the diagnostic tools you can use with the Sun Fire V100 server, lists some of the problems you might encounter when setting up or using a server, and gives information to help fix those problems. The information is contained in the following sections: “Diagnostic Tools”... -
Page 118: Diagnostic Tools
If POST detects an error, it displays an error message describing the failure. A sample error message is shown below: Power On Self Test Failed. Cause: DIMM U0702 or System Board Sun Fire V100 Server User’s Guide • December 2001... -
Page 119: Openboot Diagnostics
OpenBoot Diagnostics Like POST diagnostics, OpenBoot Diagnostics can be run if the diag-switch? variable is set to true. You can also run OpenBoot Diagnostics interactively and select which tests you want it to perform. To do so, follow the steps below from the ok prompt. 1. -
Page 120: Table 10-1 Open Boot Diagnostics Tests
Set the testing level by using the OpenBoot PROM variable called diag-level. The default setting for diag-level is min. The test level is set from the ok prompt. To set the test level: Sun Fire V100 Server User’s Guide • December 2001 tests the LOM device tests the secondary Ethernet port... -
Page 121: Sunvts
Type: ok setenv diag-level value SunVTS SunVTS, the Sun Validation and Test Suite, is an online diagnostics tool which you can use to verify the configuration and functionality of hardware controllers, devices and platforms. It runs in the Solaris 8 operating environment using any of the following: command line interface serial (tty) interface... -
Page 122: Installing Sunvts
SunVTS software is /opt/SUNWvts. Using SunVTS Software To test a Sun Fire V100 server by running a SunVTS session from a workstation using the SunVTS graphical user interface, follow the procedure below. 1. Use the xhost command to give the remote server access to the local display. -
Page 123: Problems You Might Encounter
Problems You Might Encounter This section outlines some particular problems you might encounter when setting up and using the Sun Fire V100 server and, where applicable, tells you where to look in the Sun Fire V100 Server User’s Guide for more information. -
Page 124: Cannot Display The Lom> Prompt Using The #. Escape Sequence
Fire V100 server. Check that the card is correctly inserted by pressing it firmly home. If the server still will not boot, you may need to replace the system configuration card. See your Sun sales representative. Sun Fire V100 Server User’s Guide • December 2001... -
Page 125: Ide Controller Failure
IDE Controller Failure The probe-IDE diagnostic transmits an inquiry command to internal and external IDE devices connected to the system’s on-board IDE interface. If the IDE device is connected and active, the target address, unit number, device type, and manufacturer name are displayed. Initialize the probe-IDE diagnostic by typing the probe-ide command at the ok prompt. -
Page 126: Frequently Asked Questions
500MHz 2 GB (4 * 512MB) What software is preinstalled? The Sun Fire V100 server comes preinstalled with the Solaris operating environment (64 bit) including LOM. For more information, see “Preinstalled Software” on page 3. Can I install a 32-bit kernel? The servers will only support a 64 bit kernel. - Page 127 You can order a new card from your local Sun Customer Solution Centre. Is there a DC version of the Sun Fire V100 server? There are no plans to introduce a DC version of the Sun Fire V100 server. Chapter 10...
- Page 128 Because the Sun Fire V100 server has been designed as a rack-mount compute element, there is no keyboard, mouse or parallel port on the Sun Fire V100 server. To manage the server, you have to connect to the console (ttya) port and manage via a console connection.
- Page 129 Will the server need a null-modem cable to connect to the console port? No. Because the Sun Fire V100 server requires the use of console port, Sun has designed the server not to need a null-modem cable. All you need to connect a Sun Fire V100 server to a termserver is a standard Category 5 cable.
- Page 130 Sun Fire V100 Server User’s Guide • December 2001...
- Page 131 IV Appendixes PA RT...
-
Page 133: Physical And Environmental Specifications
A P P E N D I X Physical and Environmental Specifications In the following sections, this appendix gives the physical dimensions of the Sun Fire V100 server and describes the conditions in which the server is capable of operating: “Physical Specifications”... -
Page 134: Acoustic Noise Generated
The system generates less than 60 dBA at a distance of 23.67 inches (600 mm) and a height of 59.17 inches (1500 mm) while operating in an ambient temperature of 77˚F (25˚C). Sun Fire V100 Server User’s Guide • December 2001 U.S. 1.72 in. -
Page 135: Environmental Compliance Information
Environmental Compliance Information Electromagnetic compatibility Immunity: The server conforms to EN55024. Emissions: The server conforms to EN55022 Class A and FCC Class A. Safety The system conforms to UL 1950 (3rd edition), EN60950 Operating Power Statistics Operating Power Statistics TABLE A-2 Maximum operating current Typical operating current Maximum in-rush... -
Page 136: Calculating Power Consumption
Note – Power from the standby output is available whenever input power is connected. Calculating Power Consumption A Sun Fire V100 server containing two disk drives has an estimated current requirement of approximately 1 amp. shows the estimated power consumed by the individual components in a TABLE A-3 fully powered system. - Page 137 A P P E N D I X Configuring LOM Driver This appendix describes the parameters that you can use to configure the LOM driver, and contains the following sections: “The LOM Device Driver and Script Files” on page 120 “Configuring the LOM Device Driver”...
- Page 138 This appendix describes the driver parameters you can set in the lom.conf configuration file. Some of these parameters are configurable by means of the LOM- specific Solaris commands described in Chapter 6. Sun Fire V100 Server User’s Guide • December 2001...
-
Page 139: Configuring The Lom Device Driver
Configuring the LOM Device Driver The full list of parameters you can set in this file is given in LOM Configuration File Parameters TABLE B-1 Field wdog_reset= wdog_alarm3= serial_events= TABLE B-1 Format Default Effect Boolean Causes LOM to reset the server 0=FALSE after a watchdog timeout. - Page 140 TABLE B-1 Field disable_wdog_on_break= disable_wdog_on_panic= faulty_voltage_shutdown= enclosure_warning_temp= over_temperature_shutdown= enclosure_shutdown_temp= serial_security= Sun Fire V100 Server User’s Guide • December 2001 Format Default Effect Boolean Causes LOM to disable its 0=FALSE watchdog if it detects a break 1=TRUE signal on the Serial A/LOM port.
- Page 141 LOM Configuration File Parameters (Continued) TABLE B-1 Field serial_timeout= serial_return= reporting_level= Each parameter must be on a separate line and must be followed by an equals sign (=) and a value, without spaces. Where the format is Boolean, 1 means true and 0 means false.
- Page 142 Sun Fire V100 Server User’s Guide • December 2001...
- Page 143 Index acoustic noise, 116 alarms, setting, 62, 76 altitude, 116 anti-static wrist strap, 88 automatic server restart, 73 back panel LEDs, 82 BTU rating, 117 cables, 17 Cisco L2511 Terminal Server, connecting, 25 console connection ASCII terminal, 24 setting up, 20 Sun workstation, 24 terminal server, 25 cooling (heat dissipation), 118...
- Page 144 LOMlite2 device, 61 upgrading firmware, 78 version number, 63 LOMlite2 interface backwards compatibility, 78 escape sequence, 77 Index-126 Sun Fire V100 Server User’s Guide • December 2001 memory installing and removing, 91 part number, 4 monitoring the system, See Lights-Out Management (LOM)
- Page 145 quickstart, 5 remote reset, 47 removal hard disk drives, 92 memory, 91 system top cover, 93 replacing the server, 86 resetting remotely, 47 safety, 117 SCC (system configuration card), 86 security, 8 LOMlite2 named user accounts, 54 to 58 Serial A/LOM port data subject to interruption by LOMlite2, 77 serial A/LOM port, 35, 37 dedicating to the LOMlite2 device, 60...
- Page 146 Index-128 Sun Fire V100 Server User’s Guide • December 2001...
Need help?
Do you have a question about the Sun Fire V100 and is the answer not in the manual?
Questions and answers
