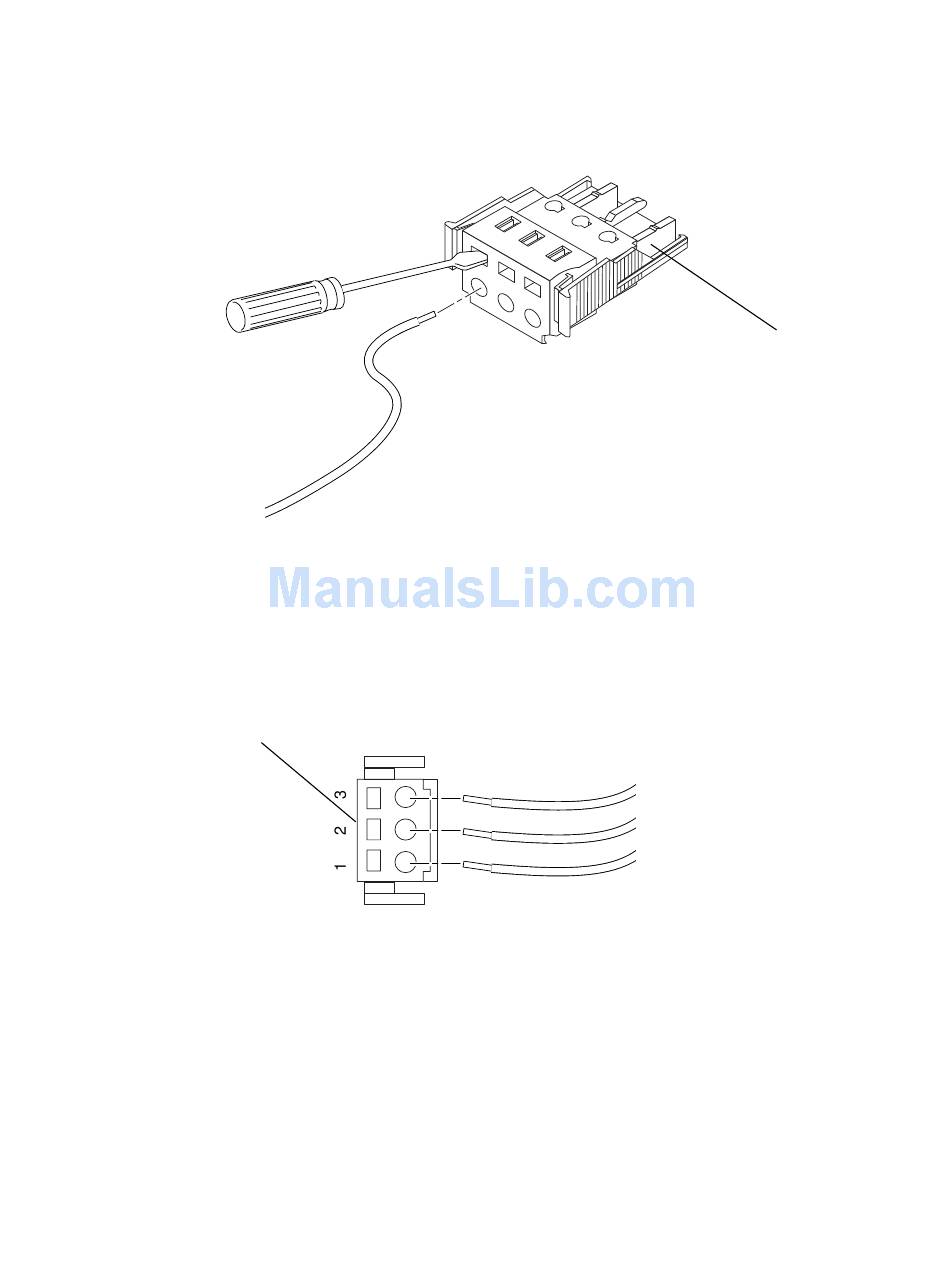

Opening the DC Connector Cage Clamp (Screwdriver Method)
FIGURE 3-4
7. Feed the exposed section of the appropriate wire into that hole in the DC
connector.
shows which wires should be inserted into each hole in the DC connector.
FIGURE 3-5
Top of connector
Assembling the DC Input Power Cable
FIGURE 3-5
8. Repeat Step 6 and Step 7 for the other two wires to complete the assembly of the
DC input power cable.
9. Repeat Step 4 through Step 8 to create a second DC input power cable.
If you need to remove a wire from the DC connector, insert the cage clamp operating
lever or a small screwdriver into the slot directly above the wire and press down
( and
FIGURE 3-3 FIGURE 3-4
).
Top of connector
–48V Return
Ground
–48V
Chapter 3 Using DC Power 3-5
