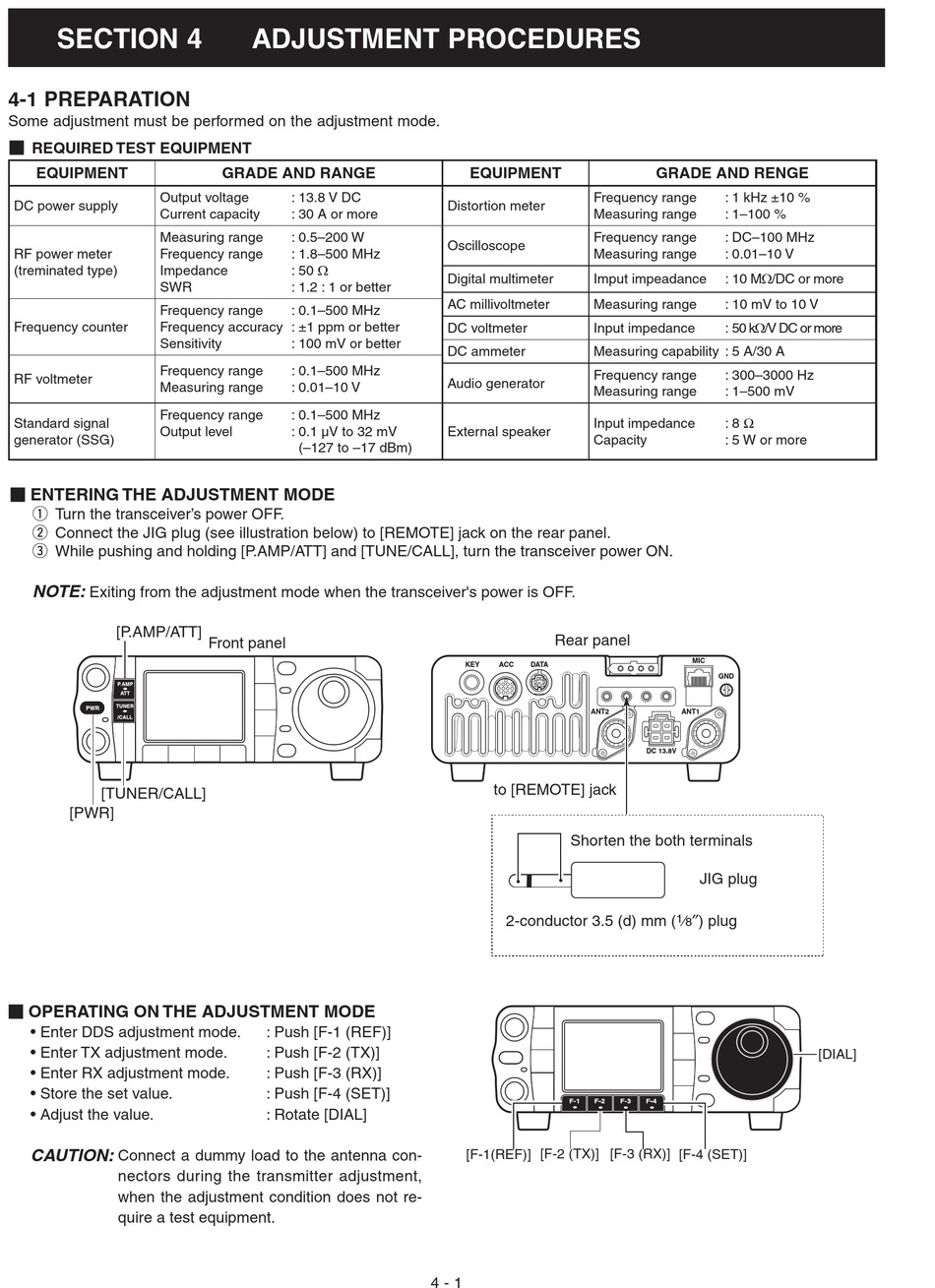

SECTION 4
4-1 PREPARATION
Some adjustment must be performed on the adjustment mode.
M REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
Measuring range
RF power meter
Frequency range
(treminated type)
Impedance
SWR
Frequency range
Frequency counter
Frequency accuracy : ±1 ppm or better
Sensitivity
Frequency range
RF voltmeter
Measuring range
Frequency range
Standard signal
Output level
generator (SSG)
M
ENTERING THE ADJUSTMENT MODE
q Turn the transceiver's power OFF.
w Connect the JIG plug (see illustration below) to [REMOTE] jack on the rear panel.
e While pushing and holding [P.AMP/ATT] and [TUNE/CALL], turn the transceiver power ON.
NOTE:
Exiting from the adjustment mode when the transceiver's power is OFF.
[P.AMP/ATT]
[TUNER/CALL]
[PWR]
M
OPERATING ON THE ADJUSTMENT MODE
• Enter DDS adjustment mode.
• Enter TX adjustment mode.
• Enter RX adjustment mode.
• Store the set value.
• Adjust the value.
CAUTION:
Connect a dummy load to the antenna con-
nectors during the transmitter adjustment,
when the adjustment condition does not re-
quire a test equipment.
ADJUSTMENT PROCEDURES
GRADE AND RANGE
: 13.8 V DC
: 30 A or more
: 0.5–200 W
: 1.8–500 MHz
: 50 Ω
: 1.2 : 1 or better
: 0.1–500 MHz
: 100 mV or better
: 0.1–500 MHz
: 0.01–10 V
: 0.1–500 MHz
: 0.1 µV to 32 mV
(–127 to –17 dBm)
Front panel
: Push [F-1 (REF)]
: Push [F-2 (TX)]
: Push [F-3 (RX)]
: Push [F-4 (SET)]
: Rotate [DIAL]
EQUIPMENT
Frequency range
Distortion meter
Measuring range
Frequency range
Oscilloscope
Measuring range
Digital multimeter
Imput impeadance
AC millivoltmeter
Measuring range
DC voltmeter
Input impedance
DC ammeter
Measuring capability : 5 A/30 A
Frequency range
Audio generator
Measuring range
Input impedance
External speaker
Capacity
Rear panel
KEY
ACC
DATA
ANT2
to [REMOTE] jack
Shorten the both terminals
2-conductor 3.5 (d) mm (
[F-2 (TX)]
[F-1(REF)]
4 - 1
GRADE AND RENGE
: 1 kHz ±10 %
: 1–100 %
: DC–100 MHz
: 0.01–10 V
: 10 MΩ/DC or more
: 10 mV to 10 V
: 50 kΩ/V DC or more
: 300–3000 Hz
: 1–500 mV
: 8 Ω
: 5 W or more
MIC
GND
ANT1
DC 13.8V
JIG plug
") plug
1
⁄
8
[F-3 (RX)]
[F-4 (SET)]
[DIAL]
